Electronic toll collection (ETC) antenna component description - GF82.88-P-5001SXJ
MODEL 221.0 /1 with CODE (498) Japan version up to Model Year 8
MODEL 216.3 with CODE (498) Japan version up to Model Year 8

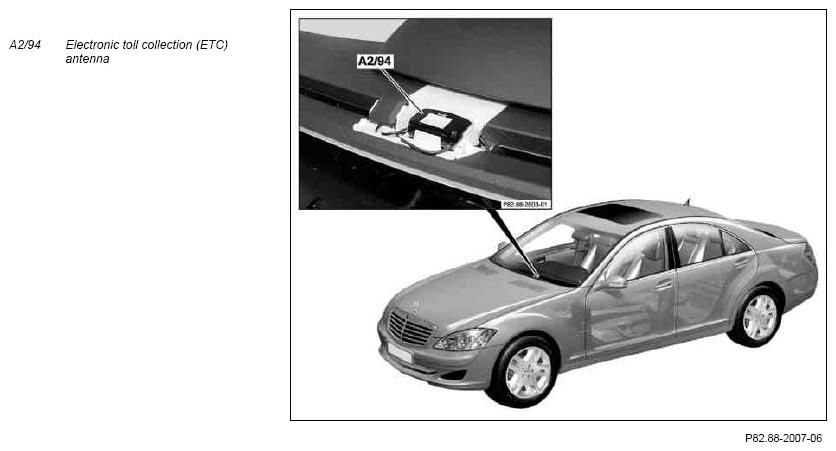

Illustrated on model 221
Location
The electronic toll collection (ETC) antenna is installed on the dashboard behind the windshield on a bracket.
Tasks
The electronic toll collection (ETC) antenna transmits and receives the Electronic Toll Collection System (ETC) signals to/from the toll collection center that are processed by the electronic toll collection (ETC) control unit (A50/3).
