| A0 |
Explanation of color codes |
56L |

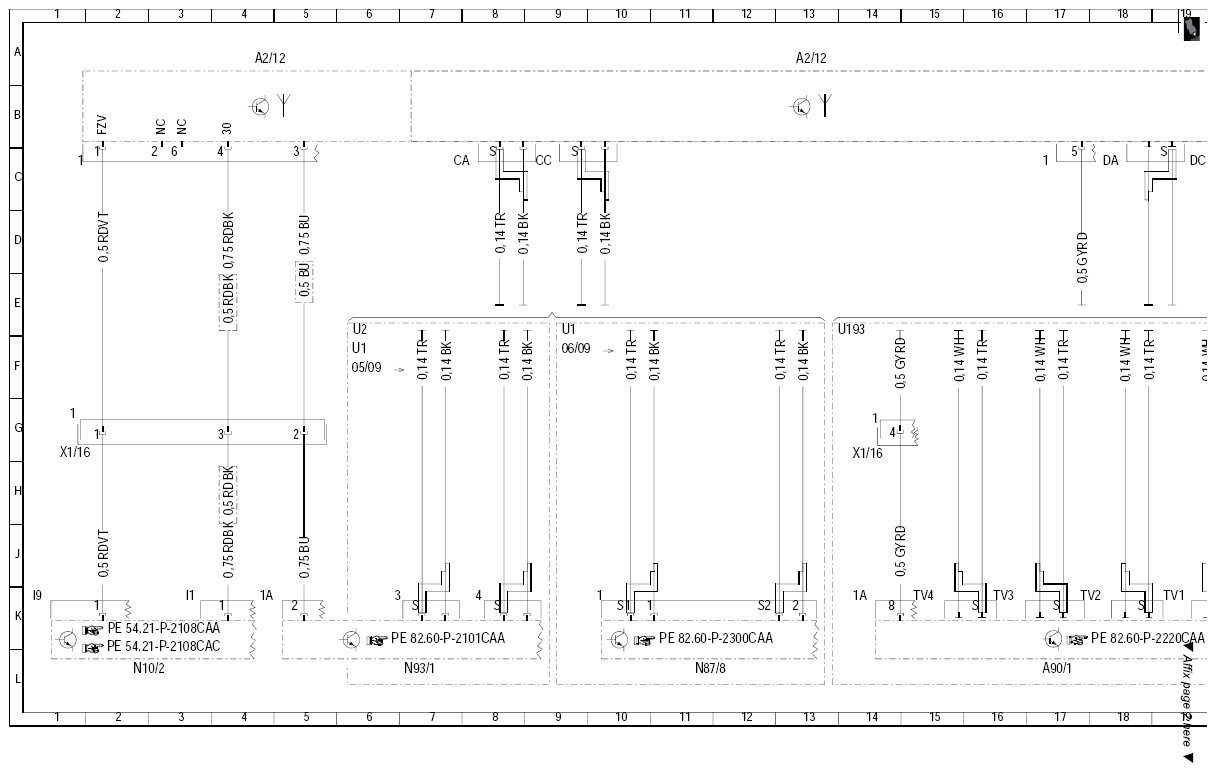

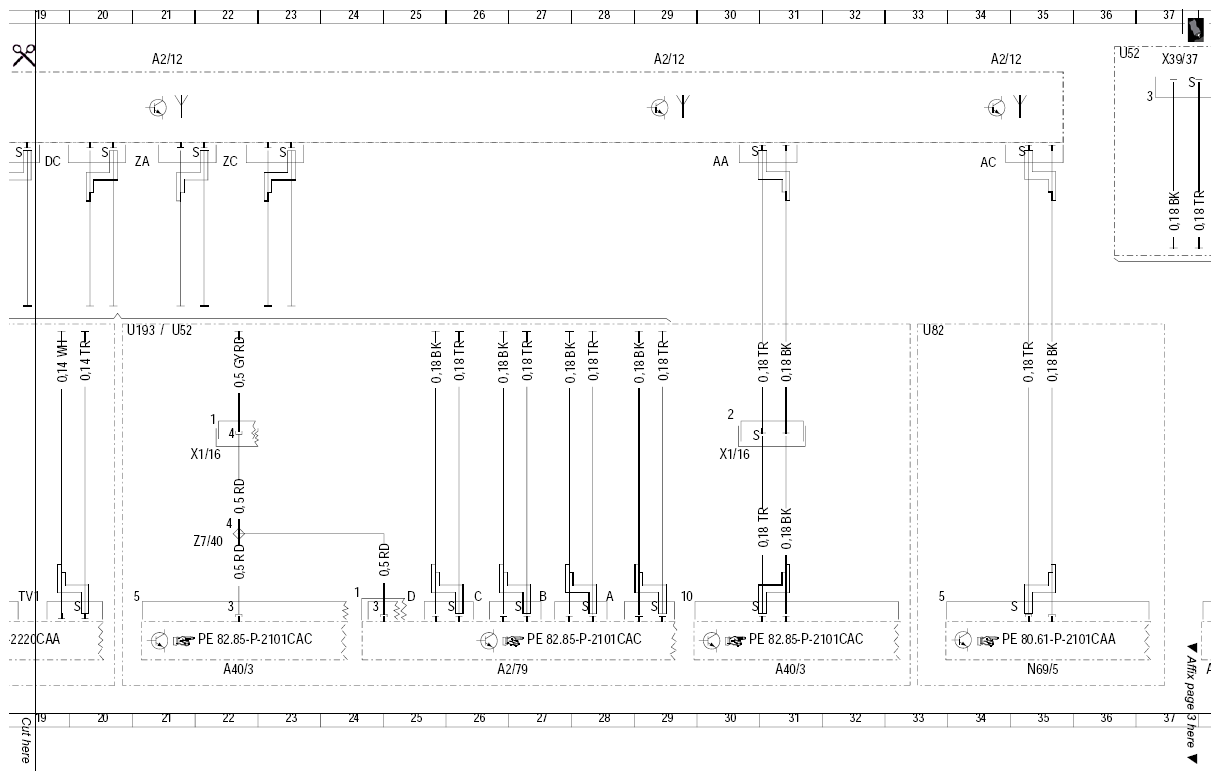

| A2/12 |
Rear window antenna amplifier module |
4A |
| A2/12 |
Rear window antenna amplifier module |
12A |
| A2/12 |
Rear window antenna amplifier module |
20A |
| A2/12 |
Rear window antenna amplifier module |
28A |
| A2/27 |
Stationary heater antenna (Telestart) |
42L |
| A2/27x1 |
Stationary heater antenna connector (Telestart) |
42J |
| A2/49 |
Telephone and GPS antenna |
33L |
| A2/49a1 |
CTEL antenna |
32L |
| A2/49a2 |
GPS antenna |
34L |
| A2/79 |
TV antenna selector |
21L |

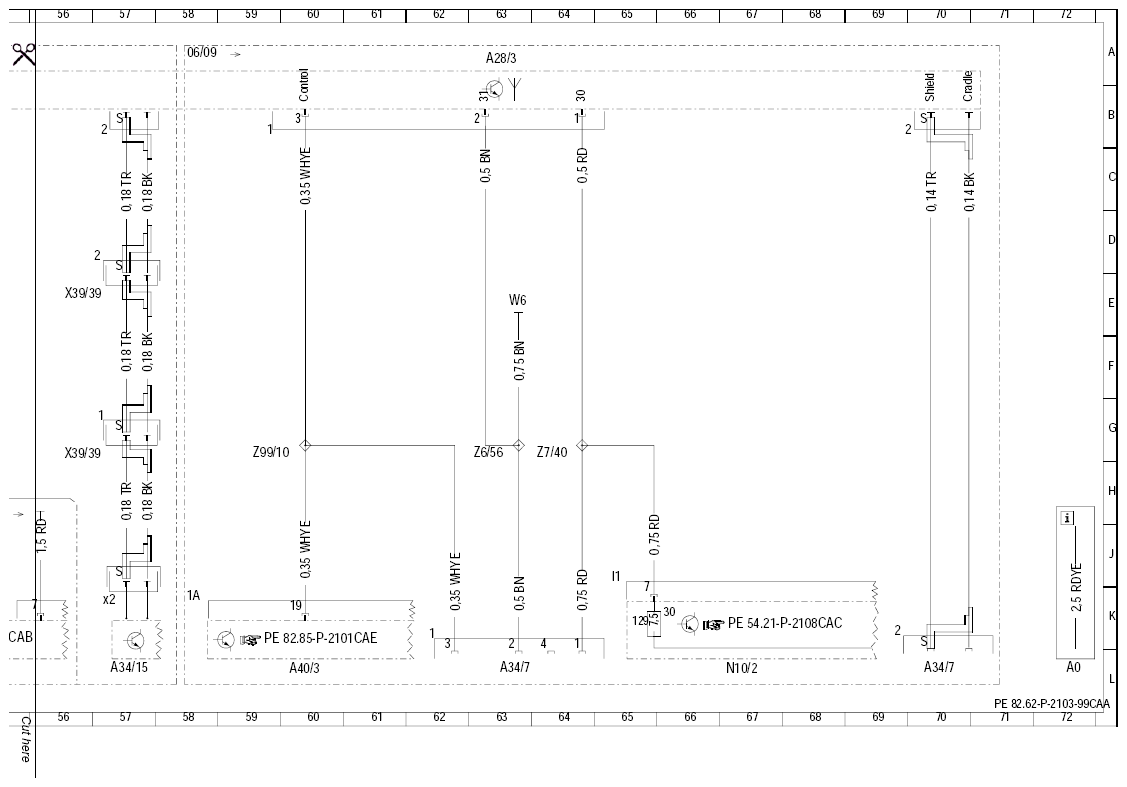

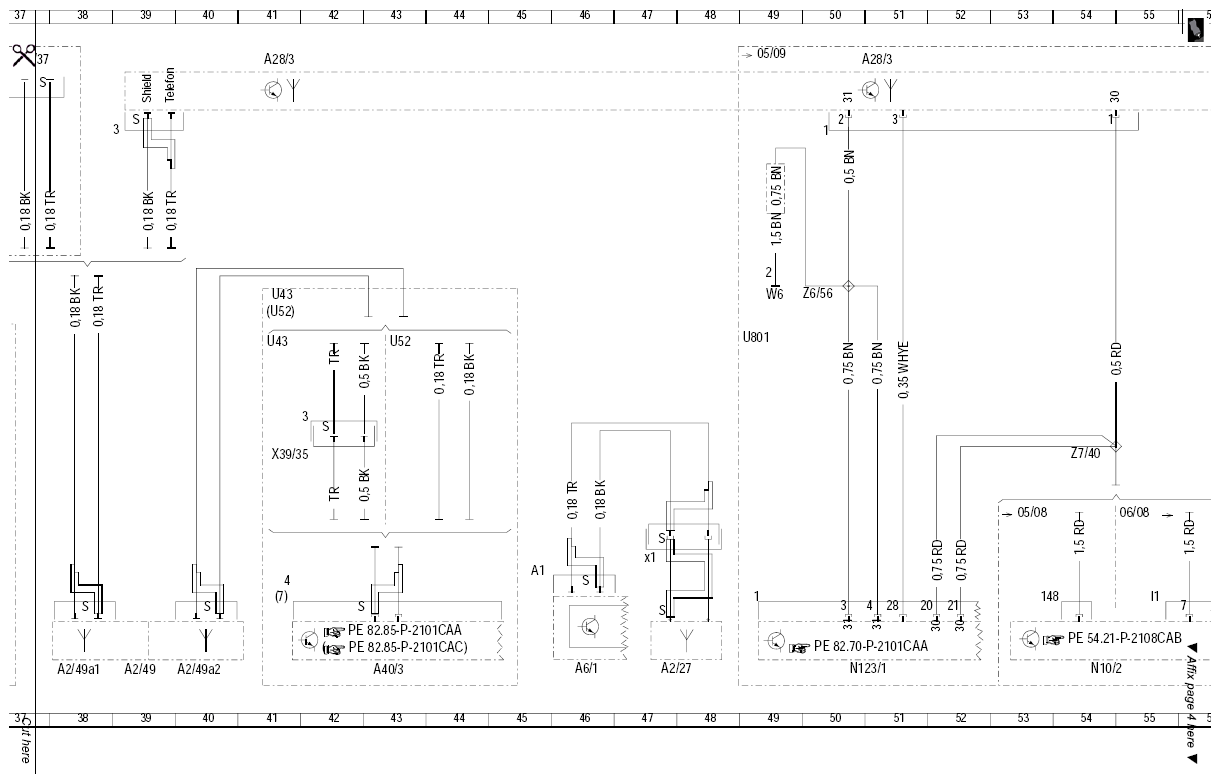

| A28/3 |
E-net compensator |
36A |
| A28/3 |
E-net compensator |
44A |
| A28/3 |
E-net compensator |
51A |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
52L |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
52K |
| A40/3 |
COMAND control unit |
17L |
| A40/3 |
COMAND control unit |
25L |
| A40/3 |
COMAND control unit |
37L |
| A6/1 |
STH radio remote control receiver |
41L |
| A90/1 |
TV combination tuner (analog/digital) |
11L |
| N10/2 |
Rear SAM control module with fuse and relay module |
2L |
| N10/2 |
Rear SAM control module with fuse and relay module |
49L |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
45L |
| N69/5 |
Keyless Go control module |
29L |
| N93/1 |
Audio tuner control unit |
6L |
| U193 |
Valid for TV and Video |
8F |
| U193 |
Valid for TV and Video |
15F |
| U43 |
Valid for ECE |
36F |
| U43 |
Valid for ECE |
36E |
| U52 |
Valid for {{Japan}} |
16F |
| U52 |
Valid for {{Japan}} |
31A |
| U52 |
Valid for {{Japan}} |
36E |
| U52 |
Valid for {{Japan}} |
38F |
| U801 |
Valid for UPCI [UHI] (Universal Portable CTEL Interface) |
43F |
| U82 |
Valid for keyless go |
28F |
| W6 |
Ground (left wheel well in trunk) |
43E |
| X1/16 |
Roof antenna connector |
1H |
| X1/16 |
Roof antenna connector |
8H |
| X1/16 |
Roof antenna connector |
16H |
| X1/16 |
Roof antenna connector |
25H |
| X39/35 |
GPS antenna connector |
36H |
| X39/37 |
CTEL separation point |
32A |
| X39/39 |
Handy connector |
51H |
| X39/39 |
Handy connector |
51E |
| Z6/56 |
Circuit 31 connector sleeve |
44E |
| Z7/40 |
Circuit 30 connector sleeve |
16J |
| Z7/40 |
Circuit 30 connector sleeve |
48H |
