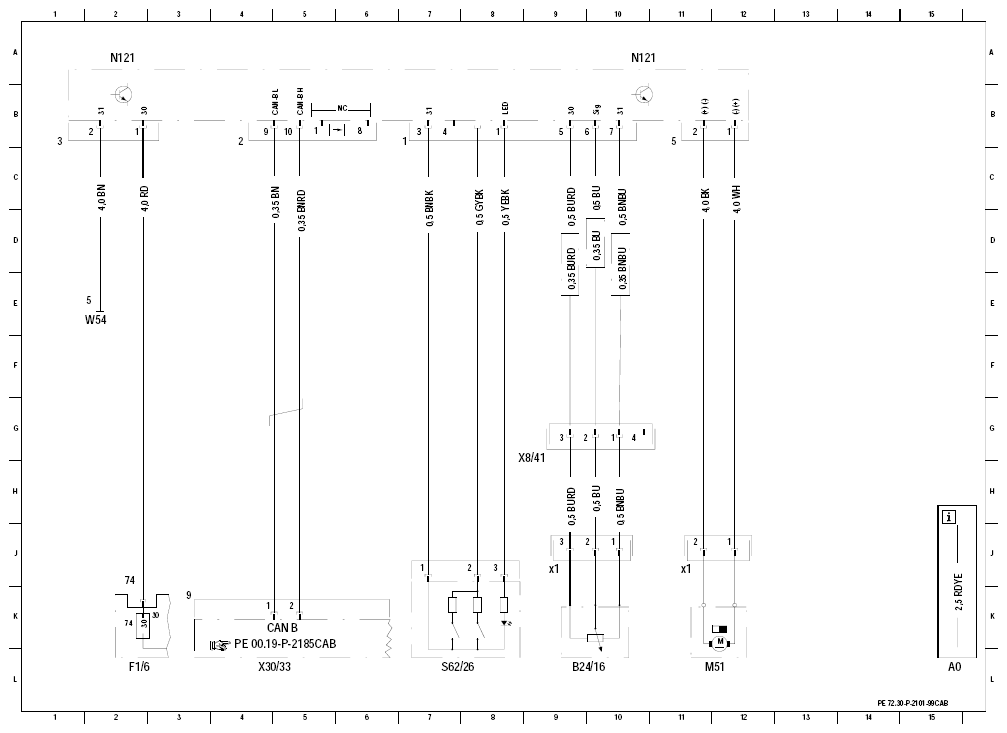

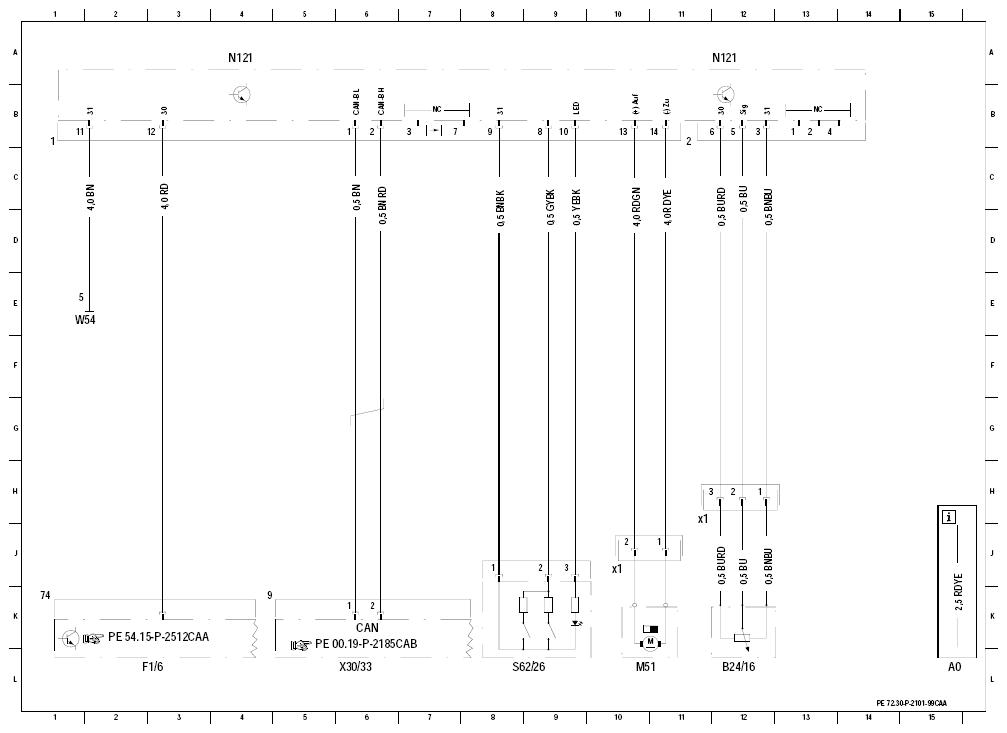

Wiring diagram for remote trunk closing control unit - PE72.30-P-2101-99CAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15 L |
| B24/16 | Trunk lid position sensor | 12 L |
| B24/16x1 | Trunk lid position sensor connector | 11 J |
| F1/6 | Right instrument panel fuse box | 2 L |
| M51 | TLC [HDS] hydraulic pump | 10 L |
| M51x1 | TLC [HDS] hydraulic pump connector | 10 J |
| N121 | TLC [HDS] control module | 4 A |
| N121 | TLC [HDS] control module | 11 A |
| S62/26 | TLC [HDS] button | 8 L |
| W54 | Ground, wheel well rear right | 1 E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 6 L |
