Fuse assignment of fuse and relay box in left engine compartment - GF54.15-P-1256-03SX

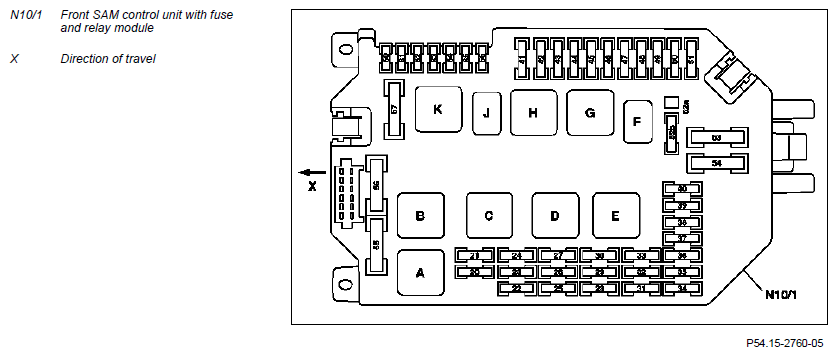

Fig 1: Identifying Front SAM Control Unit With Fuse And Relay Module
G07638186Courtesy of MERCEDES-BENZ USA
Bay Fuse Terminal Cable ID (fused line) Fused function Fuse rating in amperes (A)
20 N10/1f20 30 0.75 RD Valid for engine 642:
  • CDI control unit (N3/9)
 10
        Valid for engines 272, 273:
  • ME-SFI [ME] control unit (N3/10/)

      1.0 RD Valid for engine 275:
  • ME-SFI [ME] control unit (N3/10/)

21 N10/1f21 87M1 2.5 RDBU Valid for engines 272, 273:
  • Terminal 87 M1i connector sleeve (Z7/38)
 20
      RDGN 1.5 Valid for engine 275:
  • Terminal 87 M1i connector sleeve (Z7/38)

22 N10/1f22 87M4 2.5 RDGY Valid for engines 272, 273:
  • Terminal 87 connector sleeve (Z7/5)
 15
23 N10/1f23 87M2 1.5 RDGN
  • Terminal 87 connector sleeve (Z7/5)
 20
      RDGN 1.5 Valid for engine 275 (model 216):
  • Terminal 87 M1i connector sleeve (Z7/38)

      RDGN 2.5 Valid for engine 273 (model 216):
  • Terminal 87 M2e connector sleeve (Z7/36)

      RDGN 2.5 Valid for engine 272, 273 (model 221):
  • Terminal 87M2i connector sleeve (Z7/39)

      RDGN 2.5 Valid for engine 642:
  • Terminal 87 connector sleeve (Z7/5)

24 N10/1f24 87M3 2.5 RDBK Valid for engines 272, 273:
  • Terminal 87M1e connector sleeve (Z7/35)
 25
      2.5 RDYE Valid for engine 642:
  • CDI control unit (N3/9)

25 N10/1f25 30 0.5 GNYE
  • Instrument cluster (A1)
 7.5
26 N10/1f26 15 1.5 PKBU
  • Left front lamp unit (E1)
 10
27 N10/1f27 15 1.5 PKGN
  • Right front lamp unit (E2)
 10
28 N10/1f28 15R 0.75 RDGN Valid for engine 275:
  • ETC [EGS] control unit (N15/3/)
 7.5
      1.0 RDGN Not valid for engine 275 (model 221):
  • Fully integrated transmission control (VGS) control unit (Y3/8n4)

29 N10/1f29 15 0.5 PKRD
  • Rear SAM control unit with fuse and relay module (N10/2/)
 5
30 N10/1f30 15 0.5 PKRD Valid for engine 642:
  • CDI control unit (N3/9)
 7.5
      0.75 RD Valid for engines 272, 273:
  • ME-SFI [ME] control unit (N3/10/)

      1.0 RD Valid for engine 275:
  • ME-SFI [ME] control unit (N3/10/)
  • Fuel pump control unit (N118)

31 N10/1f31 87F - - -
32 N10/1f32 87F - - -
33 N10/1f33 15R - - -
34 N10/1f34 87F - - -
35 N10/1f35 87F 0.5 RDYE
  • Electric parking brake controller unit (A13)
 5
36 N10/1f36 30 0.75 RDGN
  • Data link connector (X11/4) (Pin 16)
 10
37 N10/1f37 30 0.75 RD
  • For EIS control unit (N73)
 7.5
38 N10/1f38 30 0.75 RD
  • Central gateway control unit (N93)
 7.5
39 N10/1f39 30 0.75 RDYE
  • Instrument cluster (A1)
 7.5
40 N10/1f40 30 0.75RDBK
  • Upper control panel control unit (N72/1/)
 7.5
41 N10/1f41 15R RDGN 2.5
  • Slave wiper motor (M6/7)
 30
42 N10/1f42 15R 2.5 RDBK
  • Master wiper motor (M6/6)
 30
43 N10/1f43 15R 1.5 BKWH
  • Front cigar lighter with ashtray illumination (R3)
 15
44 N10/1f44 15R - - -
45 N10/1f45 15R - - -
46 N10/1f46 30 1.5 RD Valid for model 221 with code (487) Active Body Control (ABC), model 216:
  • ABC control unit (N51/2/)
 15
      1.5 RDWH Valid for model 221 without code (487) Active Body Control (ABC):
  • AIRmatic with ADS control unit (N51)

47 N10/1f47 30 -
  • Front SAM control unit with fuse and relay module (N10/1/)
 15
48 N10/1f48 30 -
  • Front SAM control unit with fuse and relay module (N10/1/)
 15
49 N10/1f49 30 0.75 RD
  • Steering column module (N80)
 10
50 N10/1f50 30 1.5 RDWH
  • AAC [KLA] control unit (N22/1)
 15
51 N10/1f51 30 0.5 RDBU Valid for model 216:
  • COMAND display (A40/8)
 7.5
    30 0.75 RDBU Valid for model 221:
  • COMAND display (A40/8)
 7.5
52 A N10/1f52a 15 - - -
52 B N10/1f52b 15 1.5 YE
  • Left fanfare horn (H2)
  • Right fanfare horn (H2/1)
 15
53 N10/1f53 30 - - -
54 N10/1f54 30 4.0 RD
  • AC air recirculation unit (A32)
 40
55 N10/1f55 30 4.0 RDWH Valid for engines 272, 273:
  • Electric air pump (M33)
 60
56 N10/1f56 30 4.0 RDBK Valid for model 221 without code (487) Active Body Control (ABC):
  • AIRmatic compressor unit (A9/1)
 40
57 N10/1f57 30 2.5 RDBK
  • Wiper park position heater (R2/10)
 40
60 N10/1f60 87F - - -
61 N10/1f61 15R 0.75 PKGN
  • Restraint systems control unit (N2/7) (model 216) Restraint systems control unit (N2/7) (model 221)
  • 7.5
 10
62 N10/1f62 87F 0.5 RD Valid for code (610) Night view assist:
  • Night View Assist control unit (N101)
 5
63 N10/1f63 15 - - -
64 N10/1f64 15R 0.75 GNYE Valid for model 221 as of 1.9.06:
  • Driver NECK-PRO head restraint solenoid (Y24/12)
  • Front passenger NECK-PRO head restraint solenoid (Y24/13)
 7.5
65 N10/1f65 15 - - -
66 N10/1f66 87F 0.75 RDGN Valid for code (219) Distronic (DTR) or code (233) Distronic Plus:
  • DTR controller unit (A89)
 7.5
