Fuse and relay box, as-built configuration - GF54.15-P-0800LE
MODEL 216.3, 221.0 /1 as of model year 2009 /YoM 08

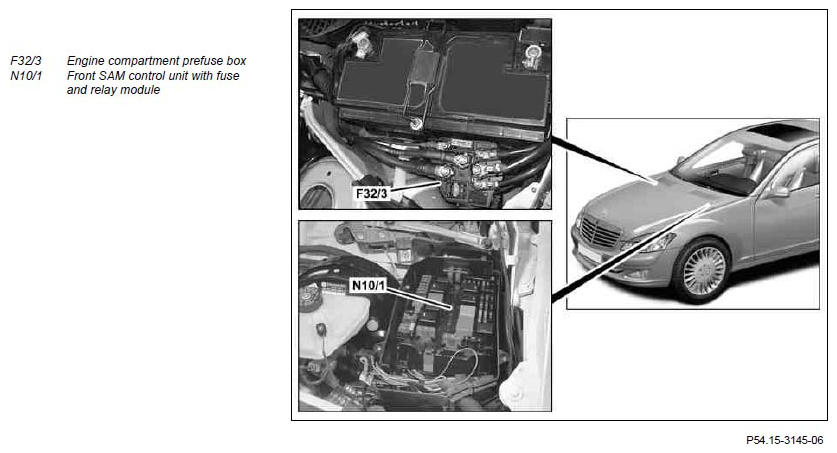

Location in engine compartment, shown on model 221.022

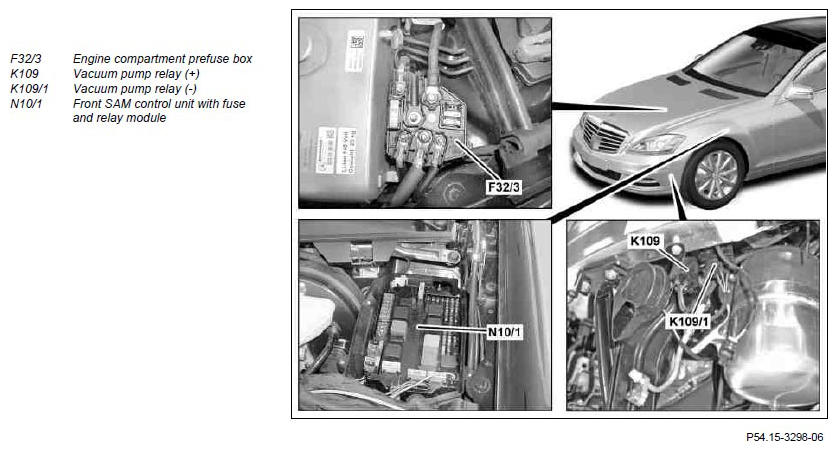

Location in engine compartment, shown on model 221.095

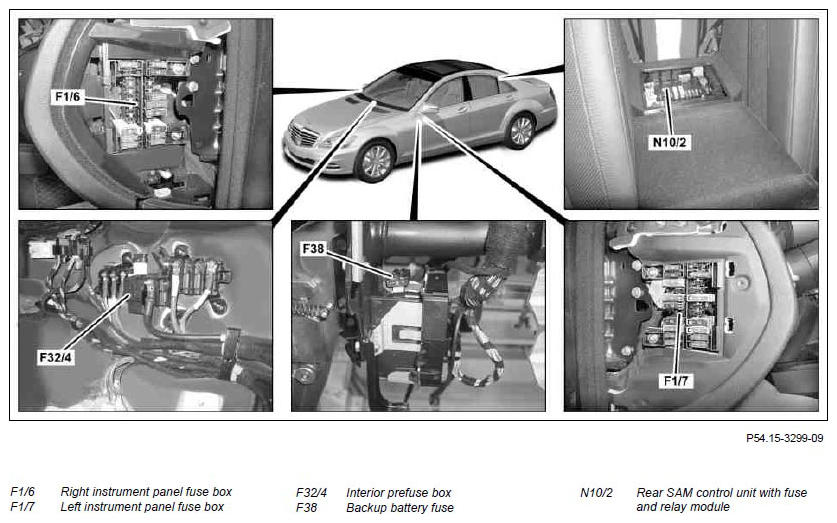

Location in vehicle interior, shown on model 221.0
The backup battery fuse provides protection between the additional battery (G1/7), the EZS control unit (N73) and the front SAM control unit. The fuse rating is 5 amps

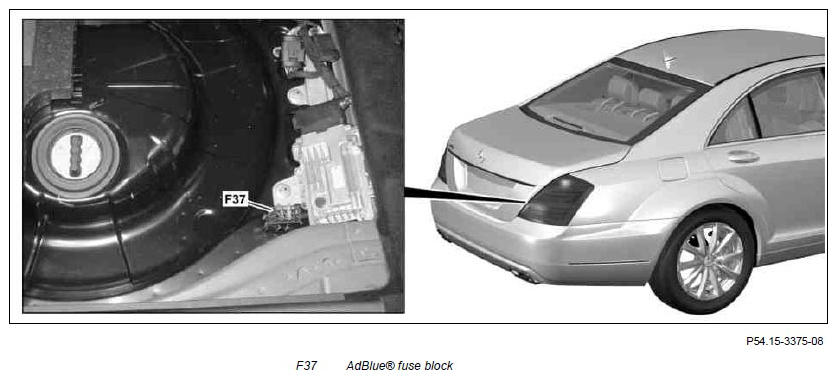

Location in spare wheel well, model 221 with engine 642.8
| Fuse assignment of fuse box in right of cockpit | F1/6 | GF54.15-P-1256-12LE |
| Fuse assignment of fuse box in left of cockpit | F1/7 | GF54.15-P-1256-13LE |
| Fuse assignment of prefuse box in engine compartment | F32/3 | GF54.15-P-1256-25LE |
| Fuse assignment on interior prefuse box | F32/4 | GF54.15-P-1256-26LE |
| Fuse assignment of fuse and relay box in left engine compartment | N10/1 | GF54.15-P-1256-03LE |
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03LE |
| Fuse assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1256-06LE |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04LE |
