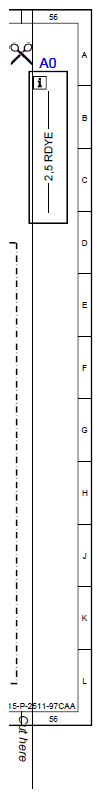

| A0 |
Color code key |
56A |
| A2/30 |
Navigation processor |
37L |
| A40/10 |
SPLITVIEW display |
11L |
| A40/11 |
Multifunction camera |
6L |
| A40/8 |
COMAND display |
10L |
| A40/8 |
COMAND display |
11L |
| A50/3 |
Electronic toll collection (ETC) control unit |
40L |
| Code 238 |
Active Lane Keeping Assist |
5E |
| Code 476 |
Automatic lane detection |
5E |
| Code 513 |
Speed Limit Assist |
5E |
| Code 608 |
Adaptive Highbeam Assist |
5E |
| Code 867 |
SPLITVIEW |
9E |

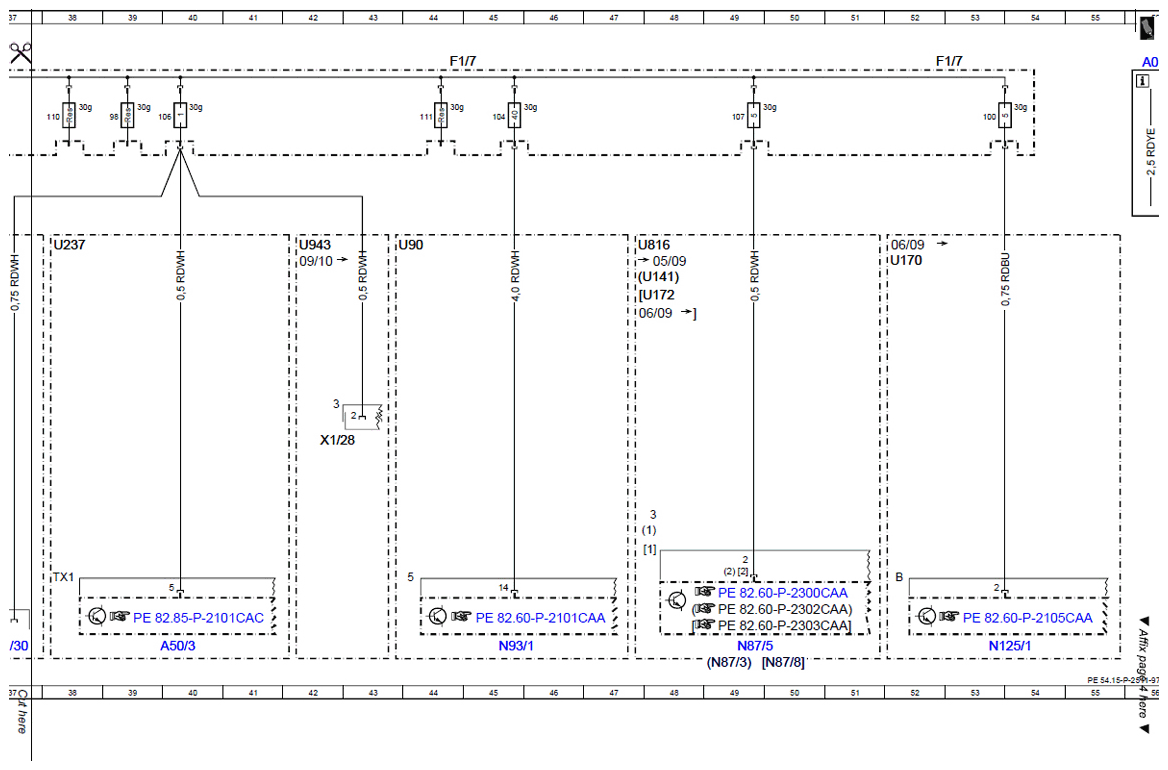

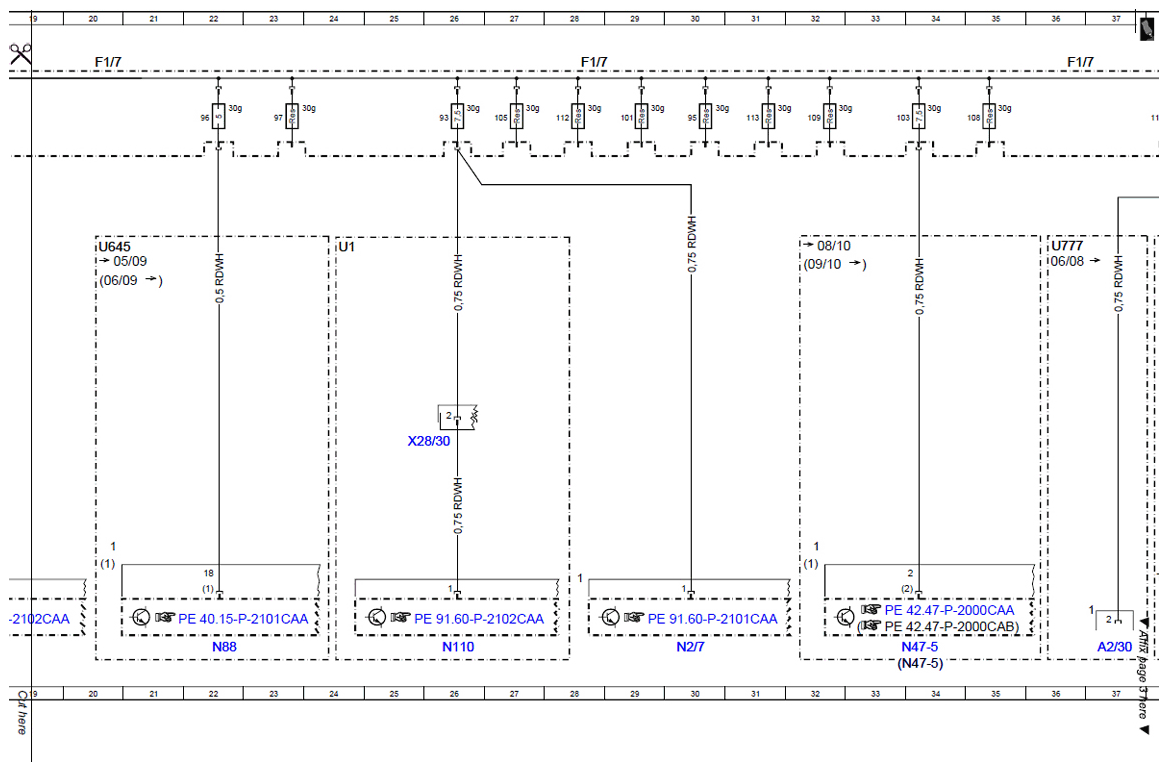

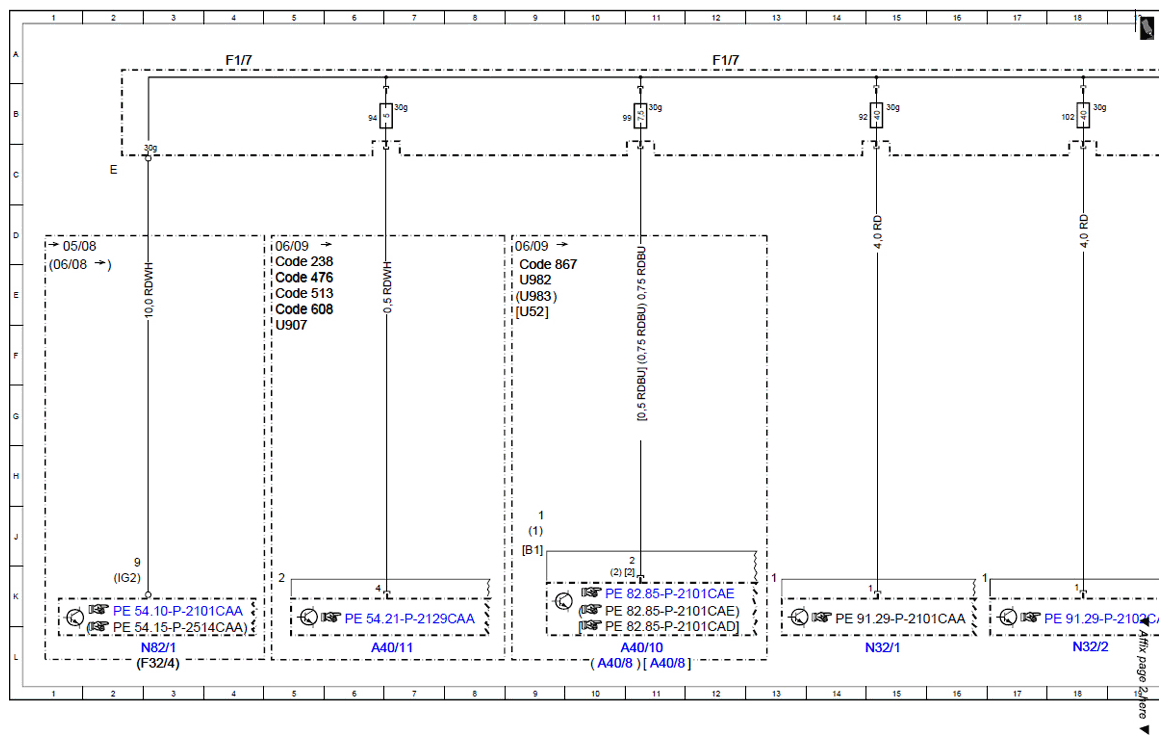

| F1/7 |
Left instrument panel fuse box |
28A |
| F1/7 |
Left instrument panel fuse box |
4A |
| F1/7 |
Left instrument panel fuse box |
12A |
| F1/7 |
Left instrument panel fuse box |
20A |
| F1/7 |
Left instrument panel fuse box |
36A |
| F1/7 |
Left instrument panel fuse box |
44A |
| F1/7 |
Left instrument panel fuse box |
53A |
| F1/7f100 |
Fuse 100 |
53B |
| F1/7f101 |
Fuse 101 |
29B |
| F1/7f102 |
Fuse 102 |
18B |
| F1/7f103 |
Fuse 103 |
33B |
| F1/7f104 |
Fuse 104 |
45B |
| F1/7f105 |
Fuse 105 |
27B |
| F1/7f106 |
Fuse 106 |
39B |
| F1/7f107 |
Fuse 107 |
49B |
| F1/7f108 |
Fuse 108 |
35B |
| F1/7f109 |
Fuse 109 |
32B |
| F1/7f110 |
Fuse 110 |
38B |
| F1/7f111 |
Fuse 111 |
44B |
| F1/7f112 |
Fuse 112 |
28B |
| F1/7f113 |
Fuse 113 |
31B |
| F1/7f92 |
Fuse 92 |
14B |
| F1/7f93 |
Fuse 93 |
26B |
| F1/7f94 |
Fuse 94 |
6B |
| F1/7f95 |
Fuse 95 |
30B |
| F1/7f96 |
Fuse 96 |
22B |
| F1/7f97 |
Fuse 97 |
23B |
| F1/7f98 |
Fuse 98 |
39B |
| F1/7f99 |
Fuse 99 |
10B |
| F32/4 |
Interior prefuse box |
3L |
| N110 |
Weight Sensing System (WSS) control unit |
26L |
| N125/1 |
Media interface control unit |
53L |
| N2/7 |
Restraint systems control unit |
30L |
| N32/1 |
Left front seat control unit |
15L |
| N32/2 |
Right front seat control unit |
18L |
| N47-5 |
ESP control unit |
34L |
| N47-5 |
ESP control unit |
34L |
| N82/1 |
Vehicle power supply control unit |
3L |
| N87/3 |
Digital Audio Broadcasting control unit |
49L |
| N87/5 |
SDAR control unit |
49L |
| N87/8 |
High-definition tuner control unit |
50L |
| N88 |
TPM [RDK] control unit |
22L |
| N93/1 |
Audio tuner control unit |
45L |
| U1 |
Valid for {{USA}} |
24D |
| U141 |
Valid for Digital Audio Broadcasting |
47E |
| U170 |
Valid for media interface |
52E |
| U172 |
Valid for high-definition tuner control unit |
47E |
| U237 |
Valid for COMAND operating unit, {{Japan}} version |
38D |
| U52 |
Valid for {{Japan}} |
9E |
| U645 |
Valid for tire pressure monitor system |
20D |
| U777 |
Valid for navigation |
36D |
| U816 |
Valid for satellite radio (SDAR) |
47D |
| U90 |
Valid for Sound System |
43D |
| U907 |
Valid for night view assist |
5F |
| U943 |
Valid for South Korea |
42D |
| U982 |
Valid for SPLITVIEW display |
9E |
| U983 |
Valid for Audio/COMAND display |
9E |
| X1/28 |
TV/tuner connector |
42H |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
26G |
