Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-99CAB

Code: Designation: Position:
A0 Explanation of color codes 56L
A9 AC compressor 31L
A9 AC compressor 35L
F32 Front prefuse 3L
F32 Front prefuse 49L
F32f6 Fuse 6 1K
F32f9 Fuse 9 47K
M33 AIR pump 6L
N10/1 Front SAM control module with fuse and relay module 3A
N10/1 Front SAM control module with fuse and relay module 12A
N10/1 Front SAM control module with fuse and relay module 20A
N10/1 Front SAM control module with fuse and relay module 28A
N10/1 Front SAM control module with fuse and relay module 36A
N10/1 Front SAM control module with fuse and relay module 44A
N10/1 Front SAM control module with fuse and relay module 51A
N10/1f21 Fuse 21 25C
N10/1f22 Fuse 22 25C
N10/1f23 Fuse 23 26C
N10/1f24 Fuse 24 27C
N10/1f30 Fuse 30 21C
N10/1f55 Fuse 55 10C
N10/1kA AIR pump relay 11A
N10/1kC Circuit 87 relay, engine 23A
N10/1kD Circuit 15 relay 4A
N10/1kG Circuit 15R relay 6A
N10/1kH Circuit 50 relay, starter 45A
N10/1kJ Circuit 15 relay, starter 47A
N10/2 Rear SAM control module with fuse and relay module 28L
N118 Fuel pump control module 16L
N3/10 ME-SFI [ME] control module 9L
N3/10 ME-SFI [ME] control module 13L
N3/10 ME-SFI [ME] control module 20L
N3/10 ME-SFI [ME] control module 24L
N3/10 ME-SFI [ME] control module 41L
U152 Valid for engine 156 5F
U152 Valid for engine 156 22F
U484 Valid for M273 ME 5F
U484 Valid for M273 ME 7F
U484 Valid for M273 ME 22F
U484 Valid for M273 ME 26F
U779 Valid for engine 275 5F
U779 Valid for engine 275 11F
U779 Valid for engine 275 34F
U779 Valid for engine 275 40F
W11 Ground (engine - connection point for ground wires) 6H
W46 Ground (AIR pump) 6H
X26 Interior and engine wiring harness connector 5H
X26 Interior and engine wiring harness connector 30H
Z3 Circuit 15 connector sleeve 16H
Z3 Circuit 15 connector sleeve 23H
Z7/35 Circuit 87M1e connector sleeve 30L
Z7/36 Circuit 87M2e connector sleeve 32L
Z7/38 Circuit 87 M1i connector sleeve 33L
Z7/38 Circuit 87 M1i connector sleeve 37L
Z7/38 Circuit 87 M1i connector sleeve 38L
Z7/5 Circuit 87 connector sleeve 24H
Z7/5 Circuit 87 connector sleeve 39L

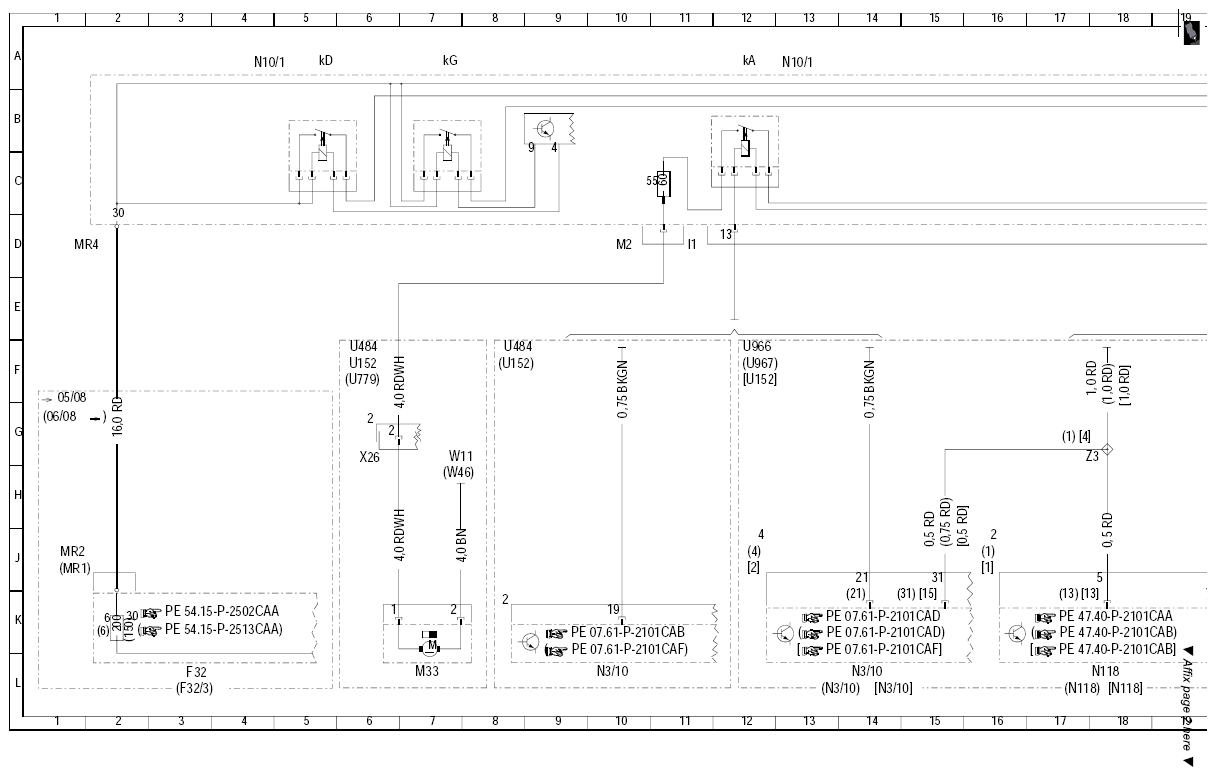

Fig 1: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (1 Of 5)
G07638526Courtesy of MERCEDES-BENZ USA

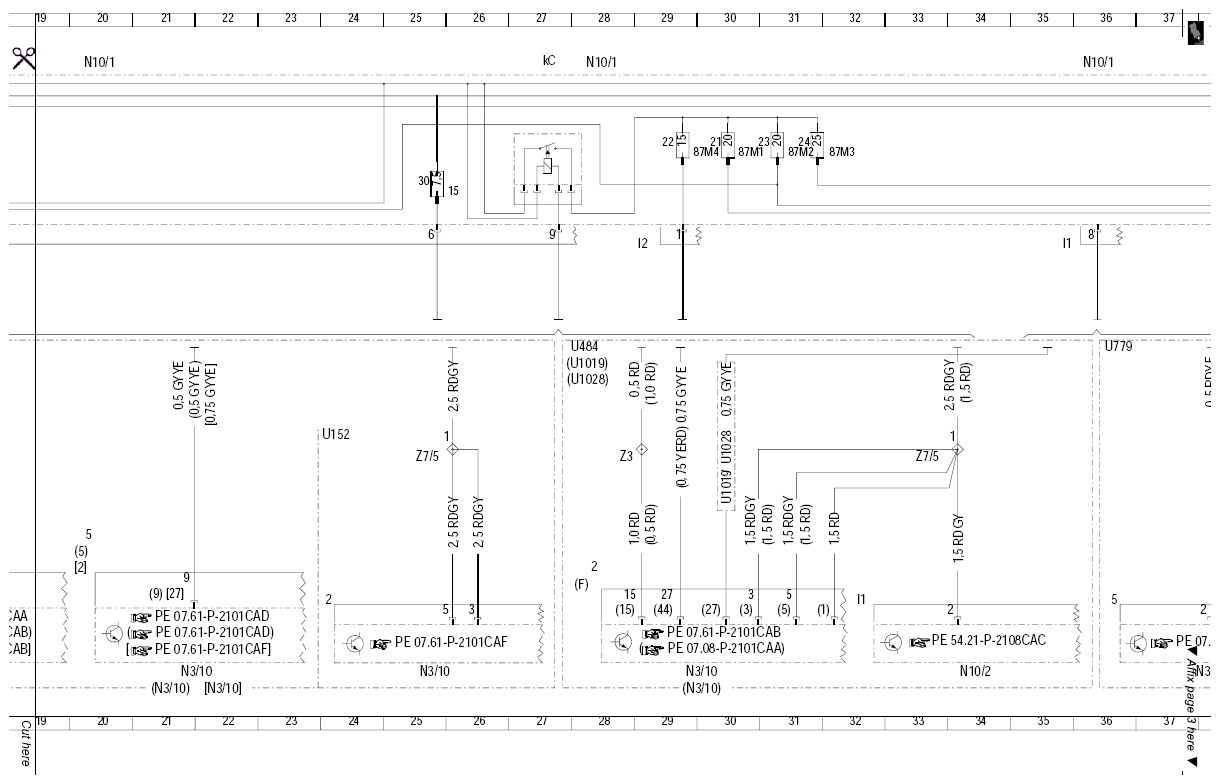

Fig 2: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (2 Of 5)
G07638527Courtesy of MERCEDES-BENZ USA

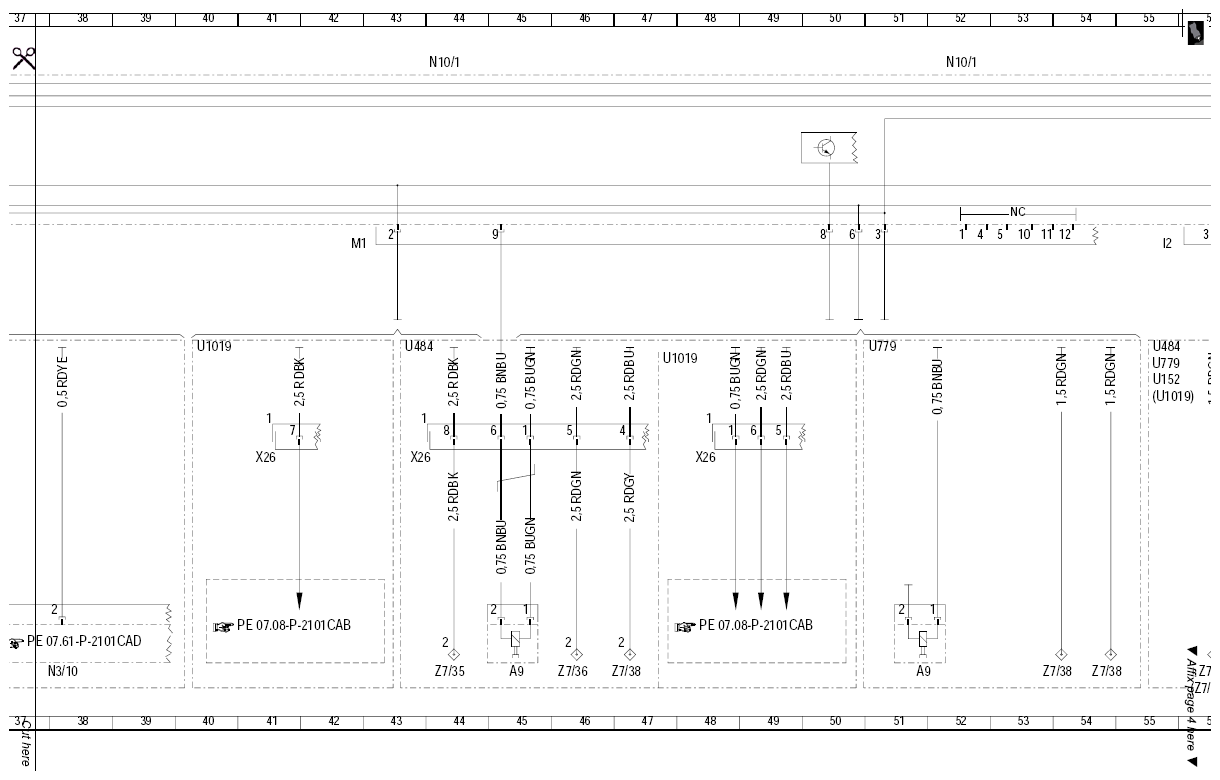

Fig 3: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (3 Of 5)
G07638528Courtesy of MERCEDES-BENZ USA

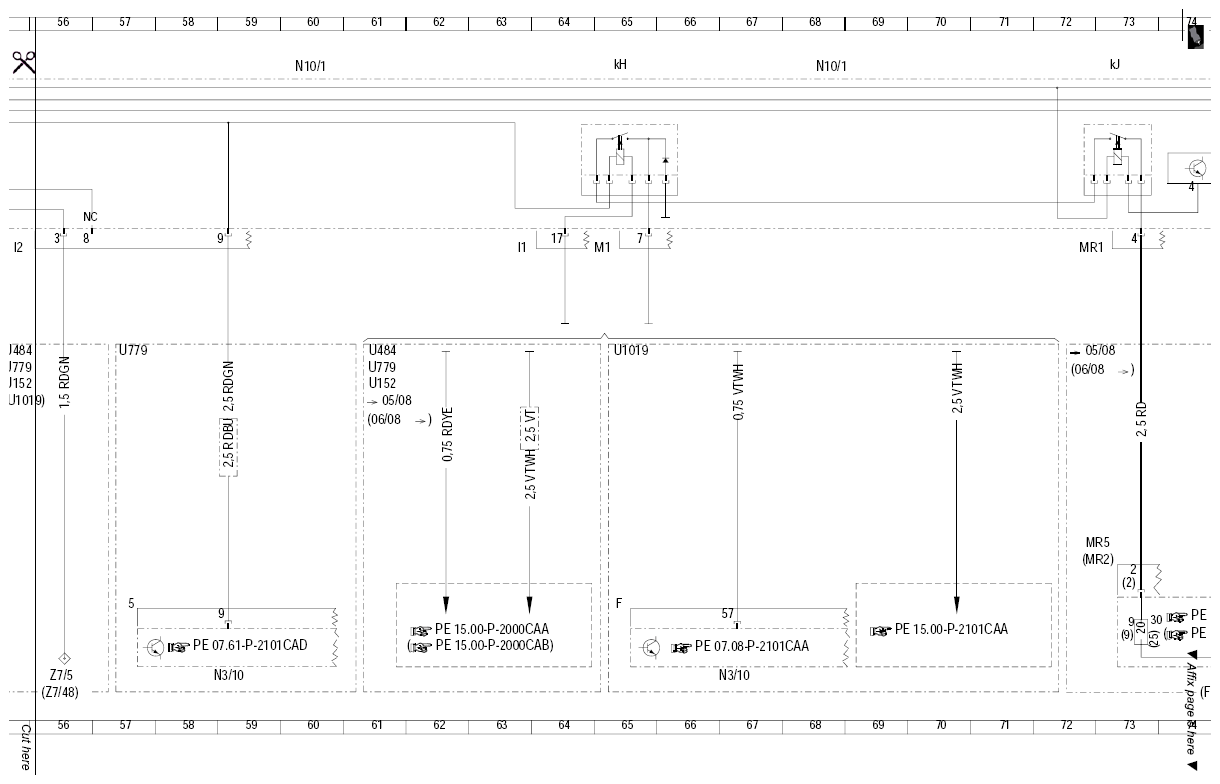

Fig 4: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (4 Of 5)
G07638529Courtesy of MERCEDES-BENZ USA

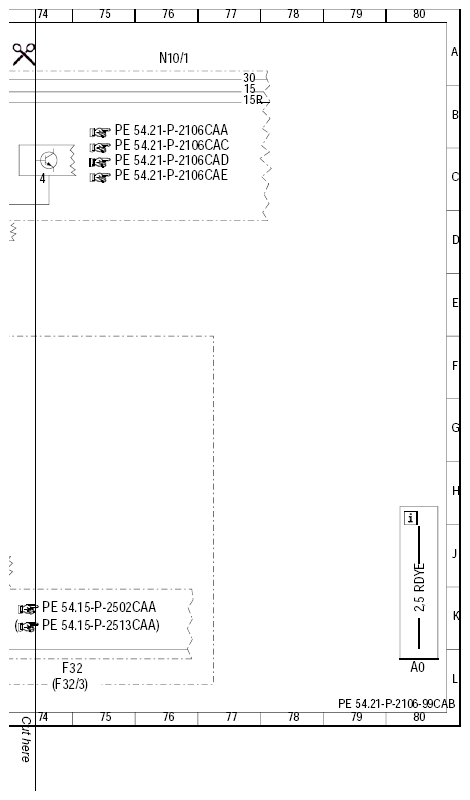

Fig 5: Front Sam Control Unit With Fuse And Relay Module Wiring Diagram (5 Of 5)
G07638530Courtesy of MERCEDES-BENZ USA
