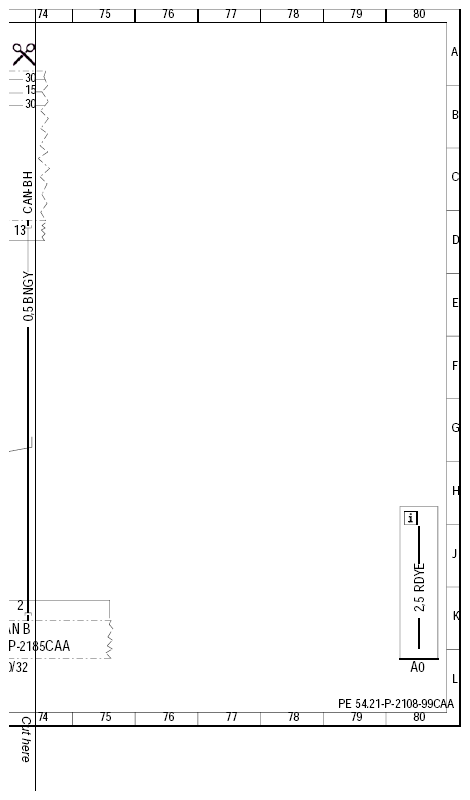

| A0 |
Explanation of color codes |
72L |
| A2/12 |

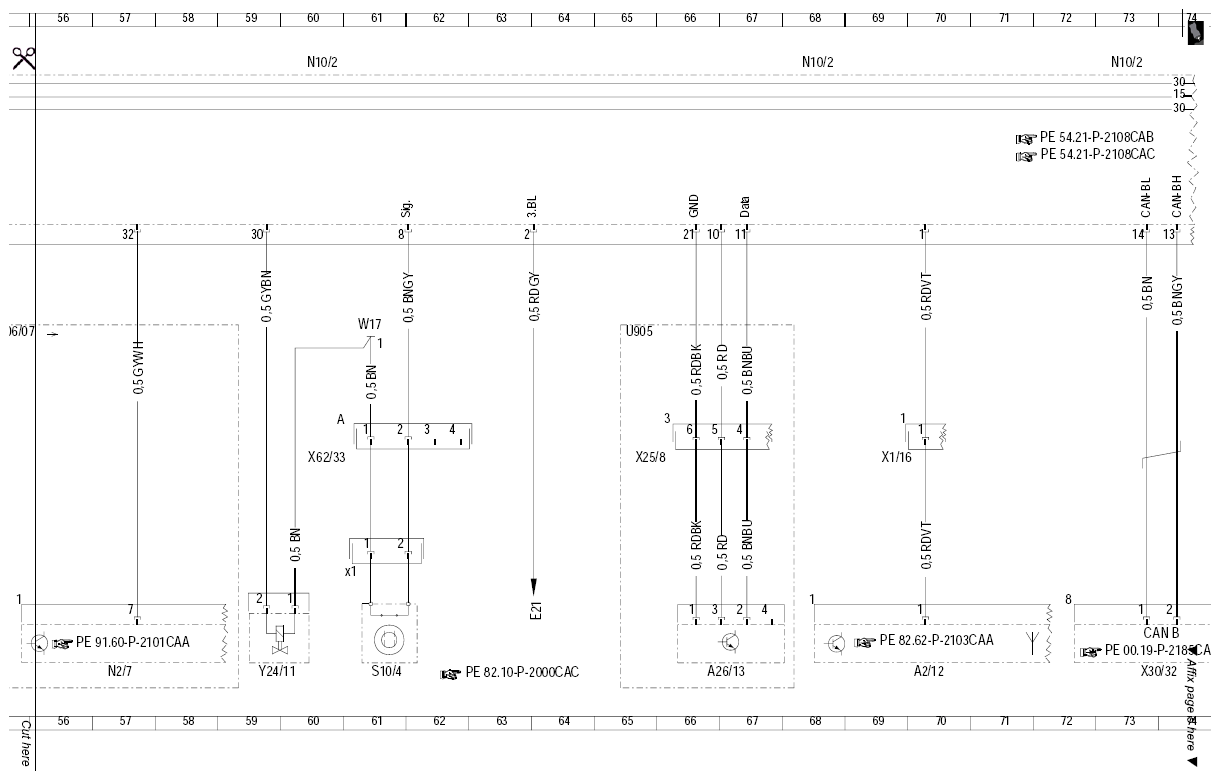

Rear window antenna amplifier module |
62L |
| A26/13 |
Ultrasonic echo sounder sensor |
59L |
| E18/4 |
Right trunk lamp |
15K |
| E18/5 |
Left trunk lamp |
16K |
| E19/1 |
Left license plate lamp |
22K |
| E19/2 |
Right license plate lamp |
23K |
| E21 |
Center high-mounted stop lamp |
56K |

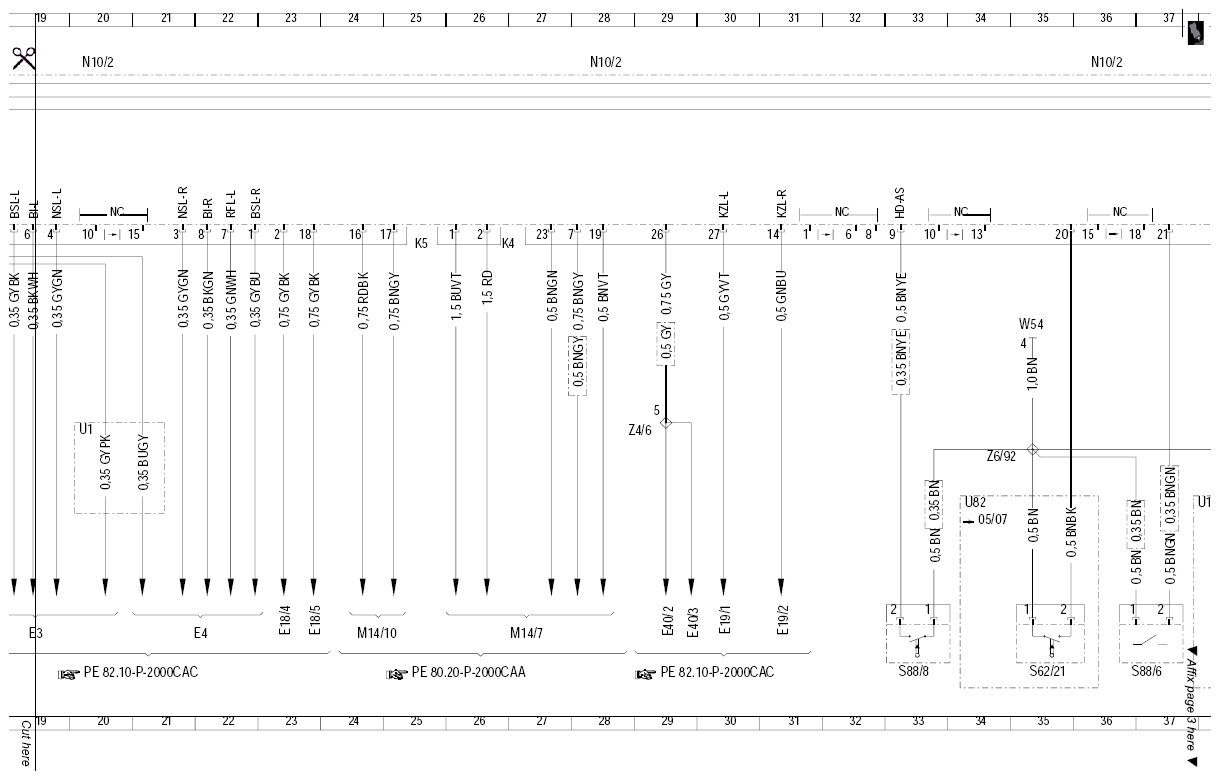

| E3 |
Left taillamp |
11K |
| E4 |
Right taillamp |
14K |
| E40/2 |
Left trunk lid ambient and warning lamp |
22K |
| F1/6 |
Right instrument panel fuse box |
45L |
| F1/6f79 |
Fuse 79 |
44K |
| H3/1 |
Alarm signal siren |
42L |
| M14/10 |
Fuel filler flap CL motor |
17K |
| M14/7 |
Trunk lid CL [ZV] motor |
19K |
| N10/1 |
Front SAM control module with fuse and relay module |
39L |
| N10/2 |
Rear SAM control module with fuse and relay module |
4A |
| N10/2 |
Rear SAM control module with fuse and relay module |
12A |
| N10/2 |
Rear SAM control module with fuse and relay module |
20A |
| N10/2 |
Rear SAM control module with fuse and relay module |
28A |
| N10/2 |
Rear SAM control module with fuse and relay module |
36A |
| N10/2 |
Rear SAM control module with fuse and relay module |
44A |
| N10/2 |
Rear SAM control module with fuse and relay module |
52A |
| N10/2 |
Rear SAM control module with fuse and relay module |
60A |
| N10/2 |
Rear SAM control module with fuse and relay module |
65A |
| N10/2f137 |
Fuse 137 |
7C |
| N10/2f138 |
Fuse 138 |
6C |

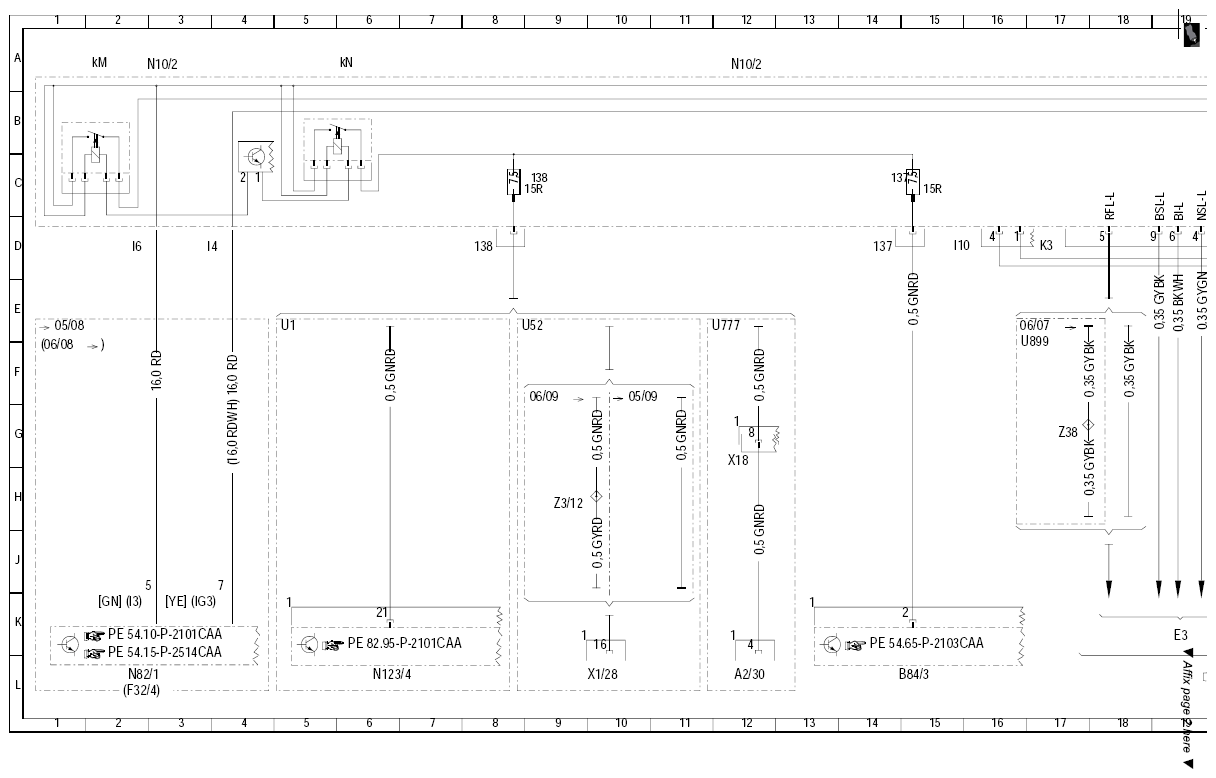

| N10/2kM |
Circuit 15 relay |
2A |
| N10/2kN |
Circuit 15R relay |
5A |
| N123/4 |
Emergency call system control unit |
6L |
| N2/7 |
Restraint systems control module |
49L |
| N82/1 |
Vehicle power supply control unit |
3L |
| S10/4 |
Right rear brake pad contact sensor |
53L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
53J |
| S62 |
ATA [EDW] hood switch |
37L |
| S62/21 |
Trunk lid KEYLESS-GO button |
27L |
| S68/11 |
Left rear seat belt buckle switch |
35K |
| S68/12 |
Right rear seat belt buckle switch |
35K |

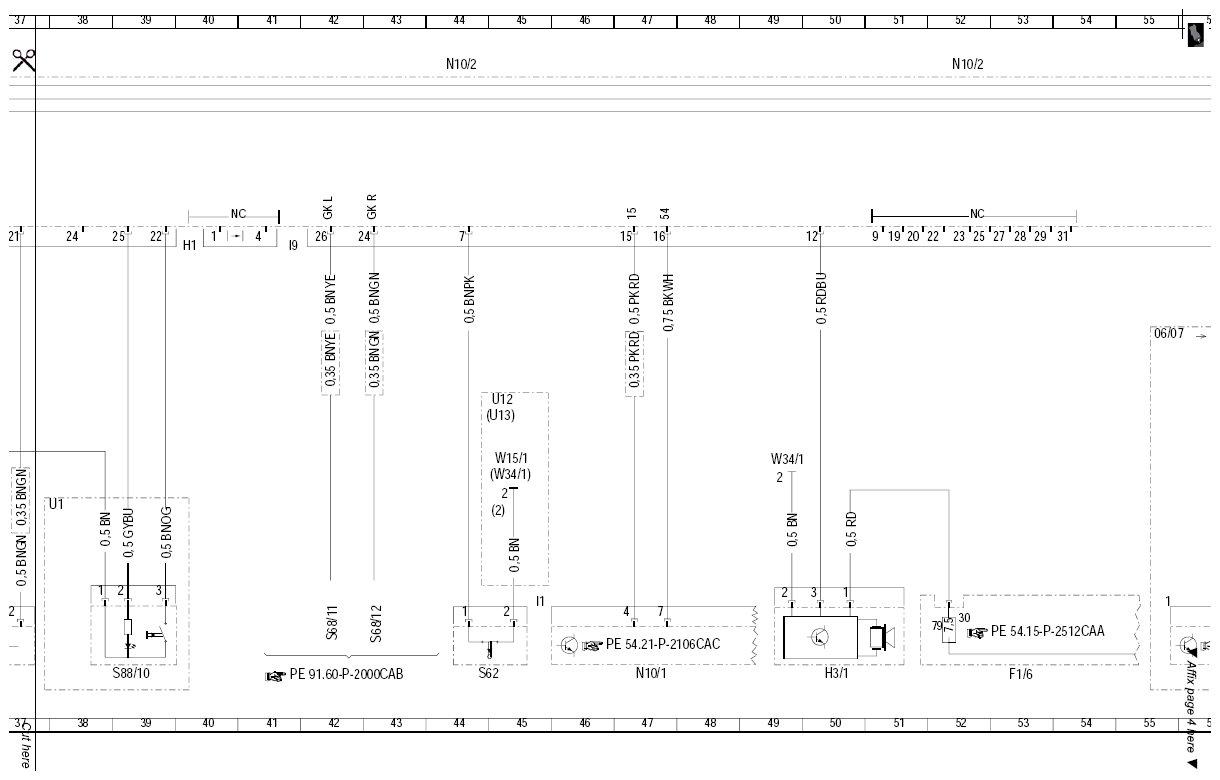

| S88/10 |
Trunk lid emergency release switch |
31L |
| S88/6 |
Trunk lid contact switch |
29L |
| S88/8 |
Trunk lid external operation switch |
25L |
| U1 |
Valid for {{USA}} |
5H |
| U1 |
Valid for {{USA}} |
12G |
| U1 |
Valid for {{USA}} |
30H |
| U12 |
Valid for left-hand steering |
37G |
| U13 |
Valid for right-hand steering |
37G |
| U82 |
Valid for KEYLESS GO |
26H |
| U899 |
Valid for backup camera |
9F |
| U905 |
Valid for interior protection |
57F |
| W15/1 |
Ground (right footwell) |
37H |
| W17 |
Ground (right rear seat) |
53E |
| W34/1 |
Ground (electronics - left footwell) |
37H |
| W34/1 |
Ground (electronics - left footwell) |
41H |
| W54 |
Ground, wheel well rear right |
27E |
| X1/16 |
Roof antenna connector |
62H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
58H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
66L |
| X62/33 |
Right rear axle electrical distributor connector |
52H |
| Y24/11 |
Rear head restraints valve block |
52L |
| Z38 |
Reversing lamp connector sleeve |
9G |
| Z4/6 |
Luggage compartment lamp circuit 30 connector sleeve |
21G |
| Z6/92 |
Trunk lid ground connector sleeve |
27H |
