DISTRONIC block diagram - GF30.30-P-0005-05LEA

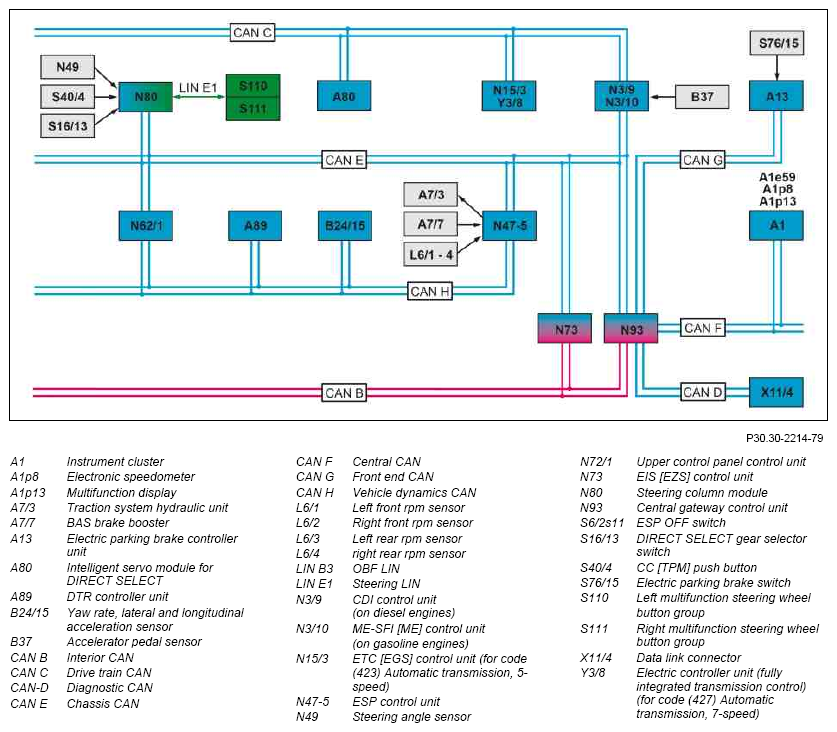

Fig 1: Distronic Block Diagram

G07641046

Courtesy of MERCEDES-BENZ USA
