Replace radial sealing ring at drive pinion gear (with rear axle differential installed) - AR35.31-P-0530CW

MODEL 204, 207

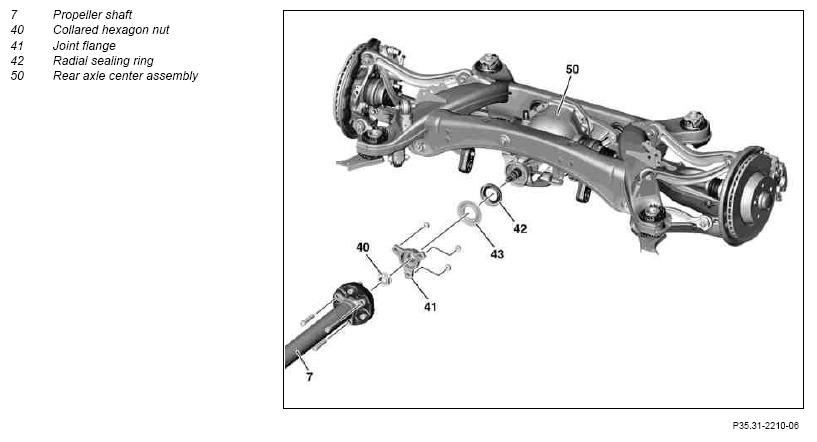

Fig 1: Identifying Propeller Shaft, Collared Hexagon Nut, Joint Flange, Radial Sealing Ring And Rear Axle Center Assembly

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surfaces of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
1	Remove exhaust system at flange connection	Vehicles with gasoline engine Vehicles with diesel engine	AR49.10-P-7100CW
2	Detach propeller shaft (7) from joint flange (41) on rear axle differential (50)		AR41.10-P-0050CW
3	Detach fitting sleeves on joint flange (41) of rear axle differential (50)		AR41.10-P-0050-09TX
	Drift for loosening fitting sleeves in flex disks.		WF58.50-P-4110-01A
4	Unscrew hexagon collar nut (40)		*BA35.31-P-1001-01E
			Fig 2
5	Detach joint flange (41).	If necessary, use puller.
			Fig 3
6	Pry the radial sealing ring (42) out of the rear axle differential (50) using a suitable tool	Do not damage the seating surface of the radial sealing ring in order to guarantee leaktightness and a faultless seat.
		Installation:  Replace radial sealing ring, coat the lip with universal hypoid gear oil and press into the rear axle center assembly using a drift
		Rear axle center assembly dia. 187mm	Fig 6
		Rear axle center assembly dia. 200mm	Fig 5
		Rear differential assembly dia. 215 mm	Fig 4
7	Install in the reverse order
	Check
8	Check oil level in differential (50) and correct if necessary		AR35.31-P-0520-03SX
			*BA35.31-P-1002-02H
			*BF35.31-P-1001-01T
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
9	Check rear axle differential (50) for leaks

REAR AXLE CENTER ASSEMBLY HOUSING

Number	Designation		Model 204	Model 207
BA35.31-P-1002-02H	Oil filler screw, rear axle differential	Nm	50	50

REAR AXLE DIFFERENTIAL GEAR SET

Number	Designation			Model 204	Model 207
BA35.31-P-1001-01E	Collar nut, joint flange to drive pinion	M26	Nm	160	160
		M29	Nm	160	160

REAR AXLE DIFFERENTIAL

Number	Designation			Model 204 except model 204.077/277 with code 471, P30	Model 204.077/277 with code 471, P30
BF35.31-P-1001-01T	Filling capacity	Rear axle differential 187 FE, 0 187 mm	Liters	.95	-
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A	-
		Rear axle differential 200 FE, 200 mm dia.	Liters	1, 1	-
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A	-
		Rear axle differential 215 FE, 215 mm dia.	Liters	1, 2	1, 2
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A	BB00.40-P-0235-61A

REAR AXLE DIFFERENTIAL

Number	Designation			Model 207
BF35.31-P-1001-01T	Filling capacity	Rear axle differential 187 FE, 0 187 mm	Liters	1.0
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A
		Rear axle differential 200 FE, 200 mm dia.	Liters	1, 1
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A
		Rear axle differential 215 FE, 215 mm dia.	Liters	1, 2
		Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A

Fig 2: Identifying Pin Wrench (129 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (129 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (211 589 04 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Drift (140 589 08 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Drift (140 589 14 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
