Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130CW
MODEL 172, 204, 207

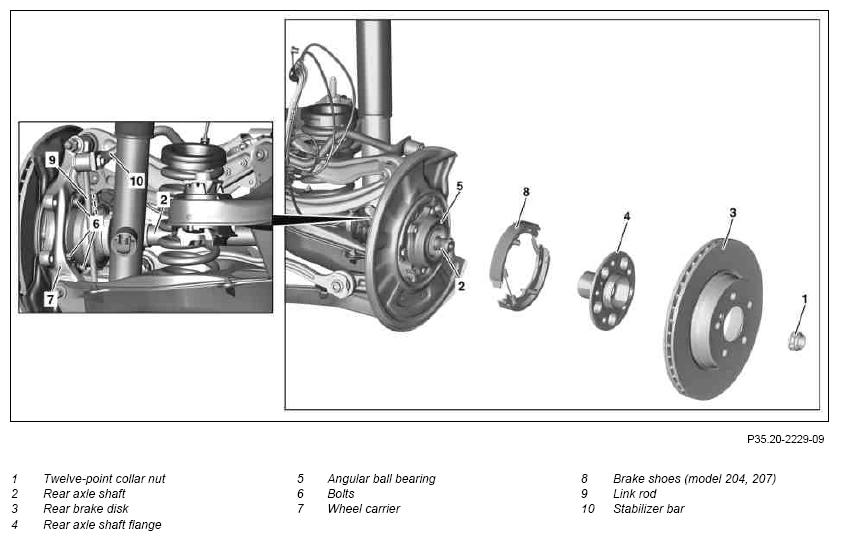

Shown on model 204
| Removing | |||
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; shield off hazard area if necessary. | AS00.00-Z-0001-01A | |
| Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves. | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove left or right rear wheel | Model 172 | AP40.10-P-4050V |
| Model 204, 207 | AP40.10-P-4050CW | ||
| 2 | Secure vehicle on vehicle lift | Model 172 | AR00.60-P-0100T |
| Model 204, 207 | AR00.60-P-0100CW | ||
| 3 | Detach twelve-point collar nut (1) from rear axle shaft (2) | AR35.30-P-0115-01TX | |
| 4 | Remove rear brake disk (3) | Model 172 except model 172.475 | AR42.10-P-0220W |
| Model 204 without engine 156 | AR42.10-P-0250CW | ||
| Model 204 with engine 156 | AR42.10-P-0250CMG | ||
| Model 207 | AR42.10-P-0250EW | ||
| 5 | Remove parking-brake brake shoes (8) | Model 204 | AR42.20-P-0530CW |
| Model 207 | AR42.20-P-0530EW | ||
| 6 | Pull rear axle shaft flange (4) out of angular contact ball bearing (5) | AR35.20-P-0130-06SX | |
| Fig 5 | |||
| Fig 8 | |||
| 7 | Detach link rod (9) from torsion bar (10) | ||
| 8 | Tension left or right rear spring | AR32.20-P-0200-06CW | |
| Fig 4 | |||
| Fig 10 | |||
| 9 | Raise wheel carrier (7) with transmission jack and transmission platform until the rear axle shaft (2) is approximately horizontal | Transmission jack 2.0-7.0 t gotis://H 00.10 01.0 | |
| Transmission platform for passenger cars and commercial vehicles qotis://A 25/35/49 02.0 | |||
| 10 | Press the rear axle shaft (2) as far as possible out of the angular contact ball bearing (5) | ||
| 11 | Detach angular contact ball bearing (5) from wheel carrier (7) | ||
| 12 | Clean water drain in wheel carrier (7) | AR35.20-P-0115-03CW | |
| 13 | Pull bearing inner race off the rear axle shaft flange (4) | AR35.20-P-0130-02TX | |
| Fig 2 | |||
| Fig 3 | |||
| Fig 9 | |||
| Install | |||
| 14 | Mount angular contact ball bearing (5) on wheel carrier (7) | ||
| *BA35.20-P-1001-06D | |||
| 15 | Press rear axle shaft (2) into angular contact ball bearing (5) | ||
| 16 | Lower wheel carrier (7) | ||
| 17 | Unclamp rear spring | AR32.20-P-0200-06CW | |
| Fig 4 | |||
| Fig 10 | |||
| 18 | Mount link rod (9) on stabilizer bar (10) | *BA32.20-P-1001-04C | |
| *BA32.20-P-1002-04N | |||
| 19 | Pull rear axle shaft flange (4) into angular contact ball bearing (5) | AR35.20-P-0130-07SX | |
| Fig 6 | |||
| Fig 7 | |||
| 20 | Install parking-brake brake shoes (8) | Model 204 | AR42.20-P-0530CW |
| Model 207 | AR42.20-P-0530EW | ||
| 21 | Install rear brake disk (3) | Model 172 except model 172.475 | AR42.10-P-0220W |
| Model 204 without engine 156 | AR42.10-P-0250CW | ||
| Model 204 with engine 156 | AR42.10-P-0250CMG | ||
| Model 207 | AR42.10-P-0250EW | ||
| 22 | Mount and secure twelve-point collar nut (1) on rear axle shaft (2) | AR35.30-P-0115-01TX | |
| *BA35.30-P-1001-01J | |||
| 23 | Mount left or right rear wheel | Model 172 | AP40.10-P-4050V |
| Model 204, 207 | AP40.10-P-4050CW | ||
| 24 | Remove vehicle lift safety device from vehicle | Model 172 | AR00.60-P-0100T |
| Model 204, 207 | AR00.60-P-0100CW |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 204 except model 204.077/277/377 |
Model 204.077/277/377 |
Model 207 |
|
|---|---|---|---|---|---|
| BA32.20-P-1002-04N | Nut, link rod to stabilizer bar | Nm | 50 | 50 | 50 |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA32.20-P-1001-04C | Nut, link rod to stabilizer bar | Nm | 30 |
HUB
| Number | Designation | Model 172 | Model 204 | Model 207 | |
|---|---|---|---|---|---|
| BA35.20-P-1001-06D | Wheel bearing to wheel carrier | Nm | 70 | 70 | 70 |
REAR AXLE SHAFT
| Number> | Designation | Model 172 | Model 204 | Model 207 | |||
|---|---|---|---|---|---|---|---|
| BA35.30-P-1001-01J | Collar nut, rear axle shaft to rear axle shaft flange | self-locking | Nm | 350 | 350 | 350 | |
| not self-locking | Stage 1 | Nm | - | 170 | 170 | ||
| Stage 2 | ∠° | - | 45 | 45 | |||
