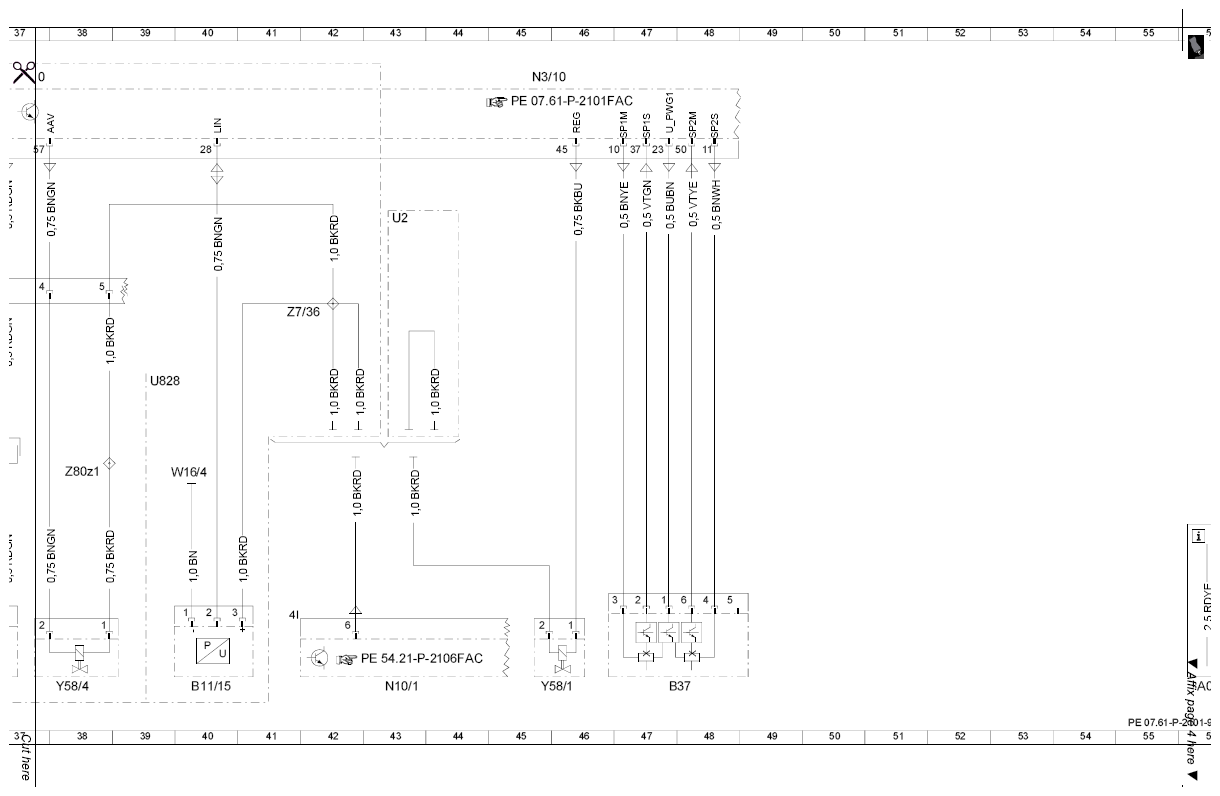

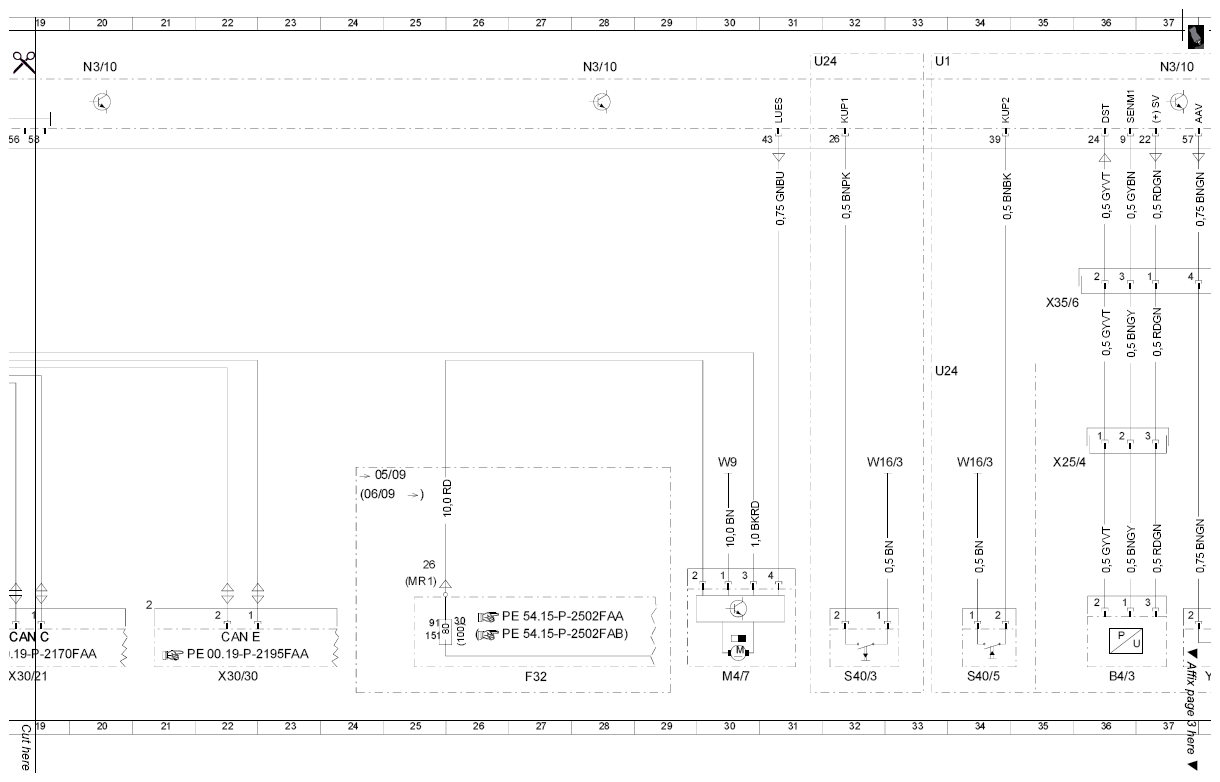

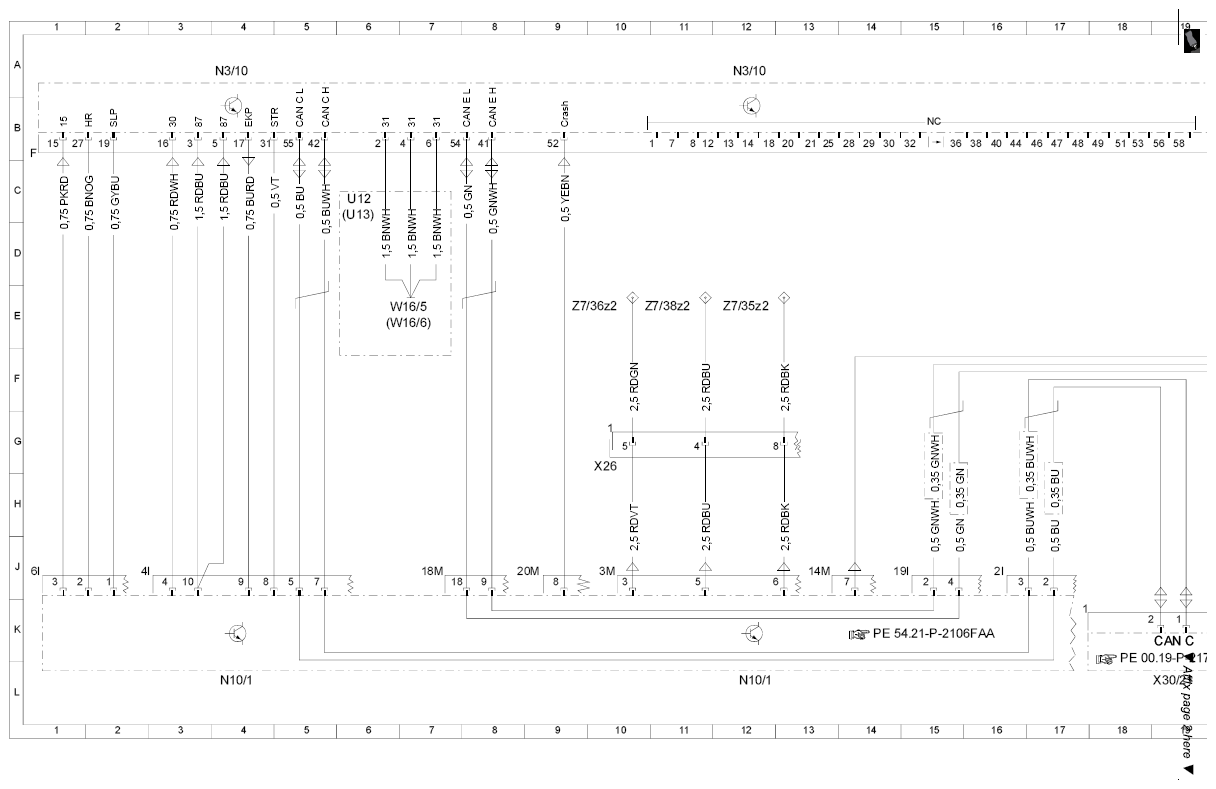

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99FAD
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

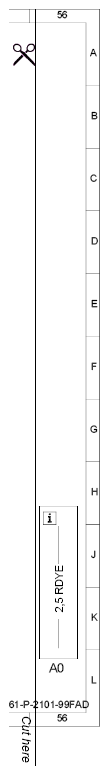

| A0 | Explanation of color codes | 48 L |
| B11/15 | PremAir sensor | 38 L |
| B37 | Accelerator pedal sensor | 45 L |
| B4/3 | Fuel tank pressure sensor | 35 L |
| CAN C | Drive train CAN | 19 K |
| CAN E | Chassis CAN | 22 K |
| F32 | Front electrical prefuse box | 26 L |
| F32f91 | Prefuse 91 | 24 K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 29 L |
| N10/1 | Front SAM control module with fuse and relay module | 4 L |
| N10/1 | Front SAM control module with fuse and relay module | 12 L |
| N10/1 | Front SAM control module with fuse and relay module | 41 L |
| N3/10 | ME-SFI [ME] control module | 4 A |
| N3/10 | ME-SFI [ME] control module | 12 A |
| N3/10 | ME-SFI [ME] control module | 20 A |
| N3/10 | ME-SFI [ME] control module | 28 A |
| N3/10 | ME-SFI [ME] control module | 36 A |
| N3/10 | ME-SFI [ME] control module | 43 A |
| S40/3 | Clutch pedal switch | 31 L |
| S40/5 | Start enable clutch pedal switch | 32 L |
| U1 | Valid for USA | 32 A |
| U12 | Valid for left-hand steering | 6 C |
| U13 | Valid for right-hand steering | 6 D |
| U2 | Valid for all except USA | 41 D |
| U24 | Valid for manual transmission | 30 A |
| U24 | Valid for manual transmission | 32 F |
| U828 | Valid for SULEV | 37 F |
| W16/3 | Left major assembly compartment ground point | 31 H |
| W16/3 | Left major assembly compartment ground point | 32 H |
| W16/4 | Right wheelhouse ground point | 38 H |
| W16/5 | Left major assembly compartment electronics ground point | 6 E |
| W16/6 | Right major assembly compartment ground point | 6 E |
| W9 | Left front ground point (at lamp unit) | 29 H |
| X25/4 | Fuel tank electrical connector | 34 H |
| X26 | Interior and engine wiring harness electrical connector | 10 H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 18 L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 22 L |
| X35/6 | Instrument panel and module box electrical connector | 34 E |
| Y58/1 | Purge control valve | 43 L |
| Y58/4 | Activated charcoal filter shutoff valve | 36 L |
| Z7/35 | Circuit 87 M1e connector sleeve | 11 E |
| Z7/36 | Circuit 87M2e connector sleeve | 10 E |
| Z7/36 | Circuit 87M2e connector sleeve | 39 E |
| Z7/38 | Circuit 87 M1i connector sleeve | 11 E |
| Z80 | Cross section reduction connector sleeve | 36 H |
