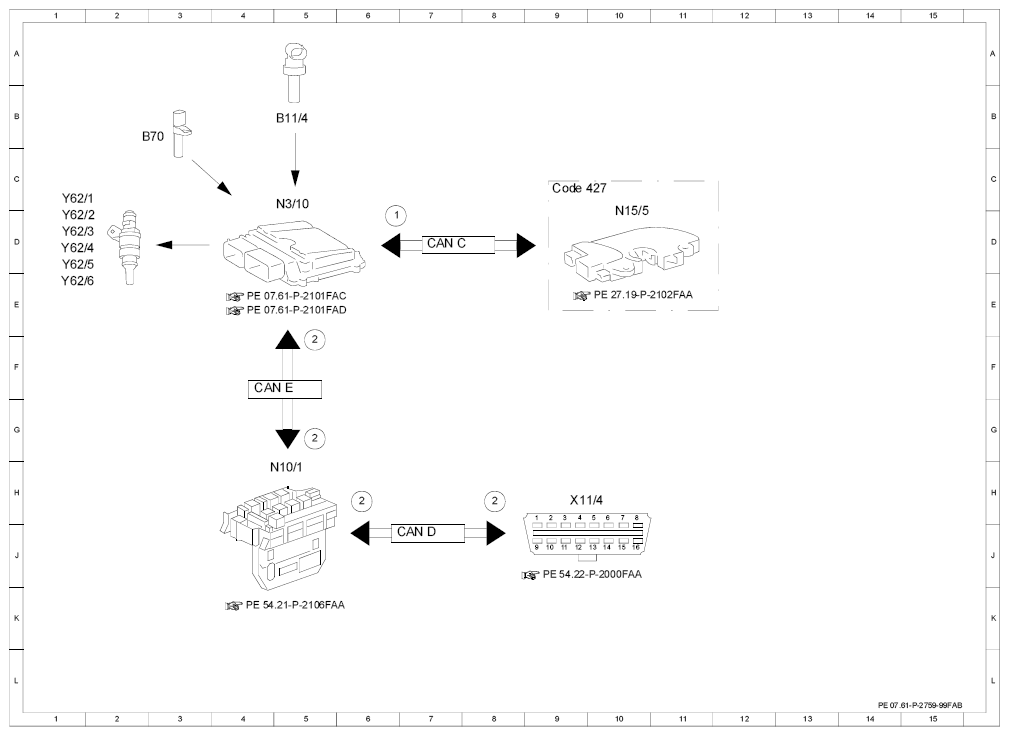

Electrical function schematic, post-start enrichment ME - PE07.61-P-2759-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, request | 6 D |
| 2 | Correction programming, communication | 5 G |
| 2 | Correction programming, communication | 5 F |
| 2 | Correction programming, communication | 6 H |
| 2 | Correction programming, communication | 8 H |
| B11/4 | Coolant temperature sensor | 5 B |
| B70 | Crankshaft Hall sensor | 2 C |
| CAN C | Drive train CAN | 7 D |
| CAN D | Diagnostic CAN | 6 J |
| CAN E | Chassis CAN | 4 G |
| Code 427 | 7-speed automatic transmission | 9 C |
| N10/1 | Front SAM control unit with fuse and relay module | 4 H |
| N15/5 | Electronic selector lever module control unit | 10 D |
| N3/10 | ME-SFI [ME] control unit | 5 D |
| X11/4 | Diagnostic connector | 9 H |
| Y62/1 | Cylinder 1 injection valve | 1 C |
| Y62/2 | Cylinder 2 injection valve | 1 D |
| Y62/3 | Cylinder 3 injection valve | 1 D |
| Y62/4 | Cylinder 4 injection valve | 1 D |
| Y62/5 | Cylinder 5 injection valve | 1 E |
| Y62/6 | Cylinder 6 injection valve | 1 E |
