Electrical function schematic, partial load/ full-load operation ME - PE07.61-P-2761-99FAB

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
B11/4 Coolant temperature sensor 2 H
B2/5 Hot film mass air flow sensor 5 C
B2/5b1 Intake air temperature sensor 5 C
B28 Pressure sensor 8 C
B28/10 Right intake manifold tumble flap position sensor 8 H
B28/9 Left intake manifold tumble flap position sensor 8 H
B37 Accelerator pedal sensor 6 C
B6/4 Left intake camshaft Hall sensor 2 F
B6/5 Right intake camshaft Hall sensor 2 F
B6/6 Left exhaust camshaft Hall sensor 2 F
B6/7 Right exhaust camshaft Hall sensor 2 G
B70 Crankshaft Hall sensor 10 G
G3/3 Left oxygen sensor upstream of catalytic converter 5 J
G3/4 Right oxygen sensor upstream of catalytic converter 5 J
G3/5 Left oxygen sensor downstream of catalytic converter 5 K
G3/6 Right oxygen sensor downstream of catalytic converter 5 K
M16/6 Throttle valve actuator 3 K
N3/10 ME-SFI [ME] control unit 5 E
T1/1 Cylinder 1 ignition coil 7 J
T1/2 Cylinder 2 ignition coil 7 J
T1/3 Cylinder 3 ignition coil 7 J
T1/4 Cylinder 4 ignition coil 7 K
T1/5 Cylinder 5 ignition coil 7 K
T1/6 Cylinder 6 ignition coil 7 K
Y22/6 Intake manifold switchover valve 1 D
Y22/9 Intake manifold tumble flap switchover valve 1 E
Y49/4 Left intake camshaft solenoid 9 D
Y49/5 Right intake camshaft solenoid 9 D
Y49/6 Left exhaust camshaft solenoid 9 E
Y49/7 Right exhaust camshaft solenoid 9 E
Y62/1 Cylinder 1 injection valve 3 B
Y62/2 Cylinder 2 injection valve 3 B
Y62/3 Cylinder 3 injection valve 3 C
Y62/4 Cylinder 4 injection valve 3 C
Y62/5 Cylinder 5 injection valve 3 C
Y62/6 Cylinder 6 injection valve 3 C

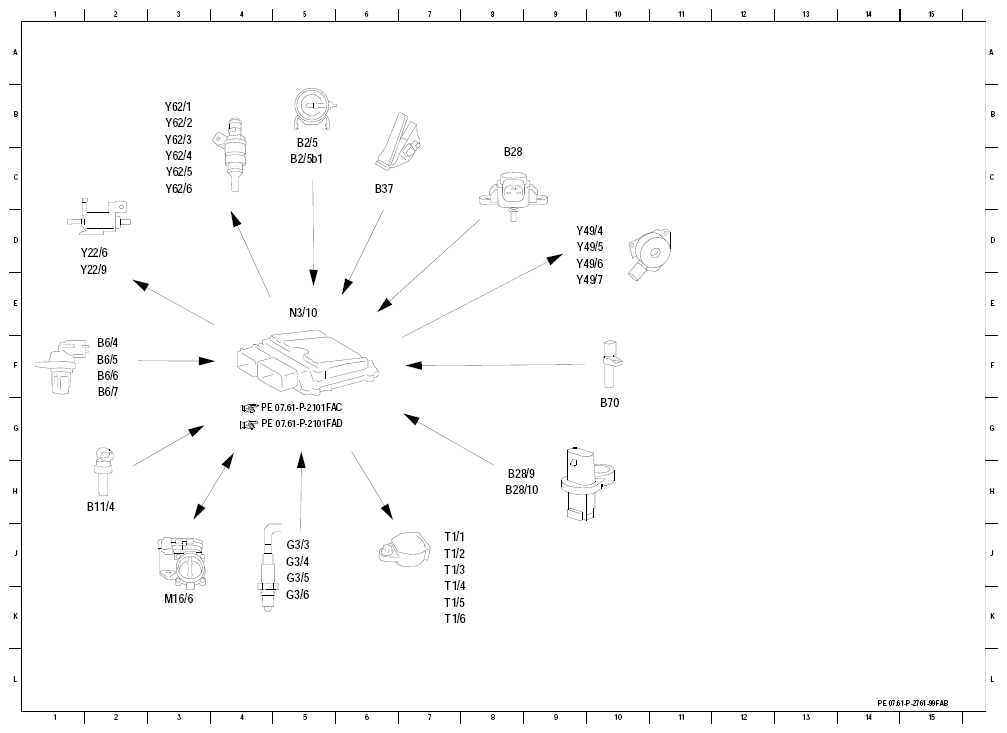

Fig 1: Partial Load/ Full-Load Operation ME Function Diagram
G07522638Courtesy of MERCEDES-BENZ USA
