Electrical function schematic, information about engine oil level ME - PE07.61-P-2767-97FAA

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Code:	Designation:	Position:
1	Engine oil level, signal	4H
A1	Instrument cluster	4J
CAN E	Chassis CAN
N3/10	ME-SFI [ME] control unit	4D
S43	Oil level check switch	4B

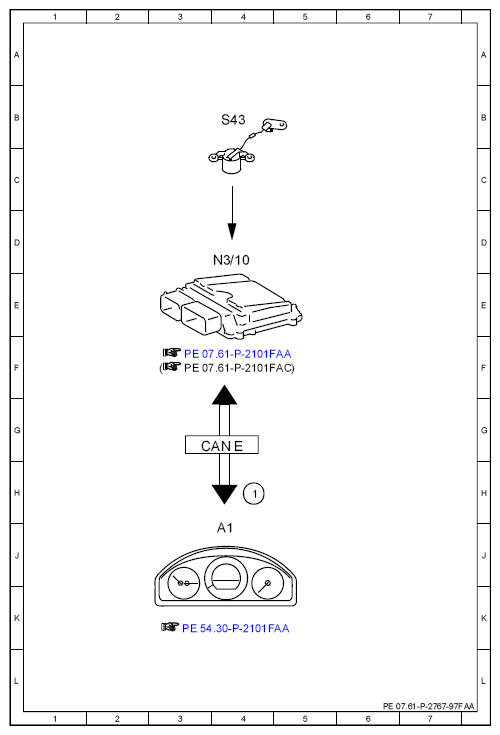

Fig 1: Engine Oil Level ME Function Diagram
