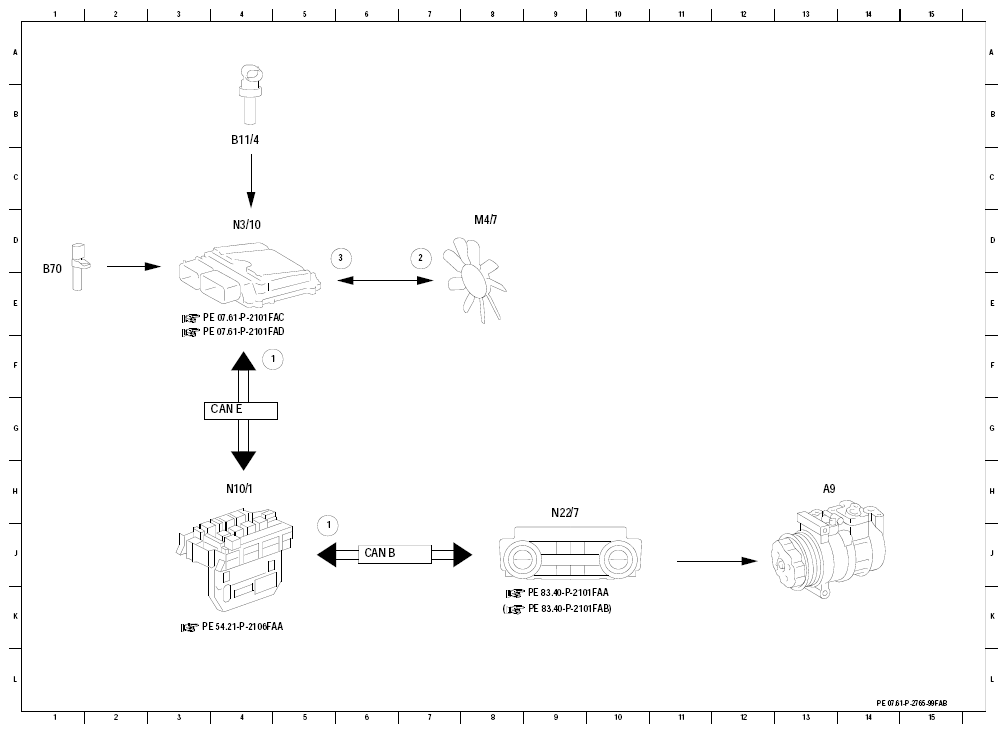

Electrical function schematic, fan control for engine and air conditioning ME - PE07.61-P-2765-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 4 F |
| 1 | Air conditioning, status | 5 J |
| 2 | Fan motor, specified RPM request | 7 D |
| 3 | Fan motor, status | 6 D |
| A9 | Refrigerant compressor | 13 H |
| B11/4 | Coolant temperature sensor | 4 C |
| B70 | Crankshaft Hall sensor | 1 E |
| CAN B | Interior CAN | 6 J |
| CAN E | Chassis CAN | 3 G |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 8 D |
| N10/1 | Front SAM control unit with fuse and relay module | 4 H |
| N22/7 | Automatic air conditioning control and operating unit | 9 J |
| N3/10 | ME-SFI [ME] control unit | 4 D |
