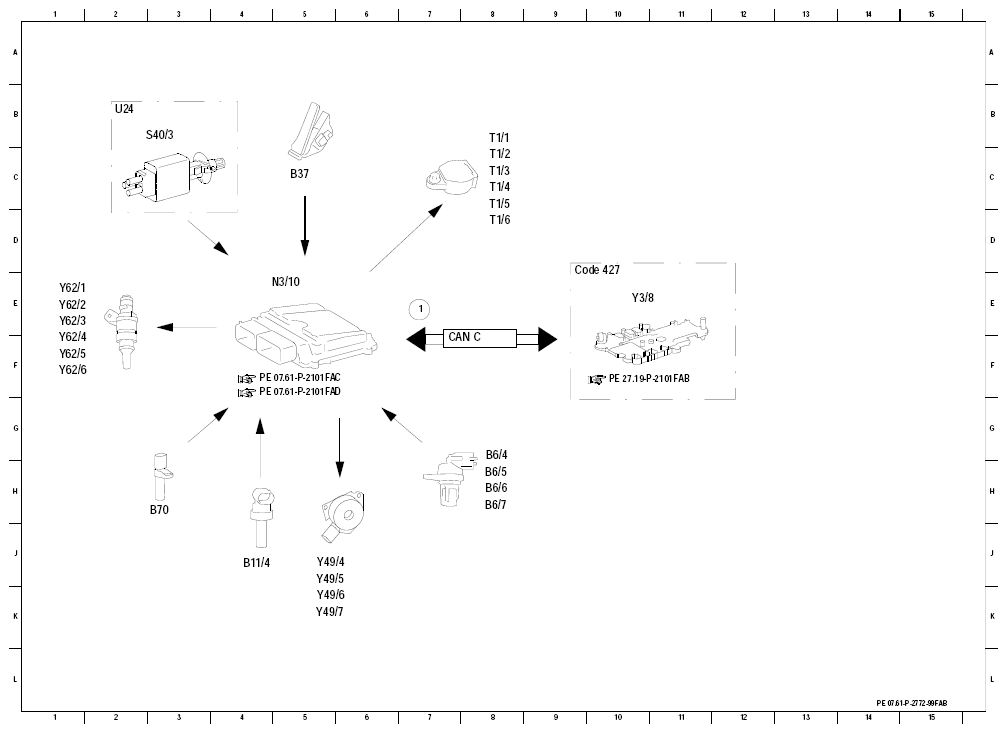

Electrical function schematic, deceleration fuel shutoff ME - PE07.61-P-2772-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 7 E |
| B11/4 | Coolant temperature sensor | 4 J |
| B37 | Accelerator pedal sensor | 5 C |
| B6/4 | Left intake camshaft Hall sensor | 8 H |
| B6/5 | Right intake camshaft Hall sensor | 8 H |
| B6/6 | Left exhaust camshaft Hall sensor | 8 H |
| B6/7 | Right exhaust camshaft Hall sensor | 8 H |
| B70 | Crankshaft Hall sensor | 2 H |
| CAN C | Drive train CAN | 7 F |
| Code 427 | 7-speed automatic transmission | 9 E |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| S40/3 | Clutch pedal switch | 2 C |
| T1/1 | Cylinder 1 ignition coil | 8 C |
| T1/2 | Cylinder 2 ignition coil | 8 C |
| T1/3 | Cylinder 3 ignition coil | 8 C |
| T1/4 | Cylinder 4 ignition coil | 8 C |
| T1/5 | Cylinder 5 ignition coil | 8 D |
| T1/6 | Cylinder 6 ignition coil | 8 D |
| U24 | Valid for manual transmission | 2 B |
| Y3/8 | Fully integrated transmission control unit | 10 E |
| Y49/4 | Left intake camshaft solenoid | 5 J |
| Y49/5 | Right intake camshaft solenoid | 5 K |
| Y49/6 | Left exhaust camshaft solenoid | 5 K |
| Y49/7 | Right exhaust camshaft solenoid | 5 K |
| Y62/1 | Cylinder 1 injection valve | 1 E |
| Y62/2 | Cylinder 2 injection valve | 1 E |
| Y62/3 | Cylinder 3 injection valve | 1 E |
| Y62/4 | Cylinder 4 injection valve | 1 F |
| Y62/5 | Cylinder 5 injection valve | 1 F |
| Y62/6 | Cylinder 6 injection valve | 1 F |
