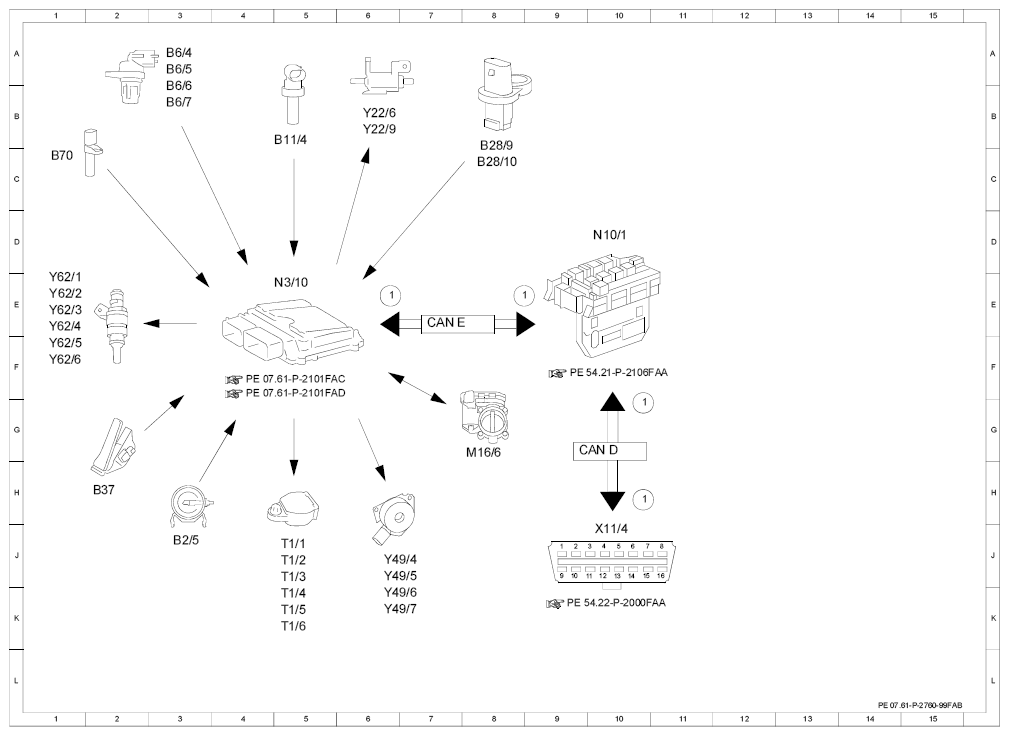

Electrical function schematic, acceleration enrichment ME - PE07.61-P-2760-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Correction programming, communication | 6 E |
| 1 | Correction programming, communication | 8 E |
| 1 | Correction programming, communication | 10 H |
| 1 | Correction programming, communication | 10 G |
| B11/4 | Coolant temperature sensor | 4 C |
| B2/5 | Hot film mass air flow sensor | 3 J |
| B28/10 | Right intake manifold tumble flap position sensor | 8 C |
| B28/9 | Left intake manifold tumble flap position sensor | 8 C |
| B37 | Accelerator pedal sensor | 2 H |
| B6/4 | Left intake camshaft Hall sensor | 3 A |
| B6/5 | Right intake camshaft Hall sensor | 3 A |
| B6/6 | Left exhaust camshaft Hall sensor | 3 B |
| B6/7 | Right exhaust camshaft Hall sensor | 3 B |
| B70 | Crankshaft Hall sensor | 1 C |
| CAN D | Diagnostic CAN | 9 G |
| CAN E | Chassis CAN | 7 E |
| M16/6 | Throttle valve actuator | 8 H |
| N10/1 | Front SAM control unit with fuse and relay module | 10 D |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| T1/1 | Cylinder 1 ignition coil | 5 J |
| T1/2 | Cylinder 2 ignition coil | 5 J |
| T1/3 | Cylinder 3 ignition coil | 5 J |
| T1/4 | Cylinder 4 ignition coil | 5 K |
| T1/5 | Cylinder 5 ignition coil | 5 K |
| T1/6 | Cylinder 6 ignition coil | 5 K |
| X11/4 | Diagnostic connector | 10 J |
| Y22/6 | Intake manifold switchover valve | 6 B |
| Y22/9 | Intake manifold tumble flap switchover valve | 6 B |
| Y49/4 | Left intake camshaft solenoid | 6 J |
| Y49/5 | Right intake camshaft solenoid | 6 J |
| Y49/6 | Left exhaust camshaft solenoid | 6 K |
| Y49/7 | Right exhaust camshaft solenoid | 6 K |
| Y62/1 | Cylinder 1 injection valve | 1 E |
| Y62/2 | Cylinder 2 injection valve | 1 E |
| Y62/3 | Cylinder 3 injection valve | 1 E |
| Y62/4 | Cylinder 4 injection valve | 1 F |
| Y62/5 | Cylinder 5 injection valve | 1 F |
| Y62/6 | Cylinder 6 injection valve | 1 F |
