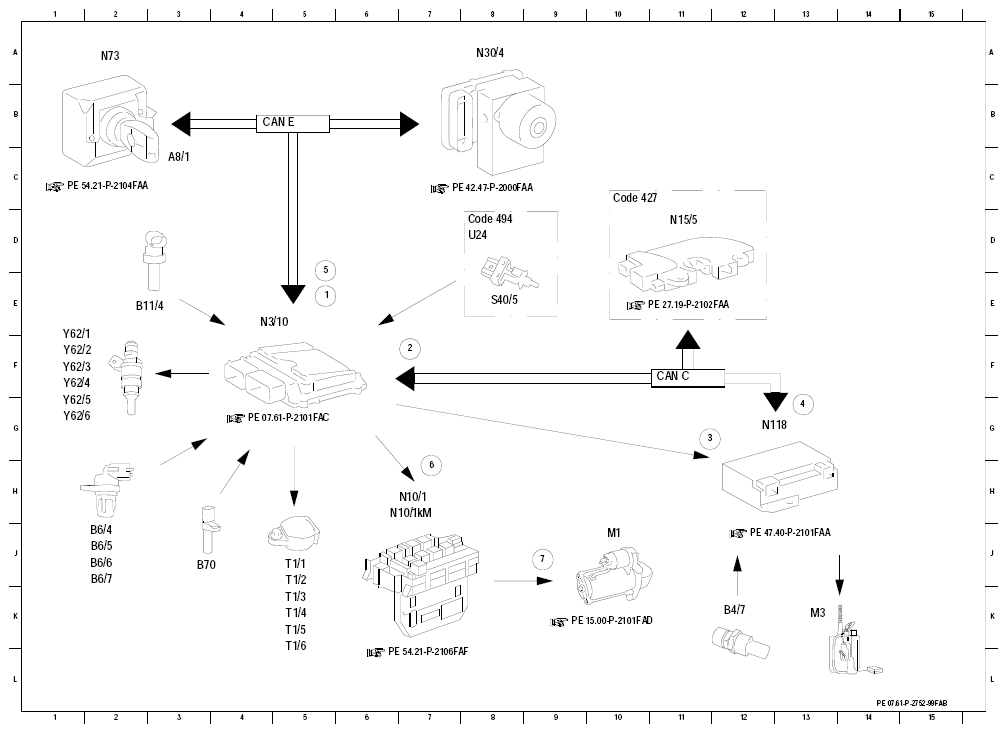

Electrical function schematic, ME engine start - PE07.61-P-2752-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 5 E |
| 2 | Shift stage, request | 7 F |
| 3 | Fuel pump, request ON | 11 G |
| 4 | Fuel pump, specified pressure request | 13 G |
| 5 | Service brake, status | 5 E |
| 6 | Starter circuit 50 relay, actuation | 7 H |
| 7 | Starter, actuation | 9 J |
| A8/1 | Transmitter key | 3 C |
| B11/4 | Coolant temperature sensor | 2 E |
| B4/7 | Fuel pressure sensor | 12 K |
| B6/4 | Left intake camshaft Hall sensor | 2 J |
| B6/5 | Right intake camshaft Hall sensor | 2 J |
| B6/6 | Left exhaust camshaft Hall sensor | 2 J |
| B6/7 | Right exhaust camshaft Hall sensor | 2 K |
| B70 | Crankshaft Hall sensor | 3 J |
| CAN C | Drive train CAN | 11 F |
| CAN E | Chassis CAN | 4 B |
| Code 427 | 7-speed automatic transmission | 10 C |
| Code 494 | USA version | 8 D |
| M1 | Starter | 10 J |
| M3 | Fuel pump (FP) | 13 K |
| N10/1 | Front SAM control unit with fuse and relay module | 6 H |
| N10/1kM | Starter circuit 50 relay | 6 J |
| N118 | Fuel pump control unit | 12 G |
| N15/5 | Electronic selector lever module control unit | 11 D |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| N30/4 | Electronic Stability Program control unit | 8 A |
| N73 | Electronic ignition switch control unit | 2 A |
| S40/5 | Start enable clutch pedal switch | 8 E |
| T1/1 | Cylinder 1 ignition coil | 5 J |
| T1/2 | Cylinder 2 ignition coil | 5 K |
| T1/3 | Cylinder 3 ignition coil | 5 K |
| T1/4 | Cylinder 4 ignition coil | 5 K |
| T1/5 | Cylinder 5 ignition coil | 5 K |
| T1/6 | Cylinder 6 ignition coil | 5 L |
| U24 | Valid for manual transmission | 8 D |
| Y62/1 | Cylinder 1 injection valve | 1 F |
| Y62/2 | Cylinder 2 injection valve | 1 F |
| Y62/3 | Cylinder 3 injection valve | 1 F |
| Y62/4 | Cylinder 4 injection valve | 1 F |
| Y62/5 | Cylinder 5 injection valve | 1 G |
| Y62/6 | Cylinder 6 injection valve | 1 G |
