Electrical function schematic for warm-up control ME - PE07.61-P-2764-99FAB

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
1 Correction programming, communication 4 J
1 Correction programming, communication 4 F
1 Correction programming, communication 6 K
1 Correction programming, communication 8 K
2 Secondary air injection relay, actuation 9 F
3 Shift point, increase request 10 D
B11/4 Coolant temperature sensor 5 B
B2/5 Hot film mass air flow sensor 6 H
B2/5b1 Intake air temperature sensor 6 H
B37 Accelerator pedal sensor 9 C
B6/4 Left intake camshaft Hall sensor 3 B
B6/5 Right intake camshaft Hall sensor 3 C
B6/6 Left exhaust camshaft Hall sensor 3 C
B6/7 Right exhaust camshaft Hall sensor 3 C
B70 Crankshaft Hall sensor 4 C
CAN C Drive train CAN 8 E
CAN D Diagnostic CAN 7 K
CAN E Chassis CAN 4 G
Code 427 7-speed automatic transmission 10 D
G3/3 Left oxygen sensor upstream of catalytic converter 7 A
G3/4 Right oxygen sensor upstream of catalytic converter 7 B
G3/5 Left oxygen sensor downstream of catalytic converter 7 B
G3/6 Right oxygen sensor downstream of catalytic converter 7 B
M16/6 Throttle valve actuator 1 E
M33 Electric air pump 12 H
N10/1 Front SAM control unit with fuse and relay module 5 J
N10/1kP Secondary air injection relay 9 H
N3/10 ME-SFI [ME] control unit 5 D
X11/4 Diagnostic connector 9 K
Y110 Coolant thermostat 8 H
Y16/2 Heating system shutoff valve 8 C
Y3/8 Fully integrated transmission control unit 11 D
Y32 Air pump switchover valve 2 J
Y49/4 Left intake camshaft solenoid 2 F
Y49/5 Right intake camshaft solenoid 2 F
Y49/6 Left exhaust camshaft solenoid 2 F
Y49/7 Right exhaust camshaft solenoid 2 F
Y62/1 Cylinder 1 injection valve 1 H
Y62/2 Cylinder 2 injection valve 1 H
Y62/3 Cylinder 3 injection valve 1 H
Y62/4 Cylinder 4 injection valve 1 H
Y62/5 Cylinder 5 injection valve 1 J
Y62/6 Cylinder 6 injection valve 1 J

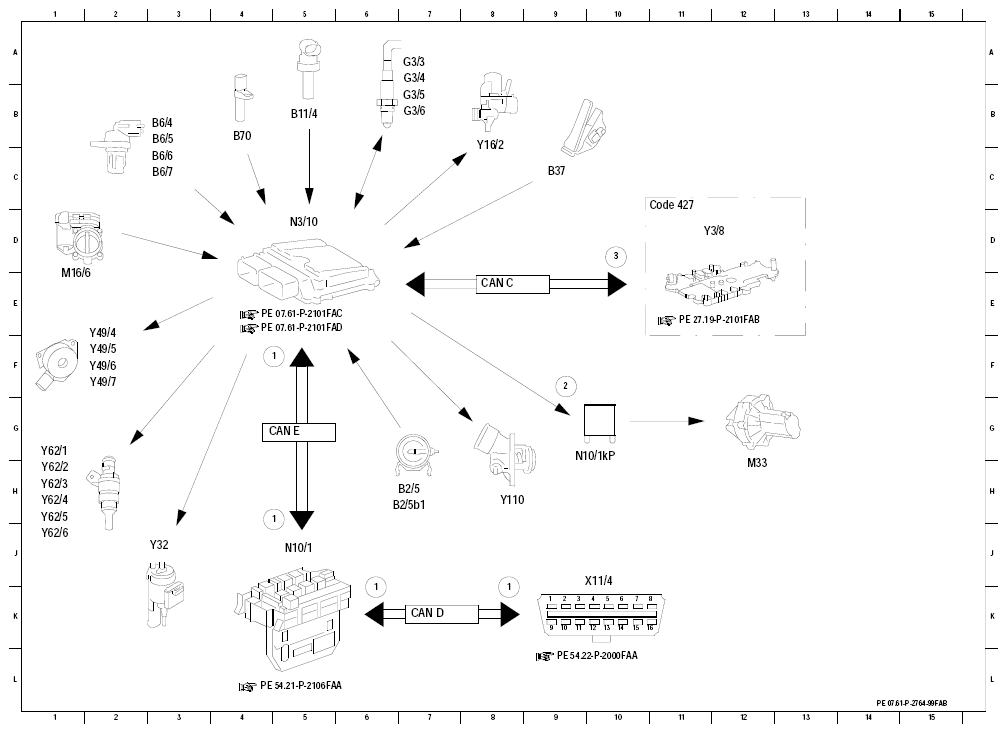

Fig 1: Warm-Up Control ME Function Diagram
G07522644Courtesy of MERCEDES-BENZ USA
