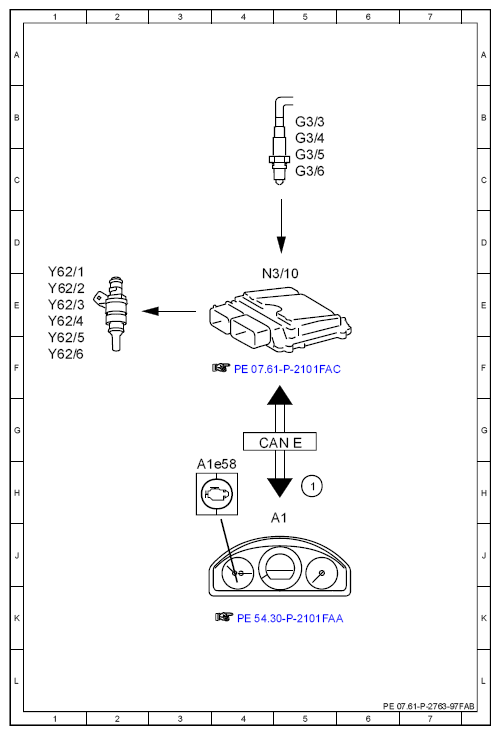

Electrical function schematic for two-sensor control ME - PE07.61-P-2763-97FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 5H |
| A1 | Instrument cluster | 4H |
| A1e58 | Engine diagnosis indicator lamp | 3H |
| CAN E | Chassis CAN | |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 5B |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 5B |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 5C |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 5C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y62/1 | Cylinder 1 injection valve | 1E |
| Y62/2 | Cylinder 2 injection valve | 1E |
| Y62/3 | Cylinder 3 injection valve | 1E |
| Y62/4 | Cylinder 4 injection valve | 1E |
| Y62/5 | Cylinder 5 injection valve | 1F |
| Y62/6 | Cylinder 6 injection valve | 1F |
