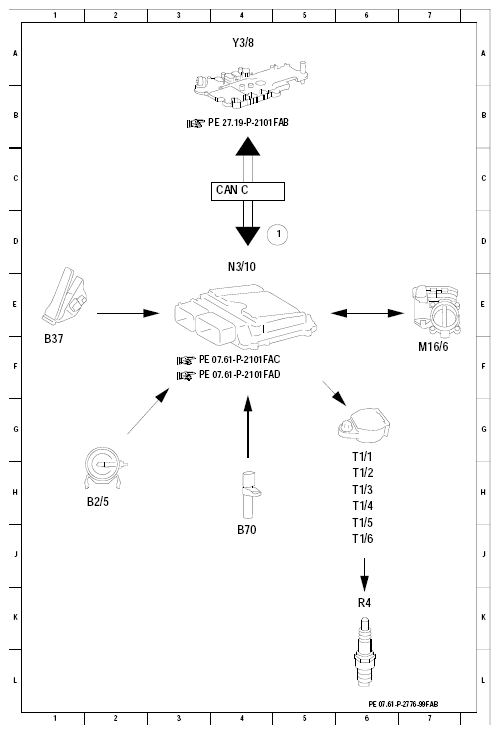

Electrical function schematic for transmission, overload protection ME - PE07.61-P-2776-99FAB
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Transmission control, status | 5 D |
| B2/5 | Hot film mass air flow sensor | 2 H |
| B37 | Accelerator pedal sensor | 1 F |
| B70 | Crankshaft Hall sensor | 4 J |
| CAN C | Drive train CAN | 4 C |
| M16/6 | Throttle valve actuator | 7 F |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| R4 | Spark plugs | 6 K |
| T1/1 | Cylinder 1 ignition coil | 6 H |
| T1/2 | Cylinder 2 ignition coil | 6 H |
| T1/3 | Cylinder 3 ignition coil | 6 H |
| T1/4 | Cylinder 4 ignition coil | 6 H |
| T1/5 | Cylinder 5 ignition coil | 6 J |
| T1/6 | Cylinder 6 ignition coil | 6 J |
| Y3/8 | Fully integrated transmission control unit | 4 A |
