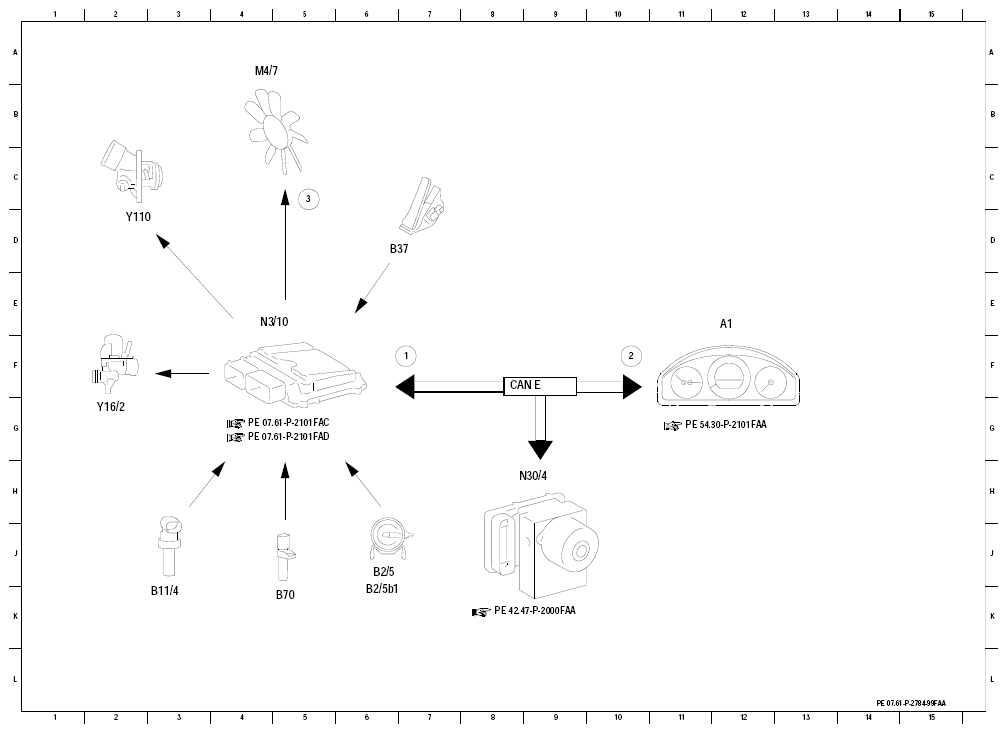

Electrical function schematic for engine coolant thermal management - PE07.61-P-2784-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 7 F |
| 2 | Instrument cluster, message | 10 F |
| 3 | Fan motor, specified RPM request | 5 C |
| A1 | Instrument cluster | 12 E |
| B11/4 | Coolant temperature sensor | 3 K |
| B2/5 | Hot film mass air flow sensor | 6 J |
| B2/5b1 | Intake air temperature sensor | 6 K |
| B37 | Accelerator pedal sensor | 6 D |
| B70 | Crankshaft Hall sensor | 5 K |
| CAN E | Chassis CAN | 8 F |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 4 A |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| N30/4 | Electronic Stability Program control unit | 8 H |
| Y110 | Coolant thermostat | 2 D |
| Y16/2 | Heating system shutoff valve | 2 G |
