Electrical function schematic for engine control ME-SFI [ME], output signals - PE07.61-P-2751-99FAB

WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A1 Instrument cluster 17 H
A1e58 Engine diagnosis indicator lamp 16 G
A9 Refrigerant compressor 28 H
CAN B Interior CAN 22 J
CAN C Drive train CAN 10 F
CAN C Drive train CAN 19 B
CAN D Diagnostic CAN 22 H
CAN E Chassis CAN 10 F
CAN E Chassis CAN 18 F
Code 427 7-speed automatic transmission 18 C
Code 494 USA version 6 J
G2 Alternator 11 D
G3/3 Left oxygen sensor upstream of catalytic converter 1 E
G3/4 Right oxygen sensor upstream of catalytic converter 1 F
G3/5 Left oxygen sensor downstream of catalytic converter 1 F
G3/6 Right oxygen sensor downstream of catalytic converter 1 F
LIN C1 Drive train LIN 8 E
M1 Starter 10 B
M16/6 Throttle valve actuator 1 D
M3 Fuel pump (FP) 14 C
M33 Electric air pump 9 A
M4/7 Combustion engine and air conditioning with integrated control fan motor 5 A
N10/1 Front SAM control unit with fuse and relay module 19 G
N10/1kM Starter circuit 50 relay 8 D
N10/1kN Engine circuit 87 relay 2 H
N10/1kP Secondary air injection relay 7 C
N118 Fuel pump control unit 16 C
N22/7 Automatic air conditioning control and operating unit 24 H
N3/10 ME-SFI [ME] control unit 5 E
N30/4 Electronic Stability Program control unit 14 G
R4 Spark plugs 1 L
T1/1 Cylinder 1 ignition coil 1 H
T1/2 Cylinder 2 ignition coil 1 H
T1/3 Cylinder 3 ignition coil 1 H
T1/4 Cylinder 4 ignition coil 1 J
T1/5 Cylinder 5 ignition coil 1 J
T1/6 Cylinder 6 ignition coil 1 J
X11/4 Diagnostic connector 22 F
Y110 Coolant thermostat 8 K
Y16/2 Heating system shutoff valve 9 J
Y22/6 Intake manifold switchover valve 9 H
Y22/9 Intake manifold tumble flap switchover valve 9 H
Y3/8 Fully integrated transmission control unit 20 C
Y32 Air pump switchover valve 3 J
Y49/4 Left intake camshaft solenoid 3 B
Y49/5 Right intake camshaft solenoid 3 B
Y49/6 Left exhaust camshaft solenoid 3 C
Y49/7 Right exhaust camshaft solenoid 3 C
Y58/1 Purge control valve 6 A
Y58/4 Activated charcoal filter shutoff valve 6 K
Y62/1 Cylinder 1 injection valve 4 K
Y62/2 Cylinder 2 injection valve 4 K
Y62/3 Cylinder 3 injection valve 4 K
Y62/4 Cylinder 4 injection valve 4 L
Y62/5 Cylinder 5 injection valve 4 L
Y62/6 Cylinder 6 injection valve 4 L

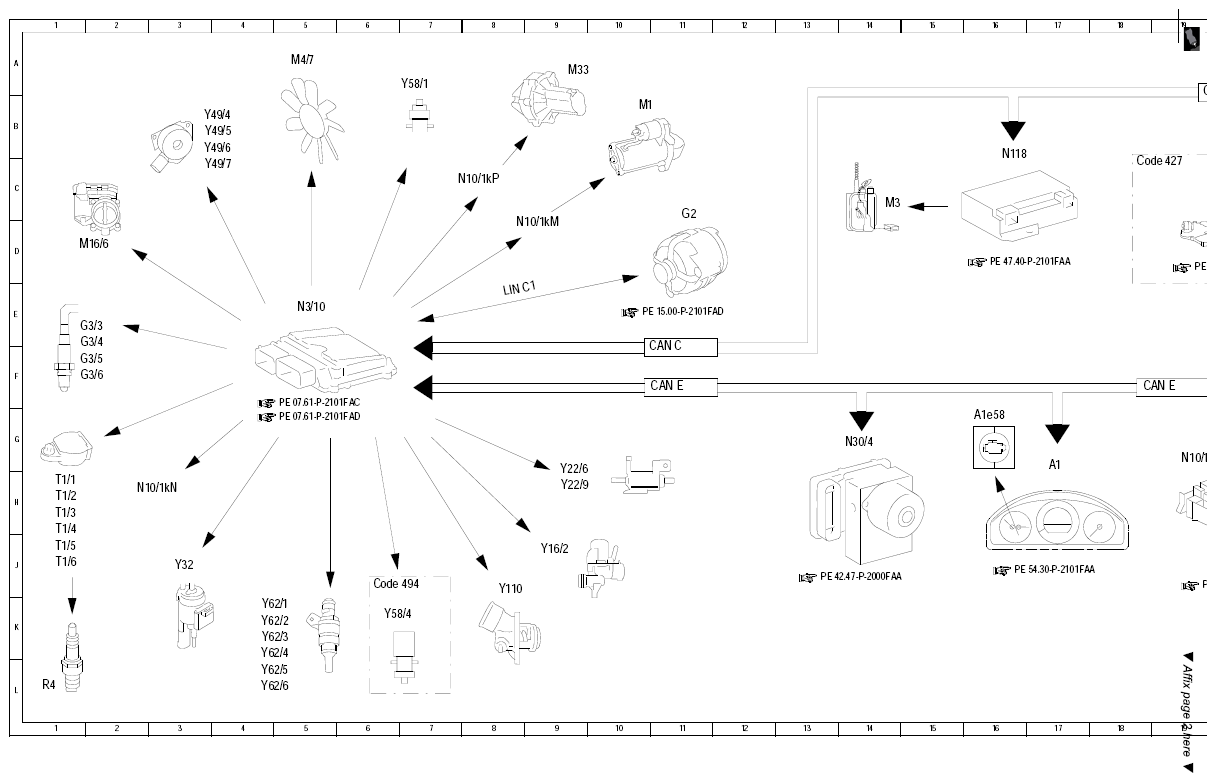

Fig 1: Electrical Function Schematic For Engine Control ME-SFI [ME], Output Signals (1 Of 2)
G07522621Courtesy of MERCEDES-BENZ USA

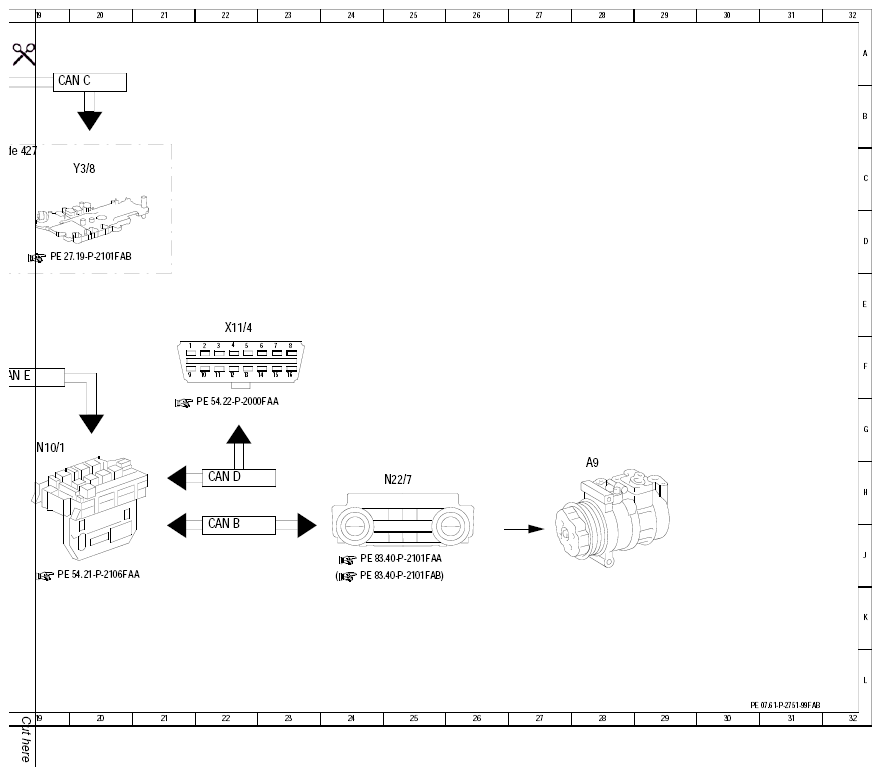

Fig 2: Electrical Function Schematic For Engine Control ME-SFI [ME], Output Signals (2 Of 2)
G07522622Courtesy of MERCEDES-BENZ USA
