Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0
| Checking | |||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leak-free in safely closed original containers and out of children's reach only. | AS82.35-Z-0001-01A | |
| 1 | Open engine hood and raise to vertical position | ||

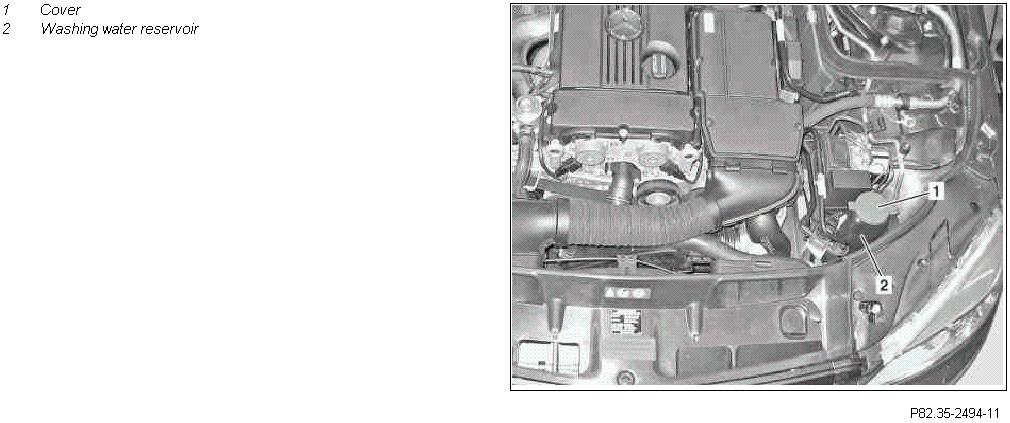

| 2 | Remove cover (1) and fill washer fluid reservoir (2) with washing water | ||
| *BF82.35-P-1001-01G | |||
| Windshield washer fluid concentrate | Sheet 371.0 | BB00.40-P-0371-00A | |
| 3 | Close washer fluid reservoir (2) with cover (1) | ||
| 4 | Close engine hood |
WINDSHIELD WASHER SYSTEM FILLING CAPACITY
| Number | Designation | Model 204.0 without code 600/614/615/616/618/621/622/875 | Model 204.0 with code 600/614/615/616/618/621/622/875 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01G | Windshield washer fluid | Filling capacity | Liters | 3.5 | 6.0 |
