Adjust or check front fog lights - AP82.10-P-8260-04CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

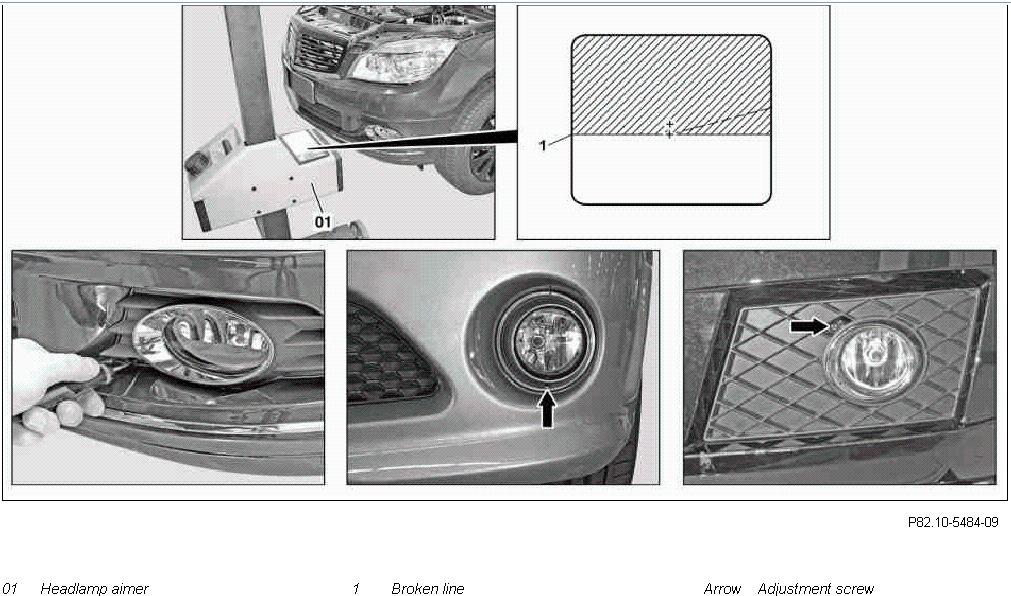

The light-dark boundary of the light beam must be horizontal at the height of the separating line (1) in the headlamp aimer (01).
- If necessary,, Correct front fog light setting if necessary.
Except model 204.077/277: Use screwdriver.
