Rear SAM control unit with fuse and relay module, component description - GF54.21-P-6030CW

MODEL 204.0/2 up to Model Year 8

Illustrated on model 204.0

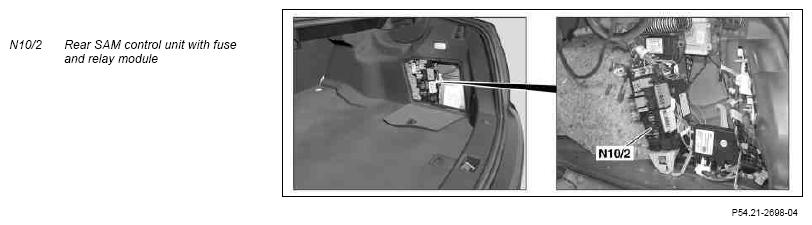

Location

The rear SAM control unit is located in the rear right of the luggage compartment.

Task

The rear SAM control unit is connected to the interior CAN for the exchange of data.

Limit switches supply systems and control units with voltage to match the function sequence. Requests are conveyed to the rear SAM control unit via the interior CAN, the on-board electrical system LIN, the rear SAM LIN or via read-in switches and sensors.

The individual components are protected via fuses contained in the fuse and relay block.

Control of the following functions

• Rear lamps
• Heated seats (HS)

  (with code (873) front left and right heated seats)

• Rear window-roller blind

  (with code (540) Electric rear window roller blind)

• Heated rear window
• Anti-theft alarm system

  (with code (551) Anti-theft alarm system (ATA [EDW]))

• Locking of trunk lid (model 204.0), the tailgate (model 204.2) and the fuel filler flap
• Battery state recognition

Gateway between the following LINs

• On-board electrical system LIN
• Rear SAM LIN

Discrete inputs

• Circuit 30
• Circuit 31
• Left rear door rotary tumbler switch (A85/3s1)
• Right rear door rotary tumbler switch (A85/4s1)
• Engine hood anti-theft alarm system switch (S62) (with code (551) Anti-theft alarm system (ATA [EDW]))
• Left fuel level indicator sensor (B4/1)
• Right fuel level indicator sensor (B4/2)
• Trunk lid rotary tumbler switch (M14/7s1)
• Trunk lid contact switch (S88/6) (only )
• Trunk lid external operation switch (S88/8)
• Trunk lid emergency opening switch (S88/10) (only )
• Trunk lid KEYLESS GO button (S62/21) (with code (889) Keyless Go)
• Left rear seat belt buckle switch (S68/5)
• Right rear seat belt buckle switch (S68/6)
• Center rear seat belt buckle switch (S68/14)
• Left rear backrest inclination switch (S54/5)
• Right rear backrest inclination switch (S54/6)
• Left rear backrest lock switch (S54/7)
• Right rear backrest lock switch (S54/8)

Discrete outputs

• Circuit 15
• Term. 15R
• Circuit 30g
• Circuit 54
• Trunk lid central locking motor (M14/7)
• Tank cap central locking motor (M14/10)
• Rear window roller sun blind motor (M24) (with code (540) Electric rear window roller blind)
• Alarm siren (H3/1)

  (with code (551) Anti-theft alarm system (ATA [EDW]))

• Left rear lamp unit (E3)
• Right rear lamp unit (E4)
• Center brake lamp (E21)
• Left rear side-marker lamp (E6/3)
• Right rear side-marker lamp (E6/4)
• Left license plate lamp (E19/1)
• Right license plate lamp (E19/2)
• Right luggage compartment lamp (E18/4)
• Trunk lid ambient lamp (E40)
• Trunk lid emergency opening switch
• Multicontour seat pneumatic pump (M40)

  (with code (409) Left/right front multicontour seats)

• Left front seat sitting surface heated cushion (R13/1)

  (with code (873) Right and left front seat heaters)

• Left front backrest heated cushion (R13/2)

  (with code (873) Right and left front seat heaters)

• Right front seat sitting surface heated cushion (R13/3)

  (with code (873) Right and left front seat heaters)

• Right front backrest heated cushion (R13/4)

  (with code (873) Right and left front seat heaters)

  Switching the following relays

  • Quiescent current cutout relay (F32k2)
  • Terminal 15 relay (N10/2kA)
  • Terminal 15R relay (1) (N10/2kB)
  • Heated rear window relay (N10/2kC)
  • Fuel pump relay (N10/2kD)
  • Tailgate windshield wiper relay (N10/2kE) (model 204.2)
  • Seat adjustment relay (N10/2kF)
  • Circuit 15R relay (2) (N10/2kG)
