Apply adhesive material to front glass cover - AR77.21-P-7010-04CW

MODEL 204.0/2/3/9 with CODE 413 (Automatic panoramic sliding sunroof)

MODEL 242, 246 with CODE 413 (Panoramic glass roof with top sliding roof)

REPAIR MATERIALS

Number	Preparation	Order number
BR00.45-Z-1135-02A	Repair kit, installing windshields, 1-component adhesive	A 221 670 81 01

Shown on model 204

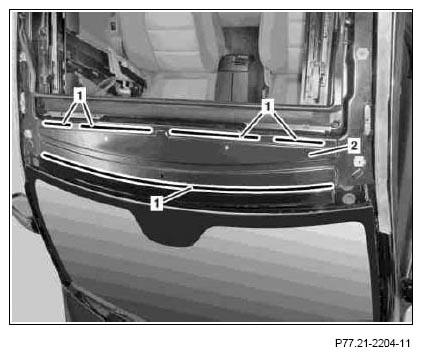

Fig 1: Applying Primer To Bonding Surfaces Where No Remaining Adhesive Is Present

Courtesy of MERCEDES-BENZ USA

Do not touch bonding surfaces (1) with bare fingers and they should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the adhesive effect may be impaired.

Guide application nozzle on bonding surfaces (1) along panoramic roof frame (2). Simultaneously apply adhesive bead uniformly with a height of approx. 14mm and a width of approx. 8mm. Cartridge gun, electric, and preheater.
NOTE: Immediately remove soiling caused by adhesive.
