Remove and install wiper arm - AR82.30-P-6100CW

MODEL 204, 207, 212, 218

Model 204.0/2, 207, 212.0/2, 218, shown on model 204.0

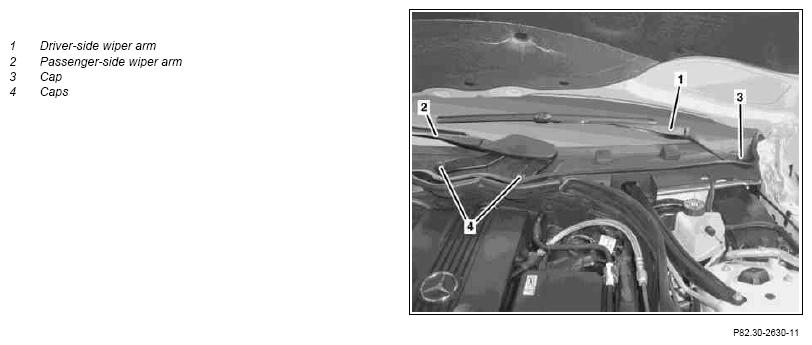

Fig 1: Identifying Driver/Passenger-Side Wiper Arm And Caps

Courtesy of MERCEDES-BENZ USA

Model 204.9

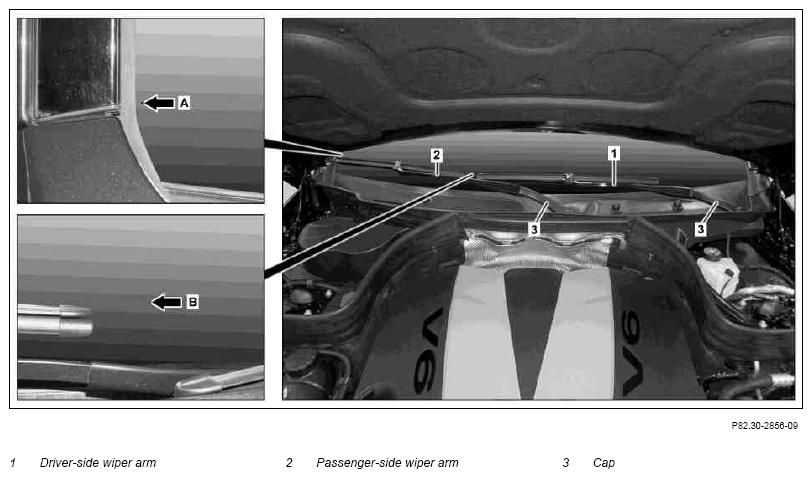

Fig 2: Identifying Driver/Passenger-Side Wiper Arm And Cap

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.  Always remove ignition key when working on windshield wiper mechanism.		AS82.30-Z-0001-01A
1	Bring wiper system into park position
2	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
3	Remove cap (3), unscrew nut and detach driver-side wiper arm (1)	Installation:  Position wiper blade with driver-side wiper arm (1) according to the following specification: Model 204, 207: Position tip of wiper blade on the assembly marking (arrow B) in the silk screen print on the windshield. Model 212, 218: Adjust so that there is a distance of approx. 60 mm between the tip of the wiper blade and the water collector.
			*BA82.30-P-1001-01M
		Puller	Fig 3
		Thrust piece M 10x1.5	Fig 4
4.1	Detach caps (4), unscrew nuts and remove passenger-side wiper arm (2)	Model 204.0/2, 207, 212, 218 Installation:  Position passenger-side wiper blade (2) onto the assembly marking (arrow B) in windshield silk-screen print.
			*BA82.30-P-1001-01M
		Puller	Fig 3
		Thrust piece M 10x1.5	Fig 4
4.2	Remove cap (3), unscrew nut and remove passenger-side wiper arm (2)	Model 204.9 Installation:  Position passenger-side wiper blade (2) onto the assembly marking (arrow A) in windshield silk-screen print.
			*BA82.30-P-1001-01M
		Puller	Fig 3
		Thrust piece M10x1.5	Fig 4
5	Install in the reverse order

Fig 3: Identifying Puller (201 589 14 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
