Remove/install trim frame on rear side window - AR67.30-P-4010CW
MODEL 204.3
| Removing | |||
| 1 | Open driver door | ||

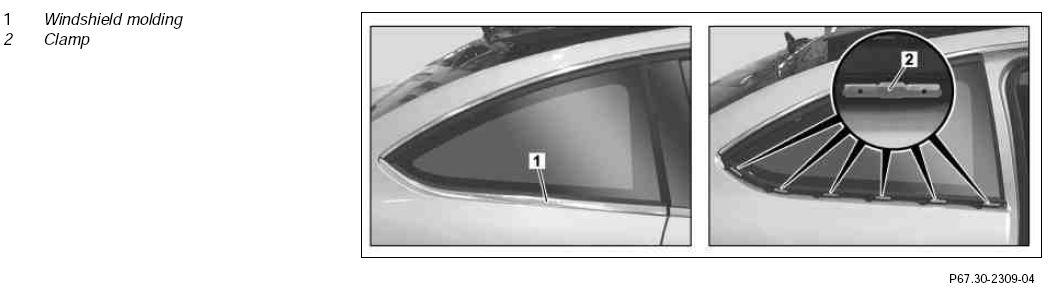

| 2 | Unclip left and right trim frame (1) from clips (2) using assembly wedge. | Do not use sharp-edged metallic tools. Otherwise the paint can be damaged. Unclip trim frame (1) starting at B-pillar toward rear. Otherwise the trim frame can bend easily and must be replaced. |
Assembly wedge: 110 589 03 59 00 |
| 3 | Remove molding (1) | ||
| Install | |||
| 4 | Install trim frame (1), align and press on | ||
| 5 | Close driver door |
