Remove/install detachable parts when replacing windshield - AR67.10-P-1050EC
MODEL 204.3, 207

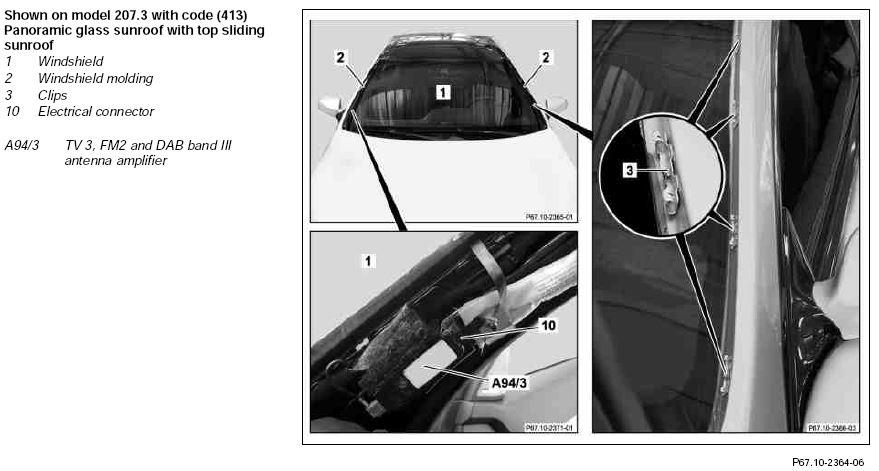

| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Completely open soft top | Model 207.4 | |
| 2 | Completely set up wind deflector | Model 207.4 with code (288) Draft stop for convertible | |
| 3.1 | Unclip left and right trim frame (2) from top to bottom and remove | Model 207.4 Model 204.3, 207.3 with code (413) Panoramic glass roof with top sliding roof Installation: Ensure that trim frame (2) is seated correctly in clips (3). |
Long wedge 115 589 03 59 00 |

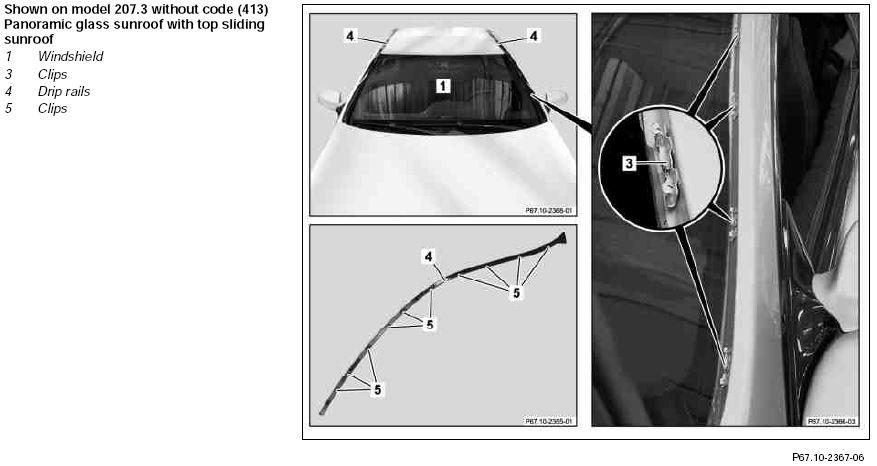

| 3.2 | Unclip left and right drip rail (4) from rear toward front and remove | Except code (413) Panoramic glass roof with top sliding roof Installation: Ensure that the corresponding drip rail (4) is correctly in the clips (3). Ensure that clips (5) are seated correctly on roof paneling. |
Long wedge 115 589 03 59 00 |
| Danger 4 |
Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. Remove driver-side wiper arm (6) and passenger-side wiper arm (7) | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A AR82.30-P-6100CW |

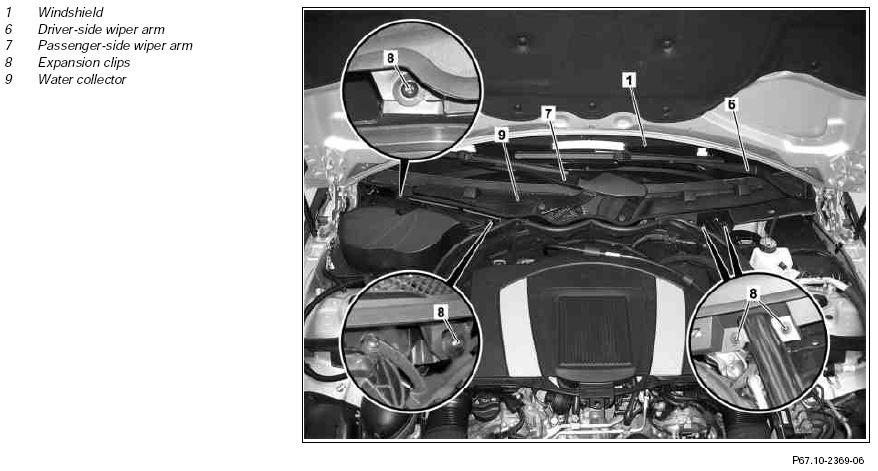

| 5 | Remove expansion clip (8) and unclip water collector (9) from windshield (1) | ||
| 6 | Place water collector (9) with connected lines to side | ||
| 7.1 | Remove paneling on A-pillar. | Model 204.3 | AR68.30-P-4050CW |
| 7.2 | Remove paneling of right A-pillar | Model 207.3 with code (863) Digital/analog TV tuner. Disconnect electrical connector (10) from TV 3 antenna amplifier (A94/3). |
- |
| 7.3 | Remove left and right A-pillar paneling | Model 207.4 Disconnect electrical connector from left and right antenna amplifier. |
|
| 8 | Completely slide rain/light sensor toward front and remove | Model 207.4 | |
| 9 | Remove inside rearview mirror | Model 207.4 | |
| 10 | Remove multifunction camera (A40/11) | With code (608) Adaptive highbeam assist | AR54.21-P-3000EW |
| 11 | Disconnect electrical connectors from rain/ light sensor (B38/2) | When installing a new windshield (1), remove rain/light sensor and install on new windshield (1). Refer to: Remove/install rain/light sensor | AR82.30-P-7800CW |
| 12 | Remove overhead control panel control unit (N70) and allow to hang down with lines connected | Model 207.4 | |
| 13 | Install in the reverse order |
