Remove/install detachable parts when replacing rear window - AR67.20-P-2100EC

MODEL 204.3, 207.3

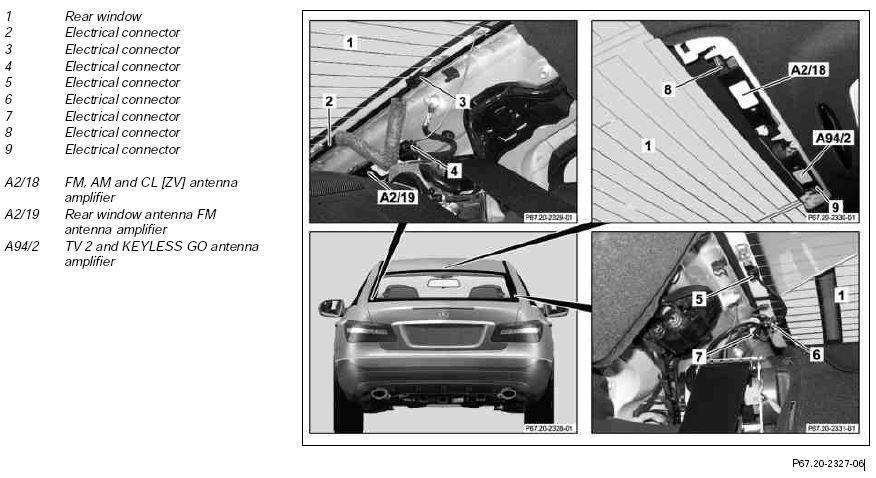

Fig 1: Identifying Rear Window Components

1. Remove paneling from left C-pillar and right C-pillar.
2. Disconnect electrical connectors (2, 3, 5, 6, 7) from rear window (1).
3. Disconnect electrical connector (4) rear window FM antenna amplifier (A2/19).
4. Unclip cover from rear headliner and remove.
5. Disconnect electrical connector (8) from FM, AM and CL antenna amplifier (A2/18).
6. Disconnect electrical connector (9) from TV 2 and KEYLESS GO antenna amplifier (A94/2). (With code (527) COMAND APS with single DVD drive (with navigation), With code (863) Digital/analog TV tuner, With code (889) Keyless Go).
7. Install in the reverse order.
