Retrofit rear entertainment with one screen - AZ82.60-P-0018CWA

MODEL 204.0## /2## /9## (except 204.077 /277) 1# except CODE (866) Preinstallation for rear entertainment system

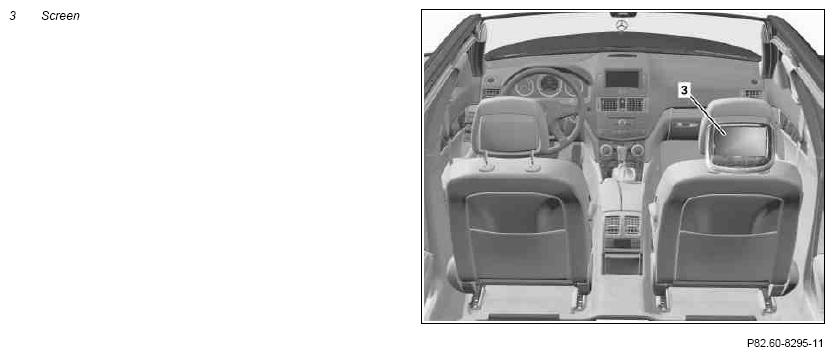

Fig 1: Identifying Rear Entertainment With Screen

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
		The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle. Beforehand, you must clarify with the customer on which side of the vehicle the screen is to be installed.
1	Detach right front seat		AR91.10-P-1000CW
2.1	Detach right front seat head restraint motor	Vehicles with  code (242) Electrically adjustable front passenger seat with memory and with  code (275) Memory package (driver seat, steering column, mirrors) Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1432CW
2.2	Move right front seat head restraint all the way to the top	Vehicles without  code (242) Electrically adjustable front passenger seat with memory and without  code (275) Memory package (driver seat, steering column, mirrors)
	Install
3	Make a cutout for bracket of screen (3)		AZ82.60-P-0015-07CWA
4	Retrofit rear entertainment wiring harness	Make sure that the wiring harnesses are not damaged by chafing, pinching or crushing, as otherwise the corresponding wiring harness may have to be replaced.
		Vehicles with  code (242) Electrically adjustable front passenger seat with memory and with  code (275) Memory package (driver seat, steering column, mirrors)	AZ82.60-P-0015-02CYA
		Vehicles without  code (242) Electrically adjustable front passenger seat with memory and without  code (275) Memory package (driver seat, steering column, mirrors)	AZ82.60-P-0015-02CXA
5	Retrofit bracket for screen (3) of rear entertainment		AZ82.60-P-0015-04CWA
			*BA82.60-P-1001-01A
6	Retrofit rear entertainment control unit		AZ82.60-P-0015-01CWA
7	Retrofit screen (3) of rear entertainment		AZ82.60-P-0015-03CWA
8	Install remaining parts
9	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
10	Perform function test	See rear entertainment operating instructions.
11	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Rear entertainment with one screen retrofitted as per AZ82.60-P-0018CWA " under field organization texts to design group 82.
