Retrofit rear entertainment screen bracket - AZ82.60-P-0015-04CWA

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

Insert silver bracket (15) into opening at backrest.
Insert black bracket (16) into opening at backrest.
Screw bracket (16) to bracket (15) using screw/bolt (17).
Bracket (16) and bracket (15) are interlocked with the cross strut of the seat by means of the threaded connection. Observe tightening torque.

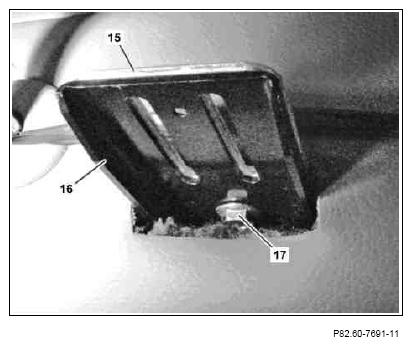

Fig 1: Identifying Silver And Black Bracket And Screw/Bolt
Courtesy of MERCEDES-BENZ USA
Make a cutout for screw/bolt (18) at plastic reinforcement (20) using side cutting pliers.
Tighten bracket with screw/bolt (18) at crossmember of seat.
Use suitable washer and nut from delivery contents. Expose seat cover.

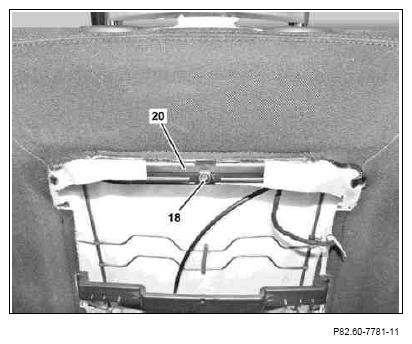

Fig 2: Identifying Screw/Bolt On Plastic Reinforcement
