Retrofit rear entertainment screen bracket - AZ82.60-P-0015-04CW

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

Insert silver bracket (15) into opening.
Insert black bracket (16) into opening.
Screw bracket (16) to bracket (15) using screw/bolt (17).
Bracket (16) and bracket (15) are interlocked with the cross strut of the seat by means of the threaded connection. Observe tightening torque.

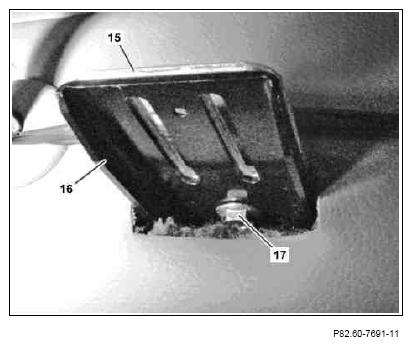

Fig 1: Identifying Silver And Black Bracket And Screw/Bolt
Courtesy of MERCEDES-BENZ USA
Make a cutout for screw/bolt (18) at plastic reinforcement (20) using side cutting pliers.
Tighten bracket with screw/bolt (18) at crossmember of seat.
Use suitable washer and nut from delivery contents. Expose seat cover.

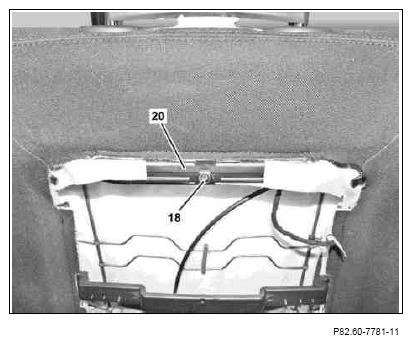

Fig 2: Identifying Screw/Bolt On Plastic Reinforcement
