Retrofit Mercedes-Benz InCar Internet connecting cable - AZ82.85-P-0005-05CW

Open lid of glove box (22).
Pull insulating felt (23) in cross-hatched area to one side.

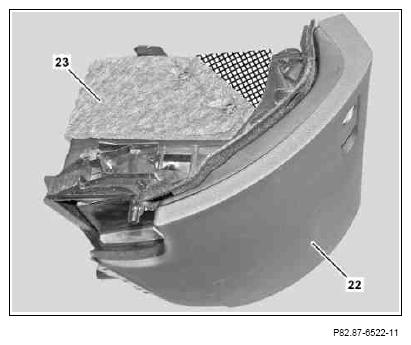

Fig 1: Identifying Area Of Insulating Felt
Courtesy of MERCEDES-BENZ USA

3.1 Drill hole (arrow A) with a diameter of 19 mm, as shown, on the glove box (22).
Cordless drill/driver

In vehicles without code (518) Media Interface.
3.2 Drill holes (arrows A and B) with a diameter of 19 mm, as shown, on the glove box (22). Cordless drill/driver
In vehicles with code (518) Media Interface. Note breakthrough for Media Interface electrical connector (broken line).

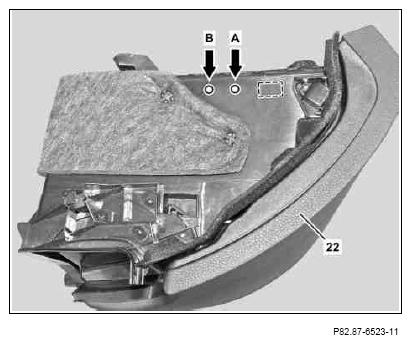

Fig 2: Identifying Drilling Holes On Glove Box
Courtesy of MERCEDES-BENZ USA
4.1 Place InCar Internet connecting cable (2) into glove box (22) and route outwards through the previously made hole.
On vehicles without code (518) Media interface.
4.2 Place InCar Internet connecting cable (2) and InCar Internet adapter line (4) into the glove box (22) and route outwards through the previously made hole.
In vehicles with code (518) Media Interface.

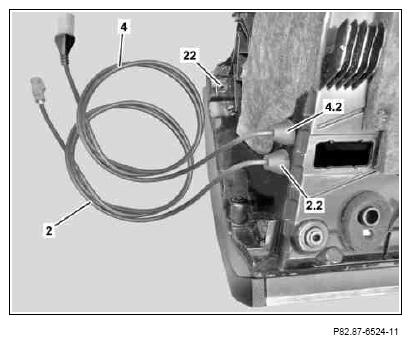

Fig 3: Identifying Incar Internet Connecting Cable And Adapter Line And Glove Box
Courtesy of MERCEDES-BENZ USA
5.1 Insert grommet (2.2) into hole.
On vehicles without code (518) Media interface.
5.2 Insert grommets (2.2 and 4.2) into the hole.
In vehicles with code (518) Media Interface.
6.1 Route InCar Internet connecting cable (2) under the insulating felt (23) to the rear of the glove box (22).
On vehicles without code (518) Media interface.
6.2 Route InCar Internet connecting cable (2) and InCar Internet adapter line (4) under the insulating felt (23) to the rear of the glove box (22).
In vehicles with code (518) Media Interface.

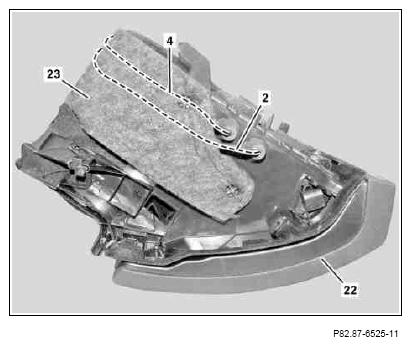

Fig 4: Identifying Incar Internet Connecting Cable And Adapter Line And Glove Box
Courtesy of MERCEDES-BENZ USA
