Make cutout for bracket - AZ82.60-P-0015-07CW

The following work procedure is shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

1. Cut out cutting template (11) along broken line.

   The cutting template (11) is included in the installation kit.

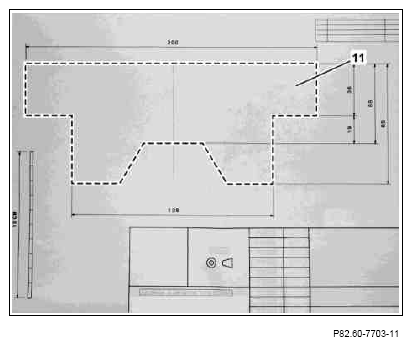

   Fig 1: Identifying Cutting Template Dimensions

   Courtesy of MERCEDES-BENZ USA
2. Apply cutting template (11) to head restraint and mark separating point (broken line).
3. Remove cutting template (11).

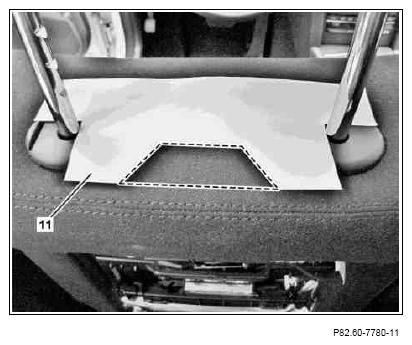

   Fig 2: Identifying Cutting Template

   Courtesy of MERCEDES-BENZ USA
4. Cut seat cover using a knife and fix shackle (12) in place using adhesive tape (13).

   Be very careful while cutting, otherwise the seat cover may be damaged.

5. Work out and remove foam core.

   Be very careful while cutting, otherwise the seat cover may be damaged.

6. Work out seat core until cross strut (14) of seat is accessible.

   Be very careful while cutting, otherwise the seat cover may be damaged.

7. Fold shackle (12) into opening.

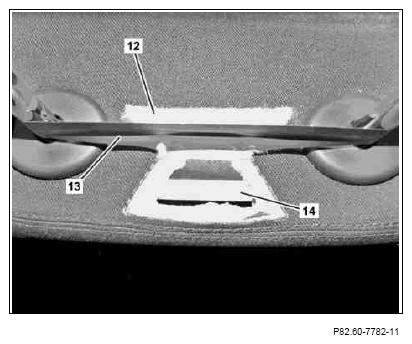

   Fig 3: Fixing Shackle Using Adhesive Tape

   Courtesy of MERCEDES-BENZ USA
