Retrofit phone bracket - AN82.70-P-0001-02CW

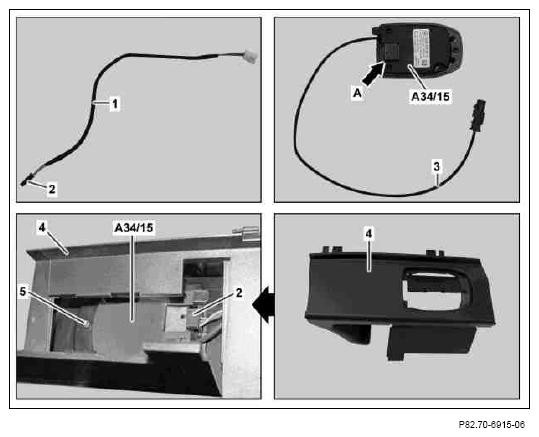

Connect the black 3-pin coupling (2) of the wiring harness (1) to the mobile phone cradle (A34/15) (arrow A).
Clip mobile phone cradle (A34/15) into holder (4).
The antenna line (3) and the wiring harness (1) must be routed to the rear out of the bracket (4).
Tighten mobile phone cradle (A34/15) using screw/bolt (5) on bracket (4).

Fig 1: Identifying Mobile Phone Cradle
Courtesy of MERCEDES-BENZ USA

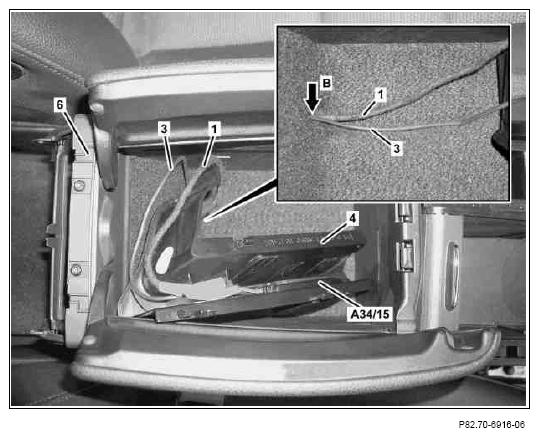

Place bracket (4) with mobile phone cradle (A34/15) into stowage compartment of center console (6).
Route antenna line (3) and wiring harness (1) downward through opening (arrow B) in center console (6).

Fig 2: Identifying Opening For Antenna Line And Wiring Harness
Courtesy of MERCEDES-BENZ USA

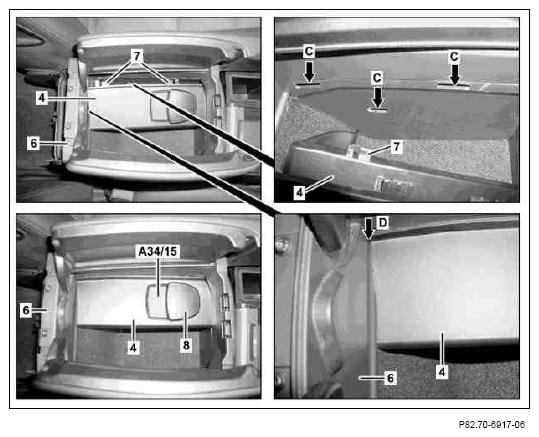

Position bracket (4) in center console (6) and clip catch hook (7) into cutouts (arrows C) in center console (6).
The bracket (4) must be positioned in the rear area (arrow D) of the center console (6), as shown.
Clip covering (8) onto mobile phone cradle (A34/15).

Fig 3: Identifying Cutouts in Rear Area Of Center Console
Courtesy of MERCEDES-BENZ USA

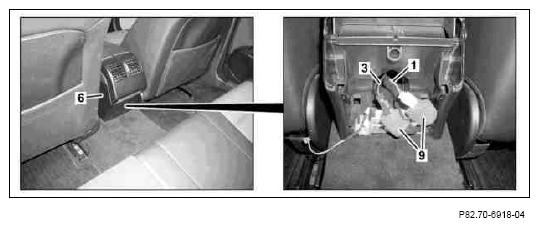

Route antenna line (3) and wiring harness (1) toward rear and out of center console (6).
Connect red plug of antenna line (3) with red coupling of previously installed antenna line and slide foam sheath (9) over connector.
Connect white 3-pin plug of wiring harness (1) to white 3-pin coupling of previously installed power supply wiring harness and slide foam sheath (9) over the connector.

Fig 4: Identifying Antenna Line, Wiring Harness, Center Console And Foam Material Sheath
Courtesy of MERCEDES-BENZ USA
