Retrofit air ducts for COMAND additional fan - AN82.85-P-0005-03EC

Additional ventilation for COMAND controller unit

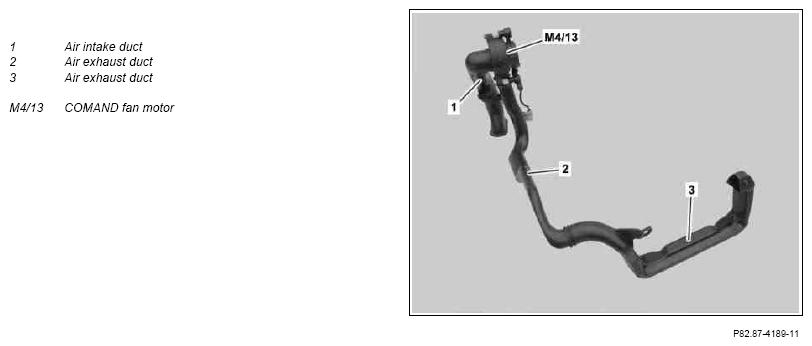

Fig 1: Identifying Air Intake Duct, Air Exhaust Duct And COMAND Fan Motor

Courtesy of MERCEDES-BENZ USA

Place instrument panel (4) onto top side.
Unclip cable duct (5) from support slot on COMAND controller unit.
Unclip holder (7) for wiring harness (6) from instrument panel (4)

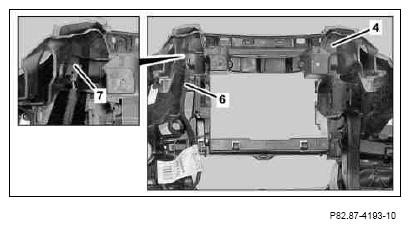

Fig 2: Identifying Instrument Panel, Cable Duct And Holder
Courtesy of MERCEDES-BENZ USA
Position air exhaust duct (3), as shown, on the instrument panel (4).
Clip air exhaust duct (3) into holders (arrows A) on instrument panel (4).
Clip cable duct (5) into support slot on COMAND controller unit.
Clip holder (3.1) for air exhaust duct (3) into support (8) on support slot of COMAND controller unit.

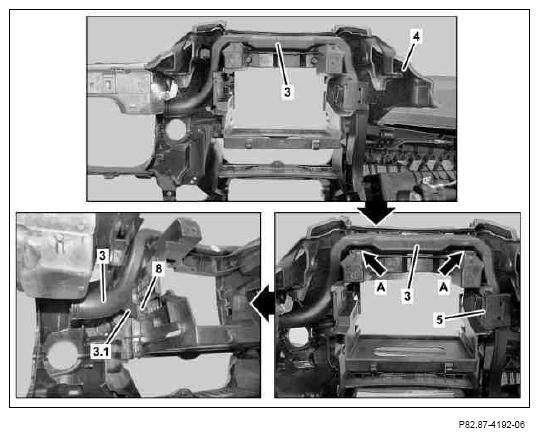

Fig 3: Identifying Air Exhaust Duct, Instrument Panel, Cable Duct And Supports
Courtesy of MERCEDES-BENZ USA
Clip holder (7) for wiring harness (6) into instrument panel (4)

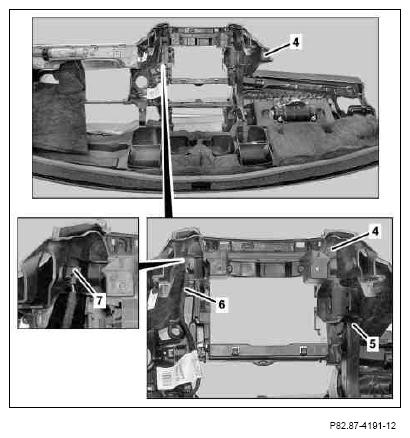

Fig 4: Identifying Clip Holder, Wiring Harness And Instrument Panel
Courtesy of MERCEDES-BENZ USA
Install air exhaust duct (2), as shown, between instrument panel support (9) and steering column tube (8).
Connect air exhaust duct (2) to opening (arrow C) on COMAND fan motor (M4/13).
Install air intake duct (1), as shown, between steering column tube (8) and air exhaust duct (2).
Connect air intake duct (1) to opening (arrow B) on COMAND fan motor (M4/13).

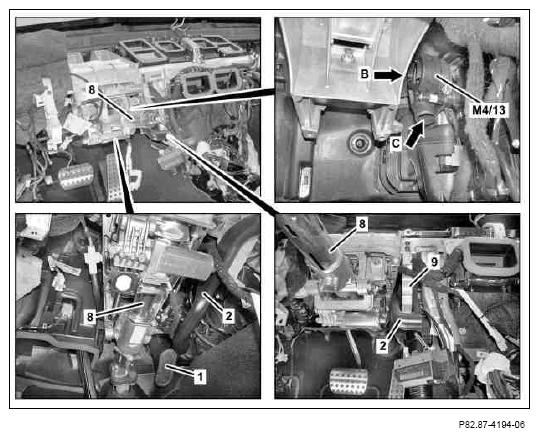

Fig 5: Identifying Air Exhaust And Air Intake Duct Opening
Courtesy of MERCEDES-BENZ USA
Align air intake duct (1) and air exhaust duct (2), and screw into place using the bolt (10) included in the package contents.
When installing the instrument panel, the air exhaust duct (2) must be connected to the air exhaust duct, which is located in the instrument panel.

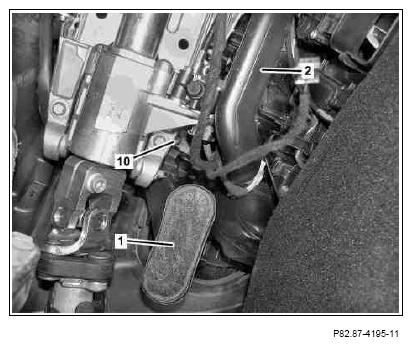

Fig 6: Identifying Air Intake Duct, Air Exhaust Duct And Bolt
