Remove/install flywheel / drive plate engine 272 - AR03.30-P-8001V

ENGINE 272, 271 in MODEL 171

Shown on engine 271.944 with manual transmission

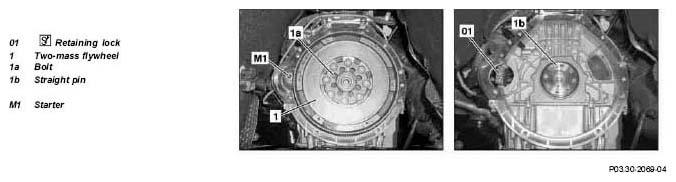

Fig 1: Identifying Flywheel / Drive Plate - Shown On Engine 271.944 With Manual Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on vehicle with automatic transmission

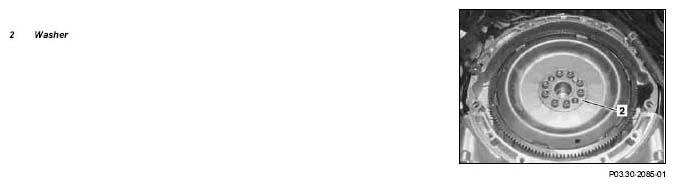

Fig 2: Identifying Washer - Shown On Vehicle With Automatic Transmission

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer.	-
1	Raise vehicle with lifting platform		AR00.60-P-1000V
2	Remove automatic transmission together with torque converter	Vehicles with automatic transmission
		-	-
		Engine 272	AR27.10-P-0500V
3	Remove clutch	Vehicles with manual transmission	AR25.10-P-0050V
4	Remove starter (M1)	-	-
		Engine 272	AR15.30-P-7100VA
5	Install retaining lock (01) for crankshaft /starter ring gear	-	-
		Engine 272	AR03.30-P-5000VA
6.1	Mark the front side of the washer (2)	Vehicles with automatic transmission Installation: The washer (2) must be installed back into the same position as bulging caused by the bolts can generate an incorrect torque.
7	Unscrew bolts (1a) on two-mass flywheel (1) or clutch plate	Installation: If an angle tightener is not available, the bolts can be tightened further by the specified angle in a single operation using a socket wrench and breaker bar. To avoid any angle errors, a bending rod torque wrench must not be used for tightening according to angle degrees. This falsifies the tightening torque. Engine 271:
		Bolt for flywheel or two-mass flywheel / driven plate to crankshaft Engine 272:	*BA03.30-P-1003-01I
		Bolt of starter ring gear/ drive plate to crankshaft	*BA03.30-P-1002-01M
		Bolt, two-mass flywheel to crankshaft	*BA03.30-P-1003-01M
8.1	Remove washer (2)	Vehicles with automatic transmission
9.1	Remove two-mass flywheel (1)	Vehicles with manual transmission Installation: The straight pin (1b) determines the installation position of the two-mass flywheel (1).
9.2	Remove drive plate	Vehicles with automatic transmission Installation: The straight pin (1b) determines the installation position of the drive plate.
	Checking
10.1	Check threaded unions in drive plate	Automatic transmission 722.906 Check for damage and interference sit and replace drive plate where necessary.
11	Install in the reverse order
12.1	Carry out the first initialization and then sensor rotor adaptation with STAR DIAGNOSIS	Only when replacing. Menu navigation: Engine control unit Adaptations Learning processes
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 271
BA03.30-P-1003-01I	Bolt for flywheel or two-mass flywheel / driven plate to crankshaft	Stage 1	Nm	45
BA03.30-P-1003-01I		Stage 2	∠°	90

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 272
BA03.30-P-1002-01M	Bolt of starter ring gear/drive plate to crankshaft	Stage 1	Nm	20
		Stage 2	Nm	45
		Stage 3	∠°	90
BA03.30-P-1003-01M	Bolt for flywheel or two-mass flywheel /driven plate to crankshaft	Stage 1	Nm	45
BA03.30-P-1003-01M		Stage 2	∠°	90
