Remove/install rear engine mount - AR22.10-P-1160VA

ENGINE 113.989 in MODEL 171.473

ENGINE 272.942 in MODEL 171.454

ENGINE 272.963 in MODEL 171.456

Shown on model 171.456

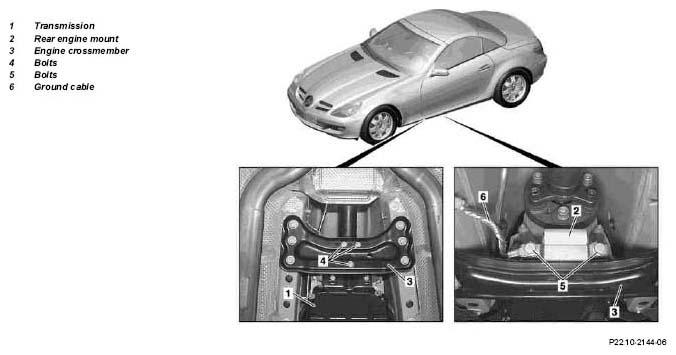

Fig 1: Identifying Rear Engine Mount Components (Shown On Model 171.456)

	Remove/install
	Notes on self-locking nuts and bolts		-
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	-
1	Raise vehicle.		AR00.60-P-1000V
2	Detach lower engine compartment paneling		AR61.20-P-1105V
3	Support transmission (1) with transmission lifter and transmission platform and lift	Only raise transmission (1) slightly until the rear engine mount (2) is relieved.
		Telescoping, transmission lifter	*WE58.40-Z-1030-11A
		Passenger car transmission platform	*WE58.40-Z-1018-11A
4	Remove bolts (4) and detach rear engine mount (2) from engine crossmember (3)	Engine 113	*BA22.10-P-1005-01S
		Engine 272	*BA22.10-P-1001-01O
5	Remove bolts (5) and detach rear engine mount (2) from transmission (1)	Engine 113	*BA22.10-P-1004-01S
		Engine 272	*BA22.10-P-1008-01O
6	Take out rear engine mount (2)	Installation: Note installation position of rear engine mount (2) and pay attention to correct assembly of the ground line (6).
7	Install in the reverse order

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 113.989 in model 171
BA22.10-P-1004-01S	Bolt, rear engine mount to transmission	Nm	50
BA22.10-P-1005-01S	Bolt, rear engine mount to rear engine crossmember	Nm	28

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 272 in model 171
BA22.10-P-1001-01O	Bolt, rear engine mount to rear engine crossmember	Nm	28
BA22.10-P-1008-01O	Bolt, rear engine mount to transmission	Nm	50

WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A	Transmission platform
WE58.40-Z-1030-11A	Transmission jack
