Remove/install battery - AR54.10-P-0005V
MODEL 171.4
| Remove/install | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | - | |

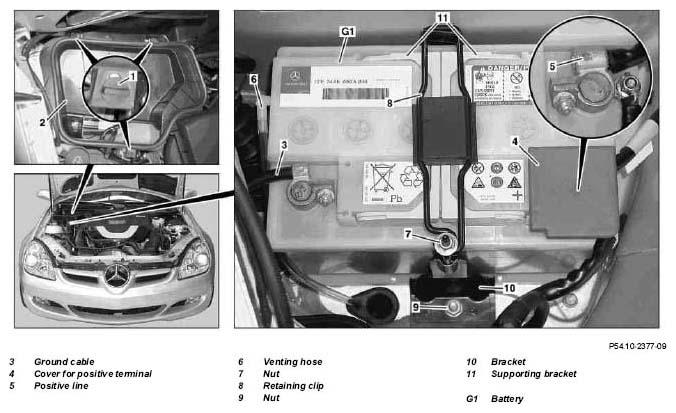

| 1 | Disconnect ground line (3) from the battery (G1) | AR54.10-P-0003V | |
| 2 | Remove positive terminal cover (4) | ||
| 3 | Disconnect positive line (5) from battery (G1) | ||
| 4 | Pull vent hose (6) off the battery (G1) | ||
| 5 | Unscrew nut (7) and remove the retaining bracket (8) | ||
| 6 | Unscrew nut (9) and remove bracket (10) | ||
| 7 | Remove battery (G1) from the engine compartment | ||
| 8 | Install in the reverse order | ||
| 9 | Perform basic programming | AR00.19-P-0200V |
