Batteries - check fluid level, correct - AP54.10-P-5410V
MODEL 171
| Remove/Install | |||
|---|---|---|---|
| Risk of explosion caused by explosive gas. Risk of poisoning and caustic burns caused by swallowing battery electrolyte. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers. | - | |
| 1 | Open engine hood and raise to vertical position | ||
| Opening engine hood, moving to upright position and closing | AR88.40-P-1000V | ||

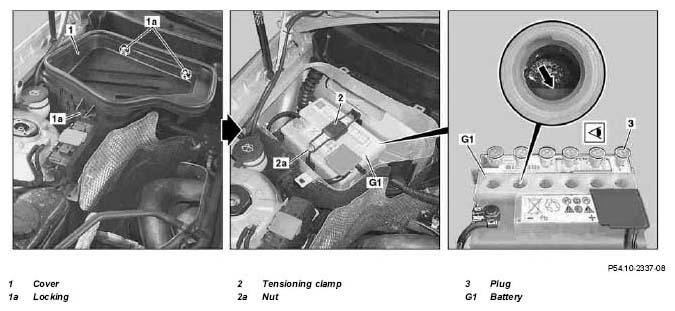

| 2 | Open locks (1a) and remove cover (1) | ||
| 3 | Unscrew nut (2a) and remove retaining clip (2) | ||
| 4 | Unscrew plugs (3) of battery cells from the battery (G1) | ||
| Check | |||
| 5 | Check fluid level in the cells of the battery (G1) | Only use distilled water for refilling. |
|
| 6 | Install in the reverse order |
