Install partition wall on upper firewall - AR62.20-P-1221-03V

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-01A	Electrode miller
WH58.30-Z-1003-02A	Clamping pliers
WH58.30-Z-1038-02A	Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)
WH58.30-Z-1003-29A	Hand riveter

WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A	Inert gas welder
WE58.40-Z-1002-02A	Spot welder
WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner
WE58.40-Z-1003-14A	Blind rivet tool

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant	A 001 989 63 20
BR00.45-Z-1018-07A	Primer spray can with repair kit	A 000 986 32 50
BR00.45-Z-1001-13A	Rivet	A 003 990 35 97

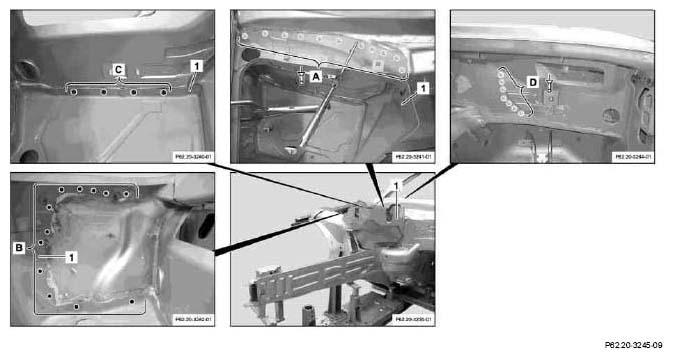

Fig 1: Identifying Areas For Drilling Hole On Partition Wall

Courtesy of MERCEDES-BENZ USA

1. Install partition wall (1), fit and fasten with clamping pliers.
2. Drill dia. 6.5 mm hole in partition wall (1) (areas A and D).
3. Remove partition wall (1)
4. Deburr rivet holes on both sides
5. Apply primer to inside of rivet connections
6. Apply MB body sealant.
7. Install partition wall (1), fit and fasten with manual temporary fastener
8. Fasten partition wall (1) with clamping pliers

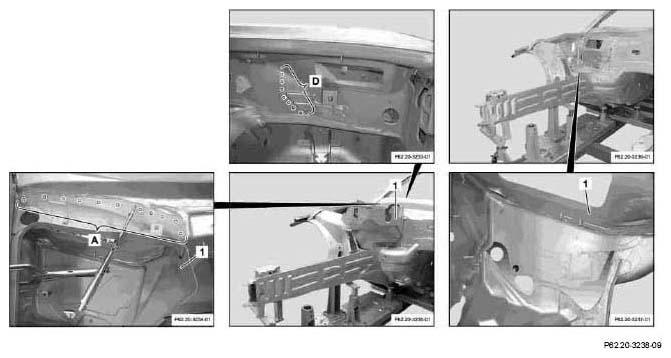

   Fig 2: Identifying Riveting And Welding Areas On Portion Wall

   Courtesy of MERCEDES-BENZ USA
9. Rivet partition wall (1) with Polygrip flat/round head rivet, 6.4 x 14 (areas A and D).
10. Weld in partition wall (1) with (area B).
11. Weld in partition wall (1) with (area C).
12. Clean welds with round wire brush.
13. Remove grinding and drilling chips with wet/dry vacuum cleaner.
