Removing and installing washer fluid reservoir of windshield washer system - AR82.35-P-6000V
MODELS 171.4

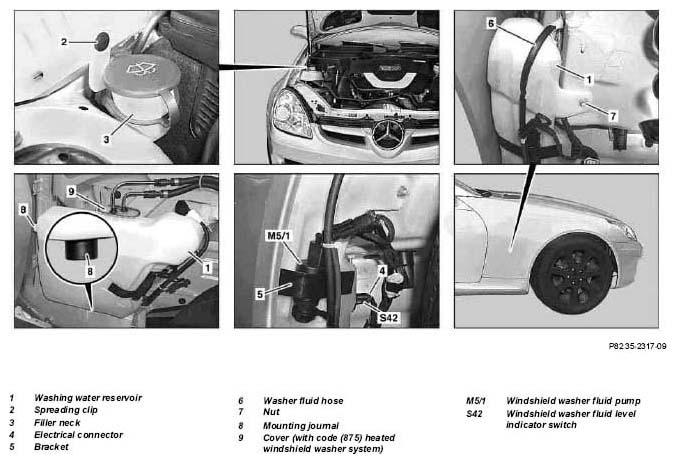

Shown on vehicle with code (875) heated windshield washer system
| Remove/Install | |||
|---|---|---|---|
| 1 | Open engine hood and move to upright position | AR88.40-P-1000V | |
| 2 | Remove spreading clip (2). | ||
| 3 | Pull filler neck (3) up and out of washer fluid reservoir (1). | ||
| 4 | Dismount right front wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050V | ||
| 5 | Remove rear fender liner in front fender | AR88.10-P-1300V | |
| 6 | Unplug electrical connector (4) from windshield washer fluid level indicator switch (S42) | ||
| 7 | Unclip one side of the bracket (5) for the window washer fluid pump (M5/1) from the washer fluid reservoir (1) | ||
| 8 | Unclip washer fluid hose (6) from washer fluid reservoir (1) | ||
| 9 | Unclip windshield washer fluid pump (M5/1) from washer fluid reservoir (1) using mounting wedge and put aside | ||
| Figure | |||
| 10 | Unscrew nuts (7) | ||
| 11.1 | Remove washer fluid reservoir (1) far enough out of front fender to make cover (9) accessible | In vehicles with code (875) heated windshield washer system |
|
| 12.1 | Unclip cover (9) from washer fluid reservoir (1) using mounting wedge | In vehicles with code (875) heated windshield washer system | |
| Figure | |||
| 13 | Remove washer fluid reservoir (1) out of front fender | ||
| 14 | Install in the reverse order | ||
| 15 | Fill washer fluid reservoir (1) | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210N |
