Remove/install light switch module - AR54.25-P-3270V

MODEL 171.4

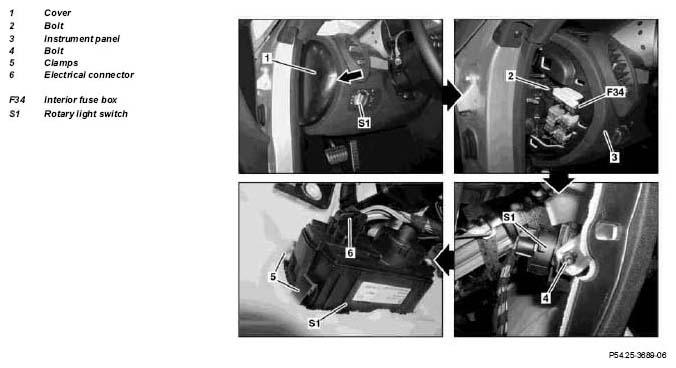

Fig 1: Identifying Light Switch Module Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

5.7.06

"Disconnect/connect battery ground line" removed

	Remove/install
1	Unclip cover (1) on the recess (arrow) and remove		Fig 2
		Installation:  Pay attention to correct seat of cover (1) in the instrument panel (3).
2	Unscrew bolt (2)
3	Remove interior fuse box (F34) from carrier of instrument panel (3) and hang up to one side
4	Unscrew bolt (4)
5	Remove rotary light switch (S1) from instrument panel (3)	Unlock clips (5) on the back of the rotary light switch (S1) through the opening in the instrument panel (3)
6	Release and disconnect electrical connector (6).
7	Install in the reverse order
8	Carry out function check of rotary light switch (S1)

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
