Remove/install 12 Volt socket - AR54.10-P-1000TX

MODEL 171

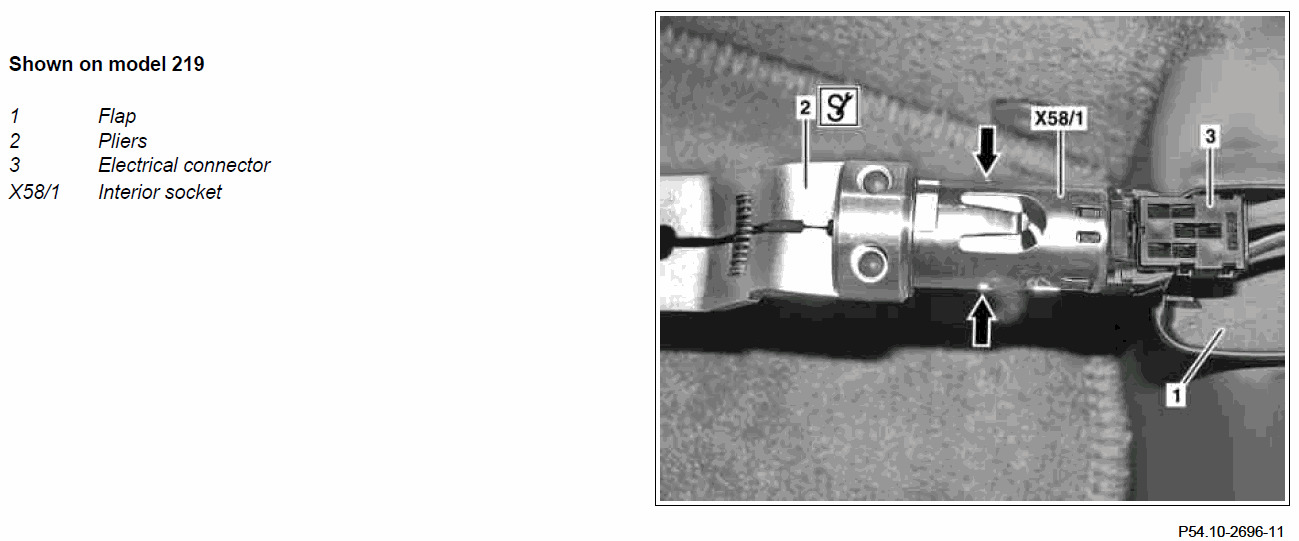

Shown on model 219

Fig 1: Removing/Installing 12 Volt Socket

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Open flap (1) of interior socket (X58/1)
3	Unlock the interior socket (X58/1) with the pliers (2) and pull out until the electrical connector (3) is accessible	The pins of the pliers (2) must engage in the housing cutouts for the interior socket X58/1) (arrows). Pliers 169589003700
4	Detach electrical connector (3) and remove interior socket (X58/1)	Installation: Check for correct installation of interior socket (X58/1).
5	Install in the reverse order
