Warning display, location / task / design / function - GF54.65-P-4104SL
MODEL 171.4 with CODE (220a) Parktronic System (PTS) rear PTS warning indicator

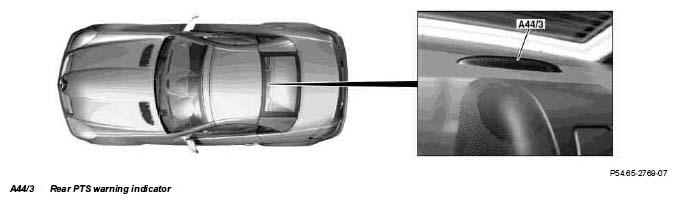

| Warning display, location | The rear PTS warning indicator (A44/3) is located centrally above the rear wall stowage compartment. | |
| Warning display, task | To display the distance to an obstacle in the rear monitoring range. When the minimum distance is not reached, expenditure of an acoustic signal. |
|
| Warning display, design | The rear PTS warning indicator (A44/3) consists of 6 yellow and 2 red LEDs, the sound source and microprocessor which implements the bidirectional data exchange with the Parktronic control unit. | |
| Warning display, function | GF54.65-P-4104-01SK |
