Warning display, location / task / design / function - GF54.65-P-4104SK: Notes
MODEL /171.4 ////with CODE (220a) Parktronic System (PTS) center instrument panel PTS warning indicator

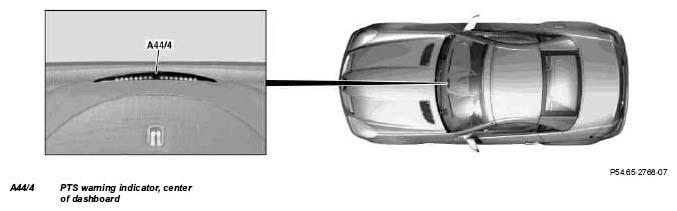

| Warning display, location | The center instrument panel PTS warning indicator (A44/4) is located in the center of the instrument panel. | |
| Warning display, task | Displays of the distance to an obstacle in the front monitoring range. If the minimum distance is not reached, output of an acoustic signal. |
|
| Warning display, design | The center instrument panel PTS warning indicator (A44/4) consists of 6 yellow and 2 red LEDs, the sound source and microprocessor which implements the bidirectional data exchange with the Parktronic control unit. | |
| Warning display, function | GF54.65-P-4104-01SK |
