Reversing, function - GF54.65-P-4001SK
MODEL 171.4 with CODE (220a) Parktronic System (PTS)
Function requirements
- Circuit 15 ON
- Parking brake not operated
- Speed <16 km/h
- The "reverse gear engaged" signal is applied
- Selector lever in position "N" (only with transmission 722)
Monitoring range

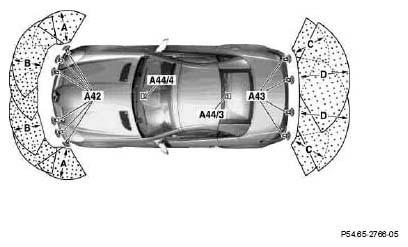

When driving forwards the area C and D behind the vehicle and in addition the area A and B in front of the vehicle is monitored.
The front bumper PTS sensor unit (A42) detects obstacles:
- In the range A (15 cm to 60 cm)
- in the area B (20 cm to 100 cm)
The rear bumper PTS sensor unit (A43) detects obstacles:
- in the area C (20 cm to 80 cm)
- in the area D (20 cm to 120 cm)
Warning indicator
The Parktronic control unit actuates the center instrument panel PTS
warning indicator (A44/4) or the rear PTS
warning indicator (A44/3).
Depending on the distance to the obstacle, visual and acoustic warning information is given out.
For a better distinction as to whether an obstacle is located in front of or behind the vehicle, the acoustic warning message is output at different frequencies.
The center instrument panel PTS warning indicator (A44/4) emits the warning chime with a higher frequency
| PTS control unit, location / task | GF54.65-P-4100SK | |
| Sensors, location/task/function | GF54.65-P-4102SK | |
| Warning display, location / task / design / function | PTS warning display, center of instrument panel | GF54.65-P-4104SK |
| PTS warning display, rear | GF54.65-P-4104SL |
